63A Tuya WiFi Smart Circuit Breaker Switch Energy Meter Metering Timer Relay Device With Voltage Current and Leakage Protection
63A Tuya WiFi Smart Circuit Breaker Switch Energy Meter Metering Timer Relay Device With Voltage Current and Leakage Protection
🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.
100% Encrypted Payment | 📦 Insured Shipping
SPECIFICATIONS

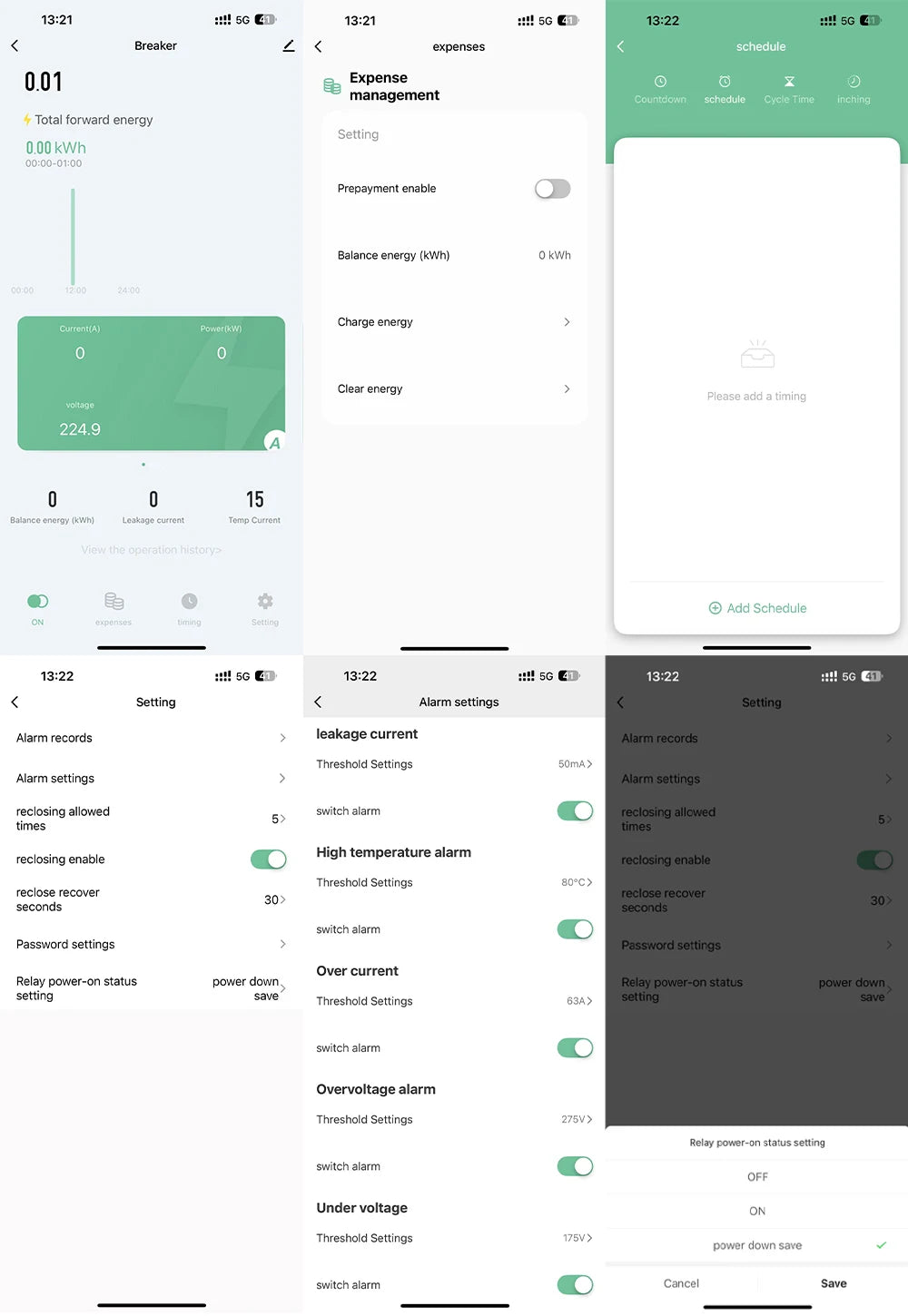

App: Tuya/Smart Life
Brand Name: EARU
Certification: CE
Choice: yes
Current Adjustable Range: 1-63A (Adjustable)
Does it include a Battery?: No
Does it include wireless functionality?: Yes
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Earth Leakage Adjustable Range: 10-99mA (This feature can be turned off)
Energy Consumption Record Range: 0-99999.9 KW/h

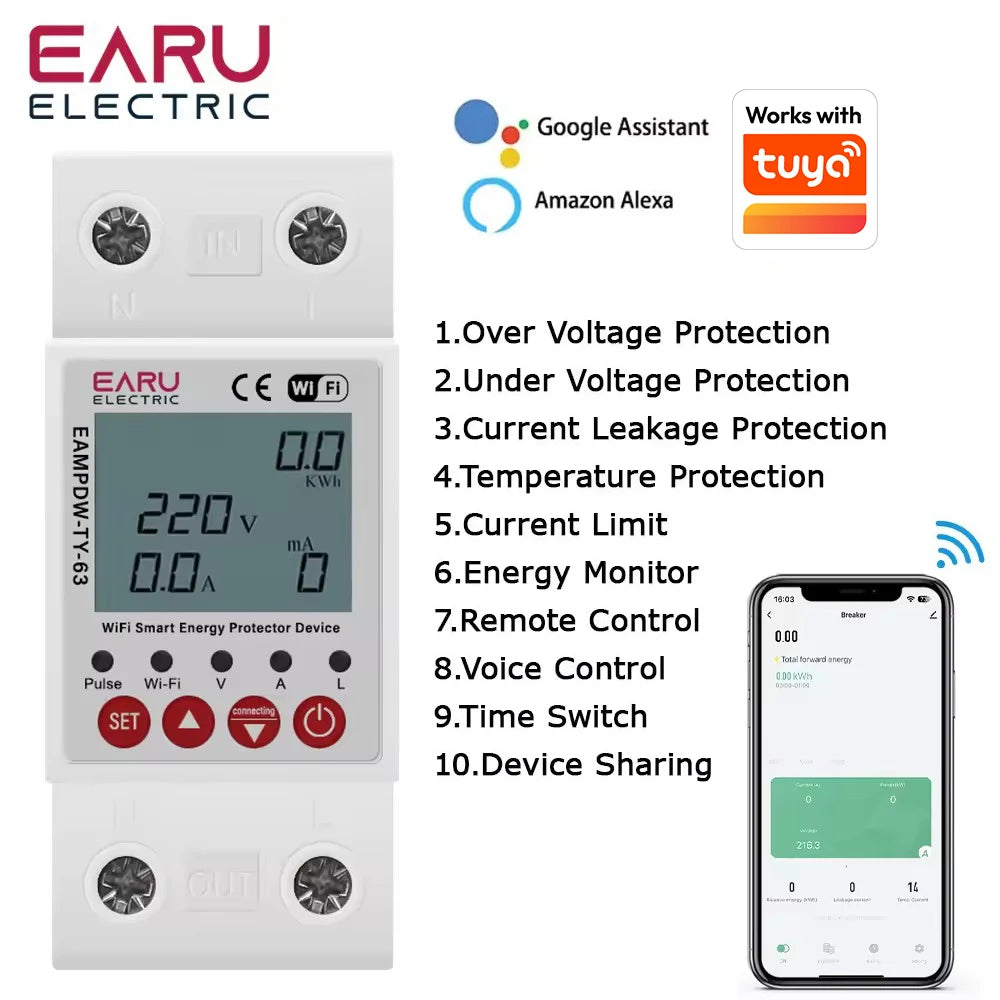

Function 1: Over Voltage Protection
Function 2: Under Voltage Protection
Function 3: Current Limiter
Function 4: Earth Current Leakage Protection
Function 5: Energy Consumption Record
Function 6: Remote Control ON / OFF
High-concerned chemical: none
Is Smart Device: Yes
Model 2: RCCB
Model 3: RCBO
Model 4: RCD

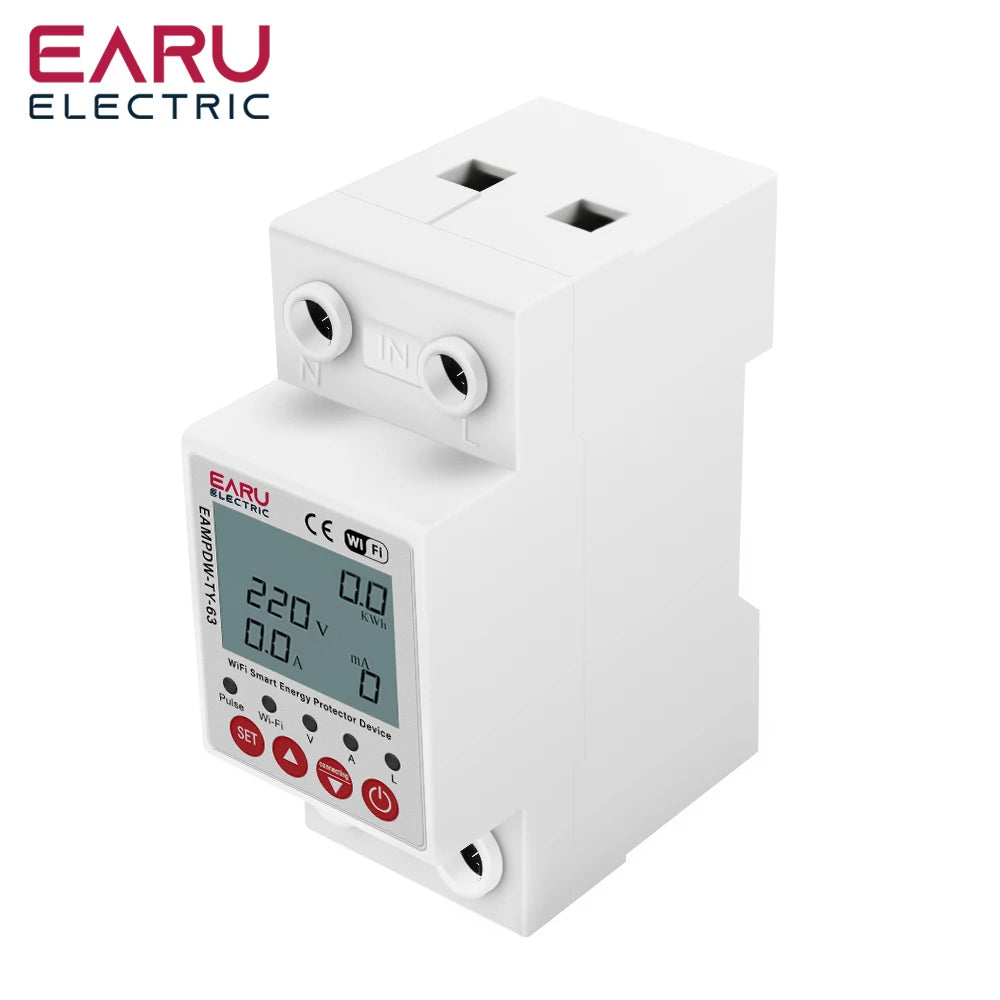

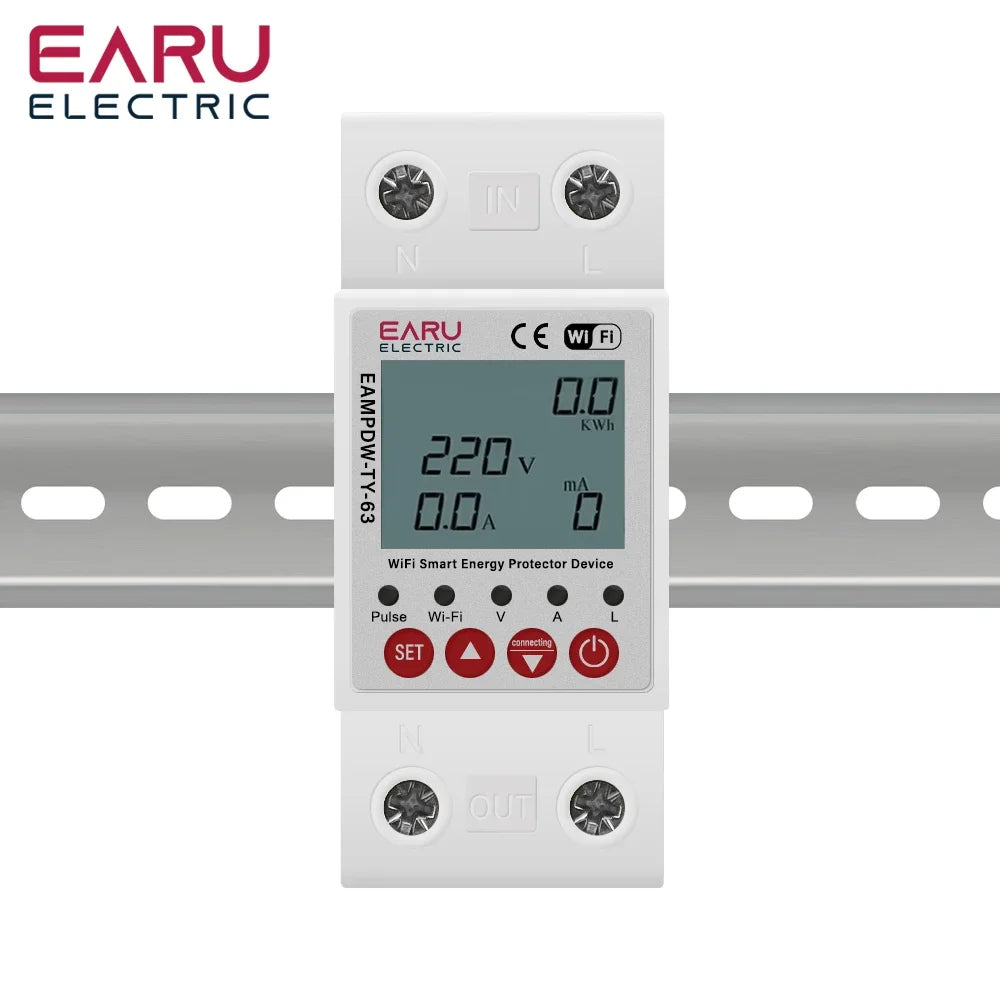

Model Number: EAMPDW-TY-63
Origin: Mainland China
Over Voltage Adjustable Range: 120V-300V (Adjustable)
Rated Frequency: 50/60Hz
Rated Voltage: 220V,AC110/230V
Type: Earth Leakage,Circuit breaker
Under Voltage Adjustable Range: 80-210V (Adjustable)
is_customized: Yes
semi_Choice: yes
We are factory, we can provide OEM service, if you need product with your logo, please contact us!

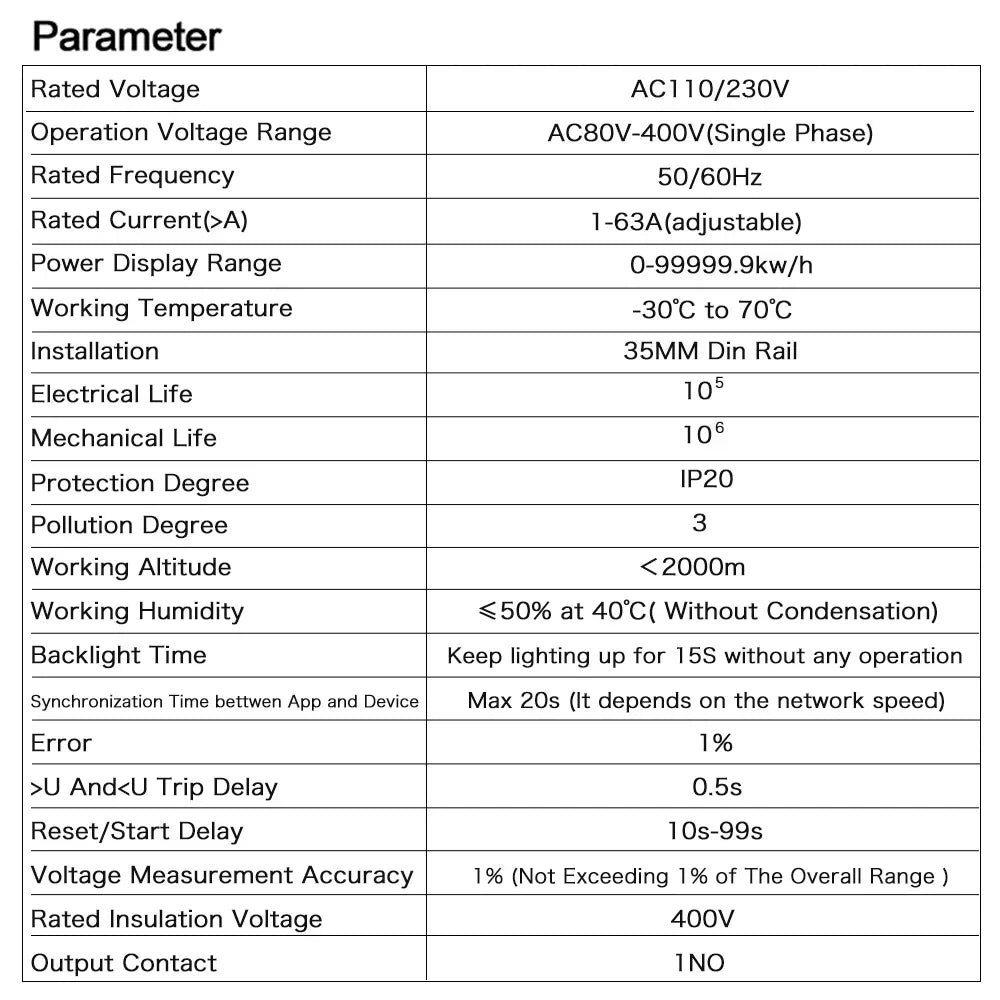

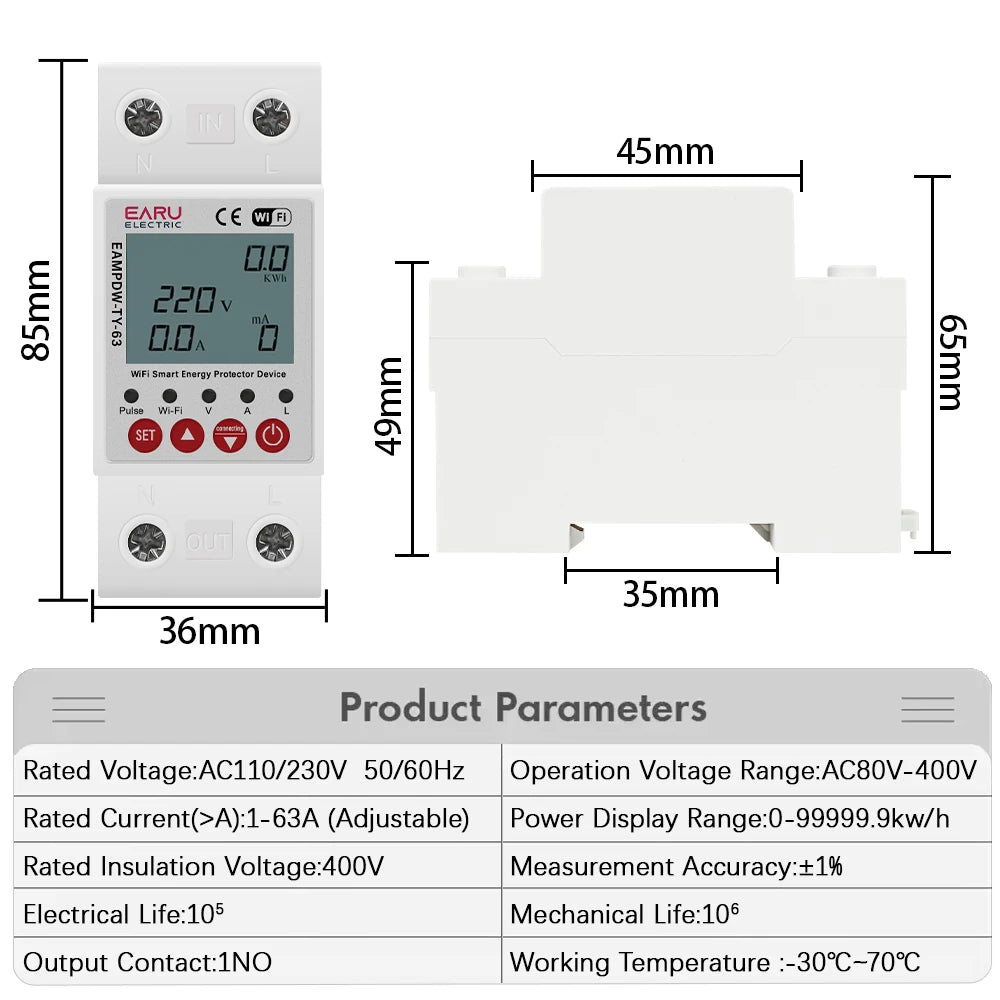

Product Specification
Rated Voltage: AC230V; Frequency: 50Hz/60Hz

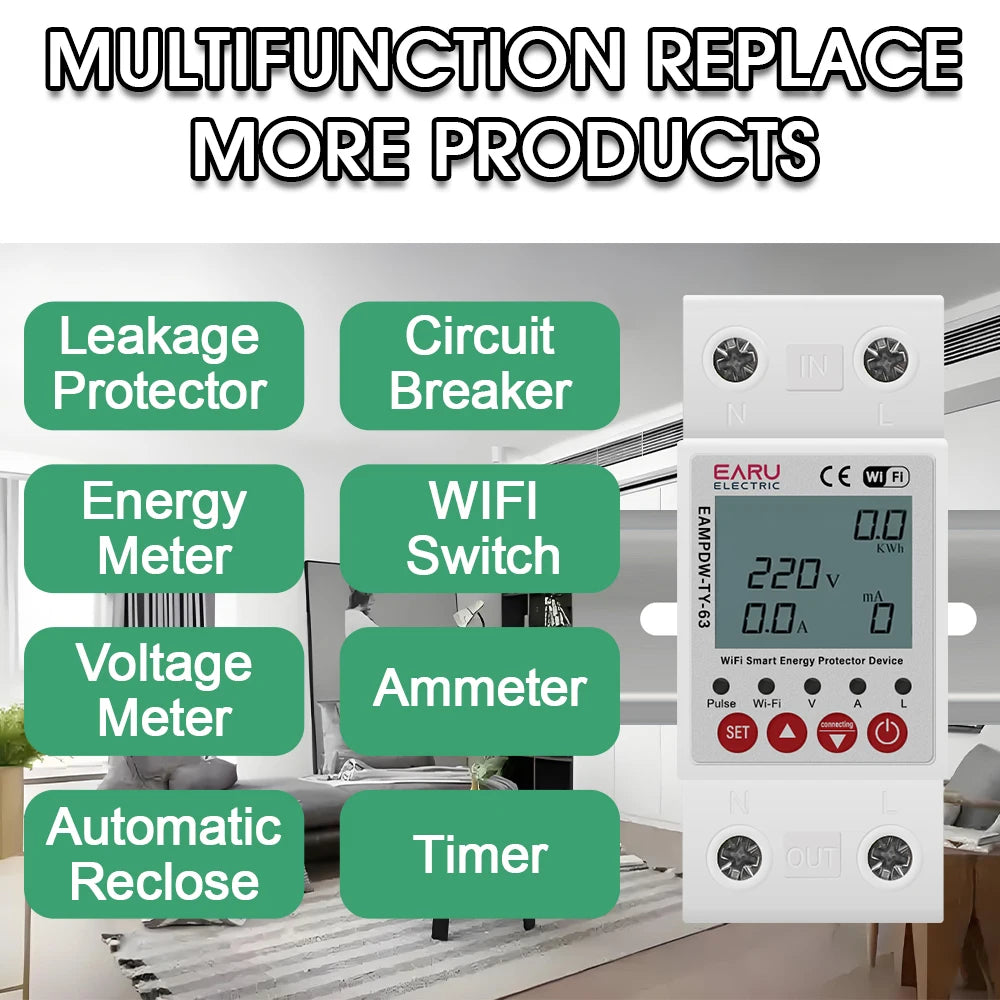

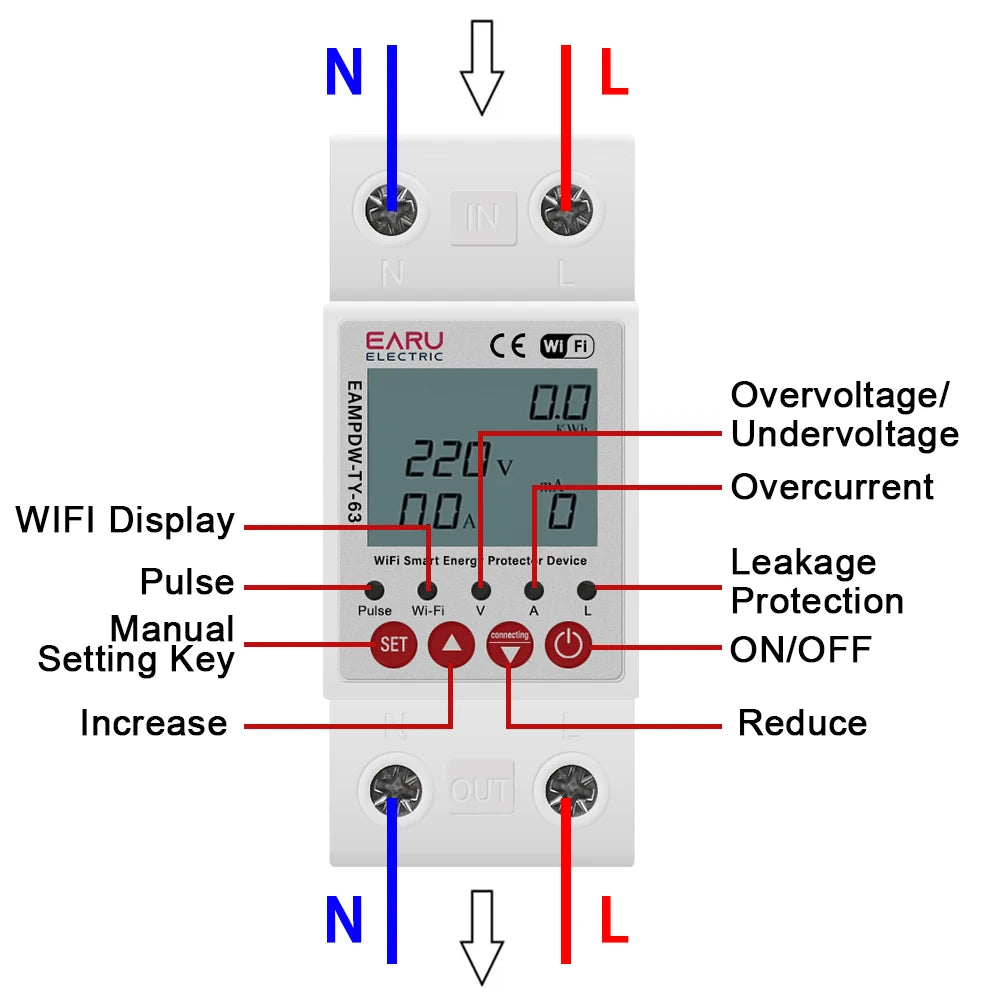

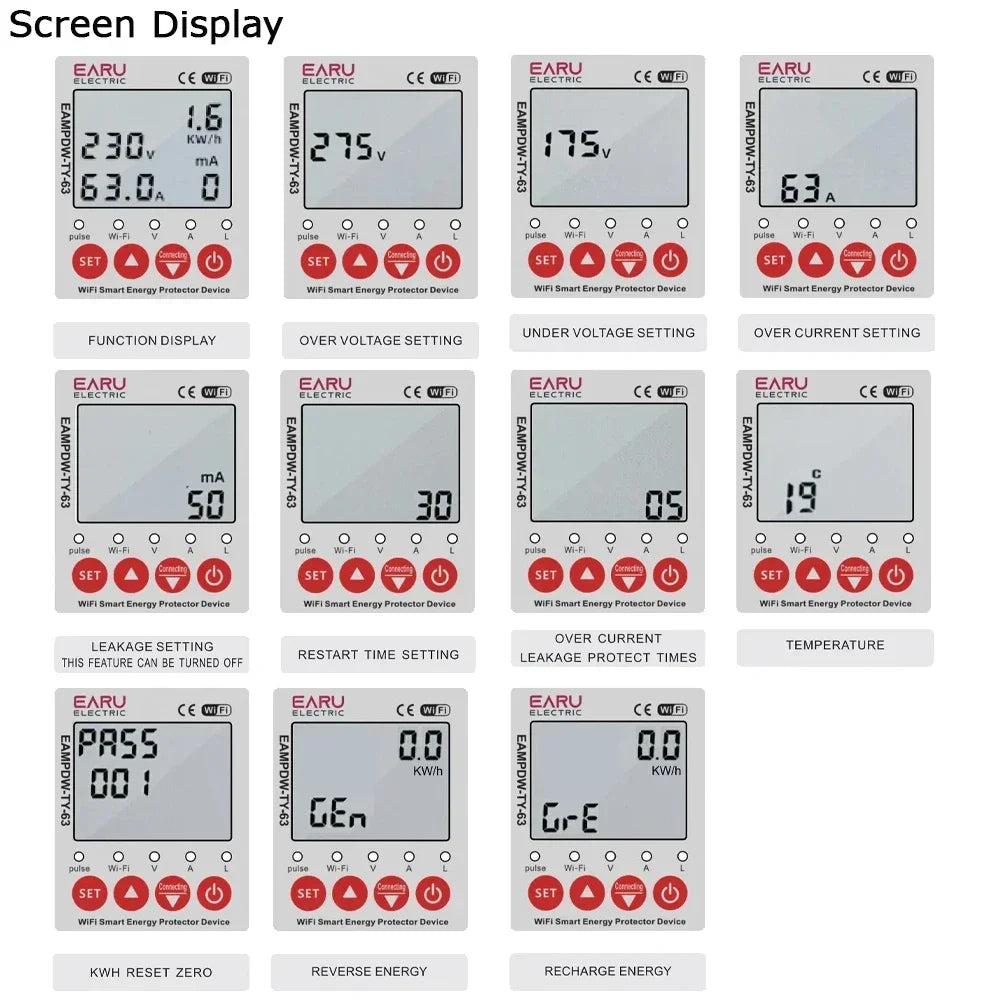

Function:
1. Voltage Meter
2. Ammeter
3. Energy Meter
4. Timer Switch
5. Remote Control ON/OFF
6. Power Failure Memory

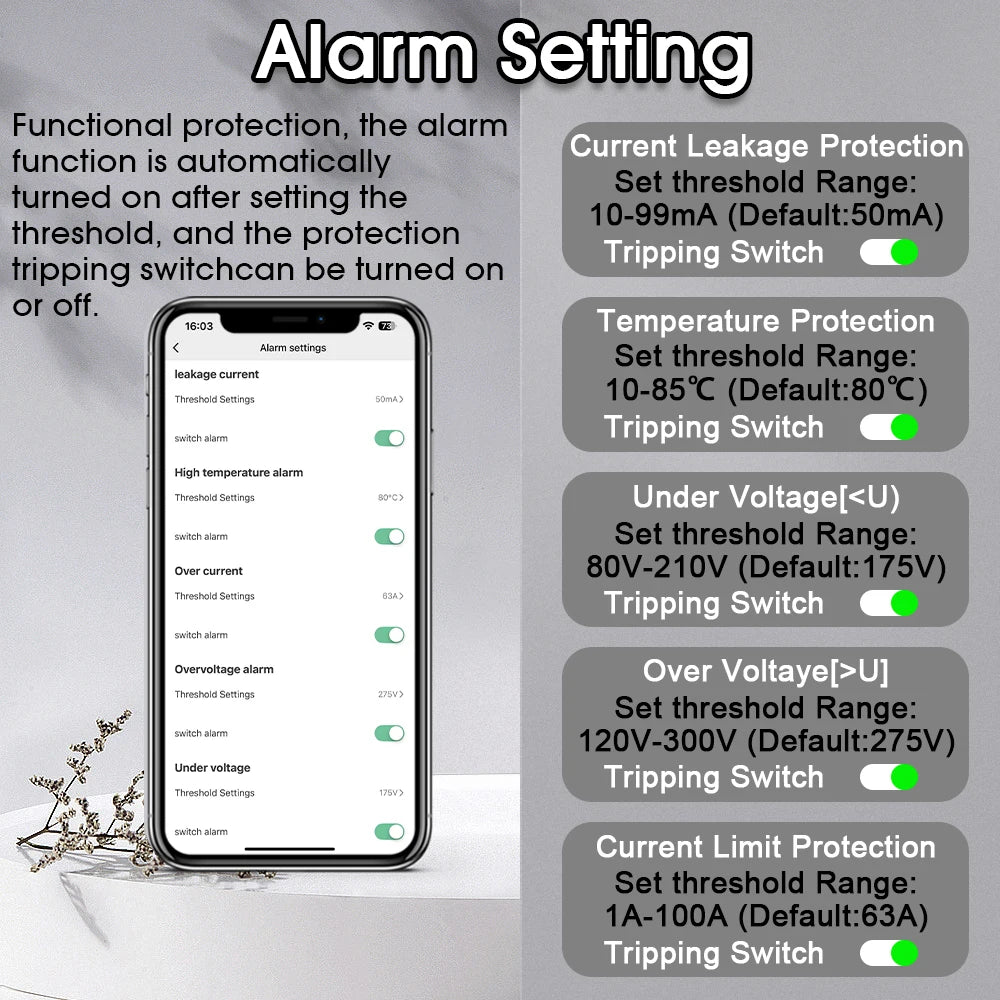

8. Under-Voltage Protection (76V-240V Adjustable)
9. Over-Voltage Proteciton (120V-300V Adjustable)
10. Current Leakage Protection (10mA-99mA Adjustable)
11. Temperature Protection (10°C-85°C Adjustable)
12. Over Current and Leakage Reconnect Times (1-30 Adjustable)
13. Reconnect Time (Delay on time) (10s-90s Adjustable)
