SPECIFICATIONS

Brand Name: NONE

Certification: CE

Origin: Mainland China

modname=ckeditor

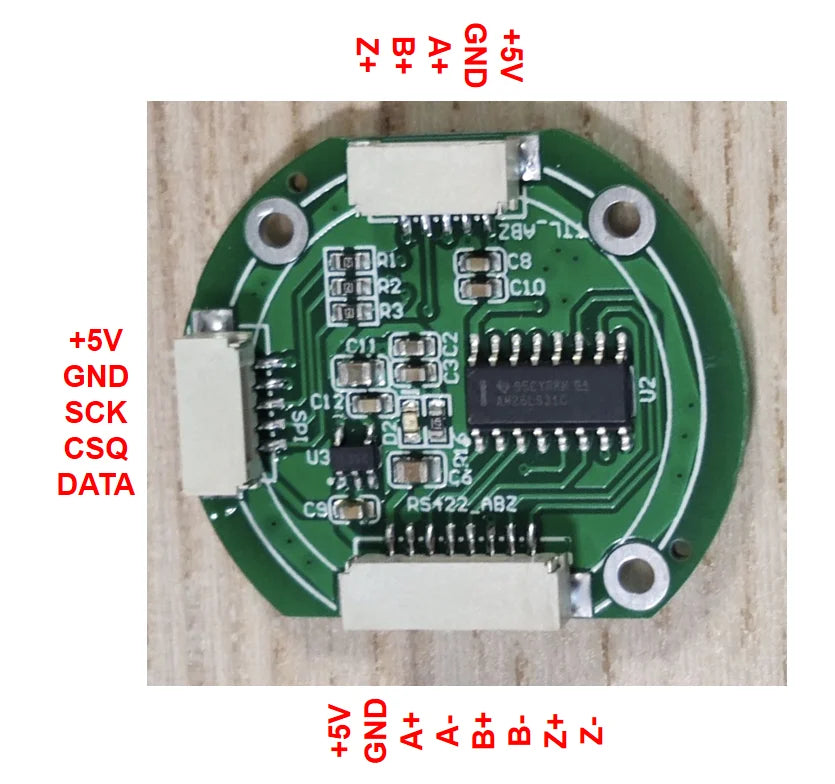

Magnetic Encoder 、Angle sensor、TLE5012B



1、Power Supply：4.5V~5.5V

2、resolving power：16384

3、supportTTLsignalABZoutput，supportRS422DifferenceABZoutput，supportSPIcommunication



Installation suggestions：The sensor chip should be coaxial with the magnet（The error is controlled within0.5mmThe best inside），The distance between sensor chip and magnet is controlled at1mm~3mm。

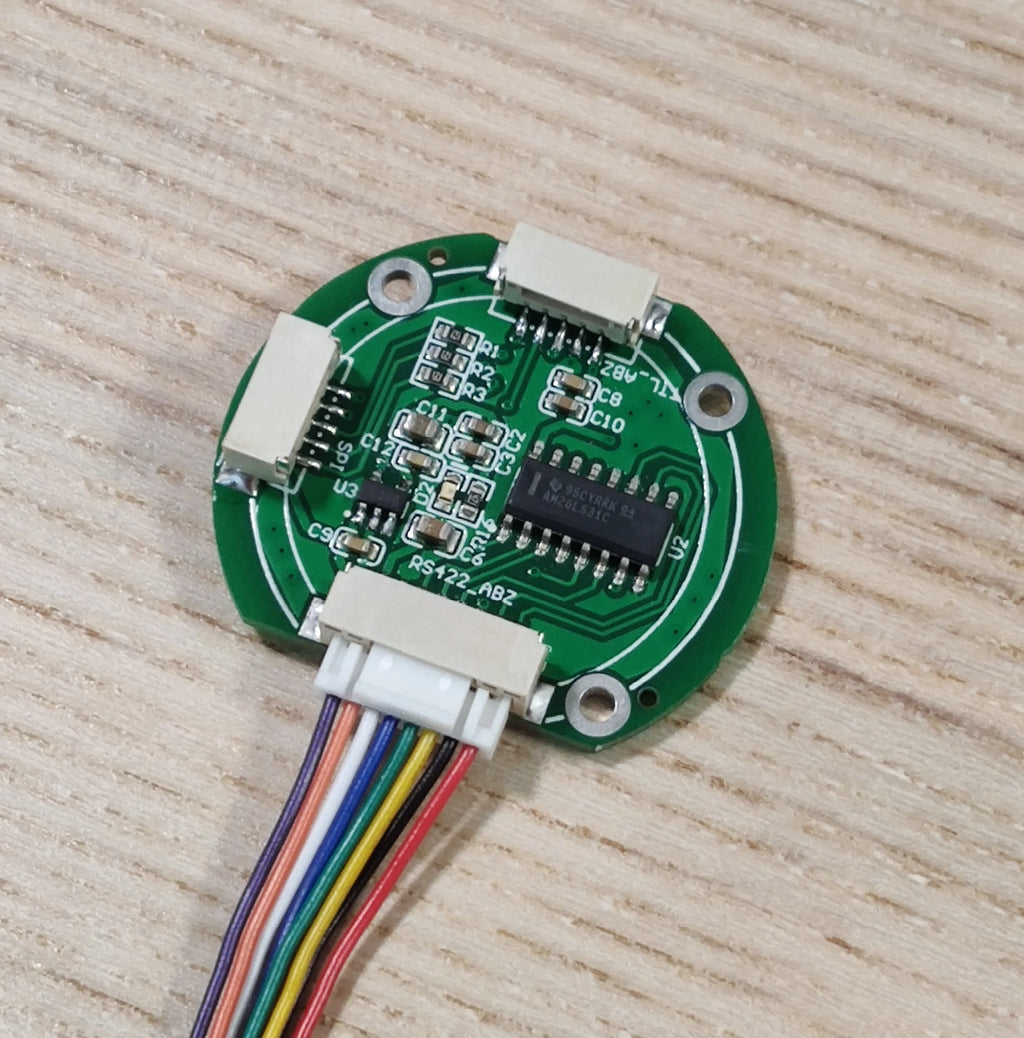

Delivery list：Encoder board、6*2.5Round magnet、Crimped signal wire。
