Features:

* Applicable Batteries: 12V lead-acid batteries, 12V gel batteries, 12.8V lithium iron phosphate batteries, with memory function. Re-powering will maintain the previous battery type.

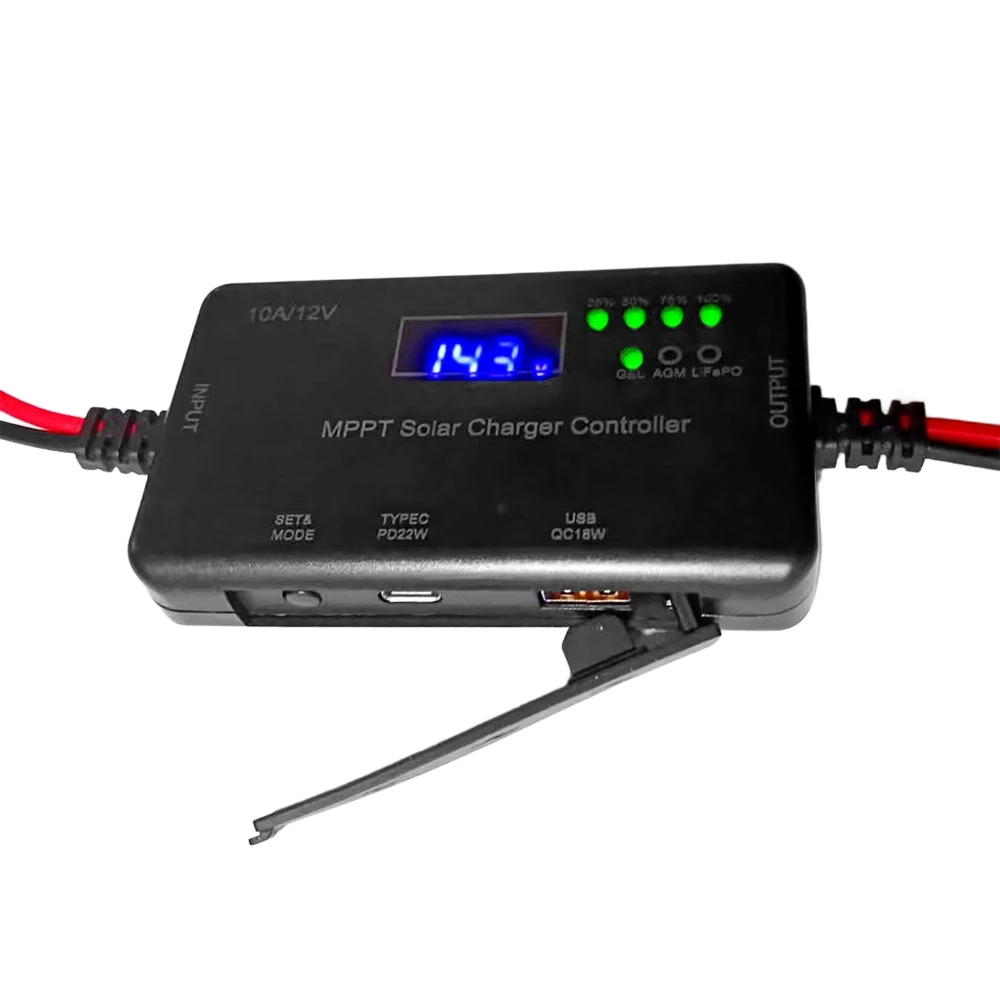

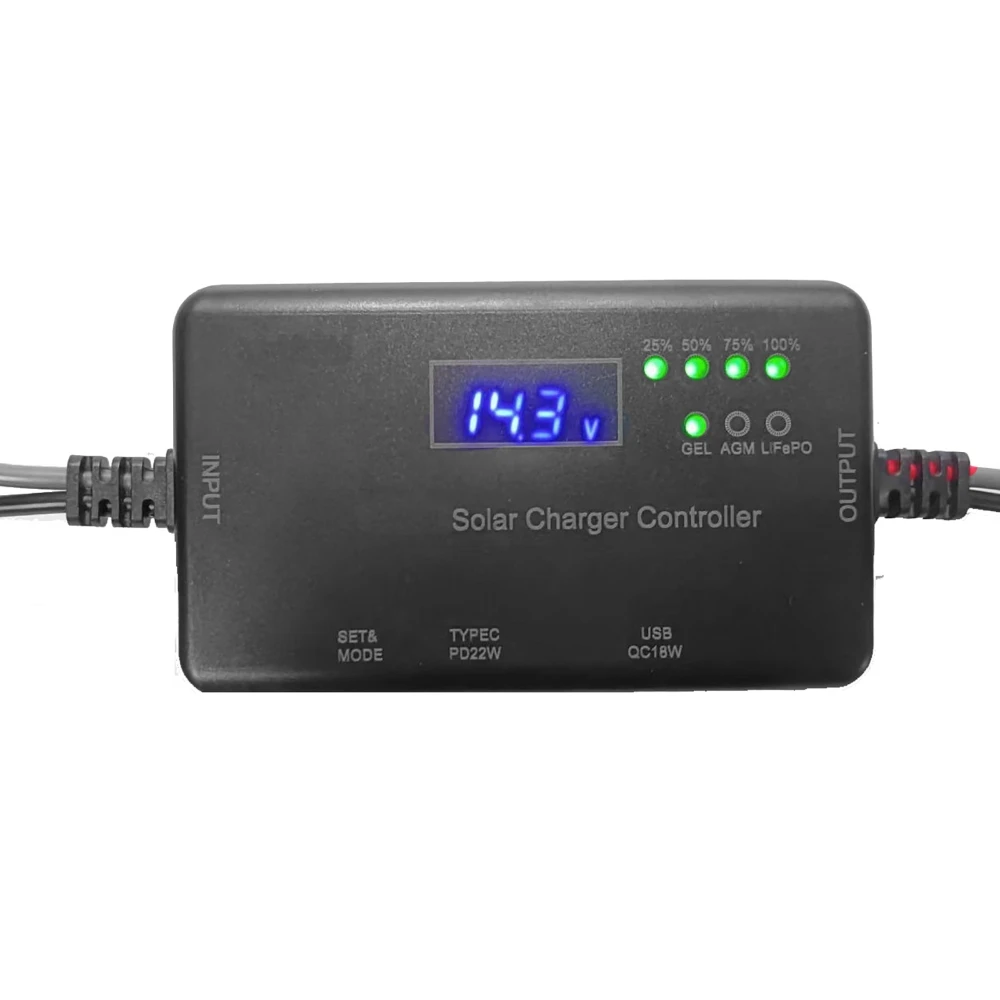

* Features battery voltage, charging current display, battery capacity indicator, and battery type indicator. The display automatically turns off at night to save energy.

* Includes overcharge protection, overcurrent protection, solar reverse charging protection, battery polarity reverse connection protection, over-temperature protection, and output short-circuit protection.

* Equipped with USB and Type-C outputs: USB maximum QC18W, Type-C maximum PD22W. Can be powered by solar energy or batteries.

* Designed specifically for solar charging, extremely convenient to use.

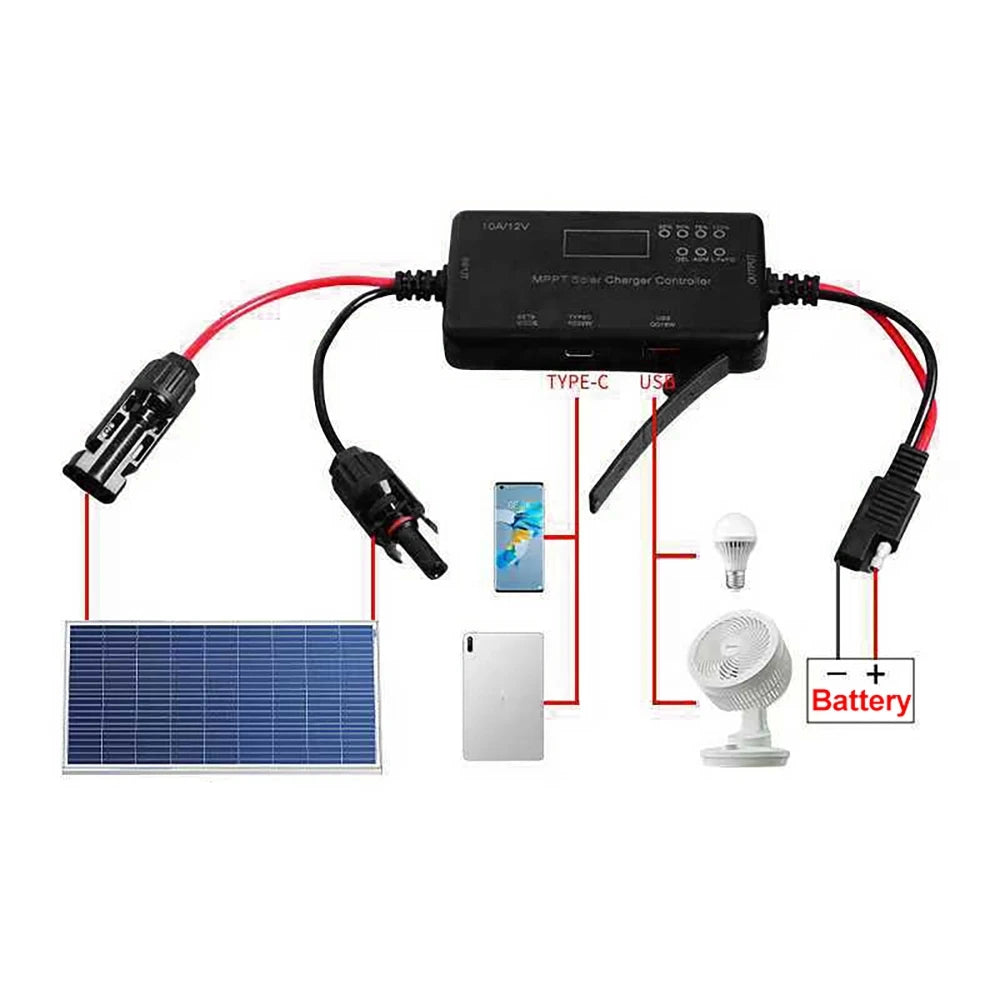

* Applications: Suitable for solar energy storage, solar-powered folding battery pack charging, solar-powered vehicle power supply, and charging of lead-acid and lithium iron phosphate batteries.

Specification:

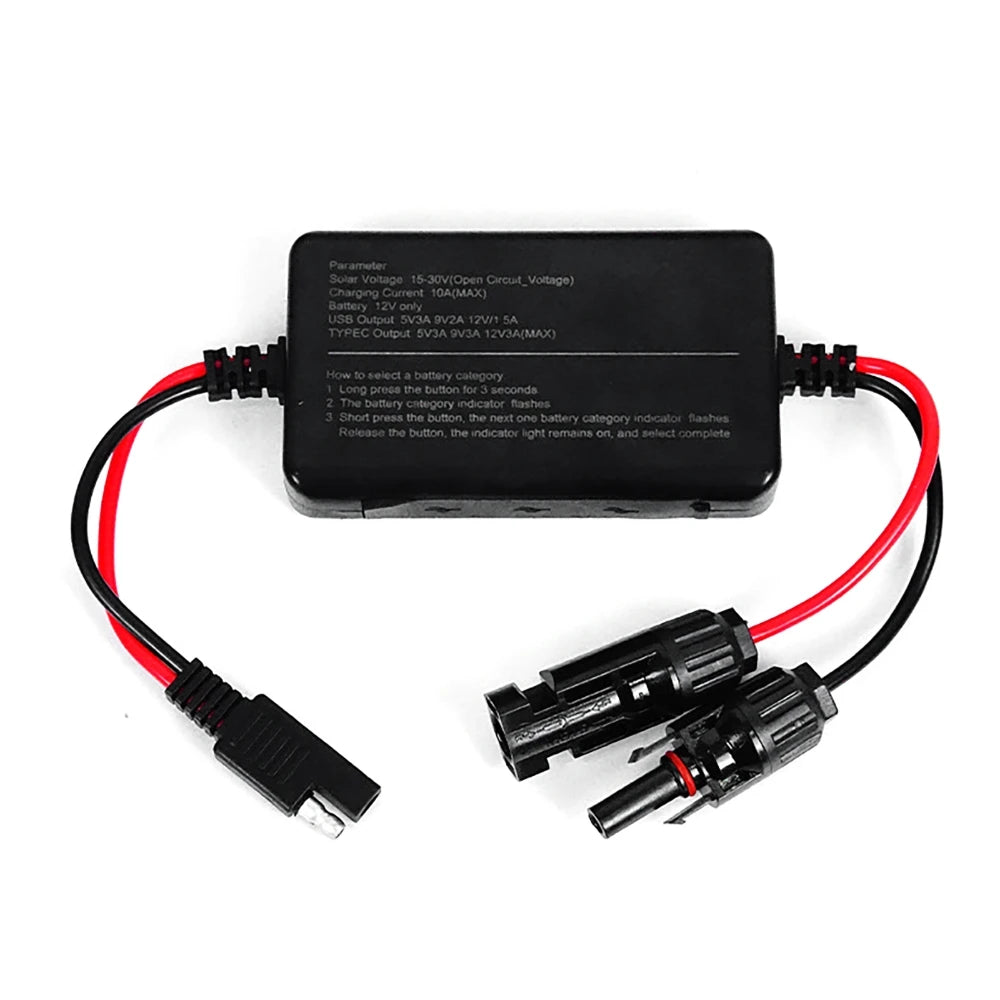

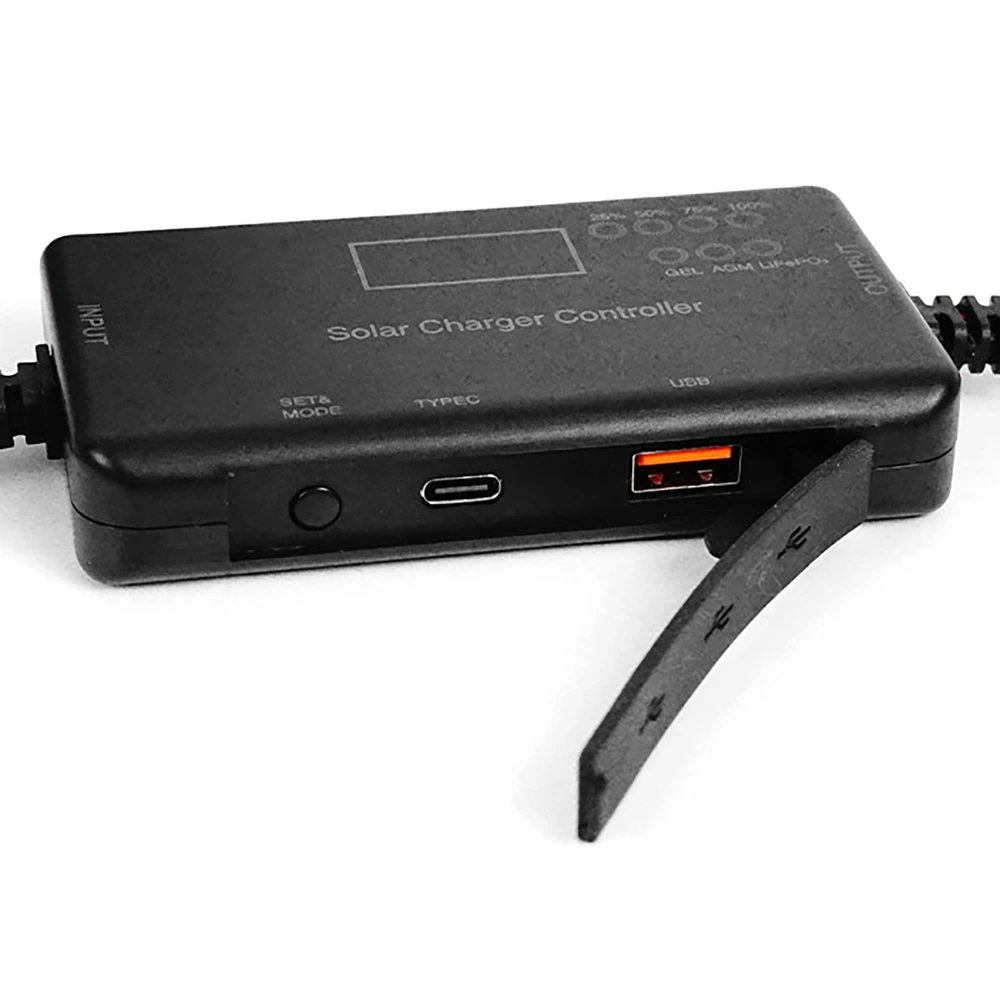

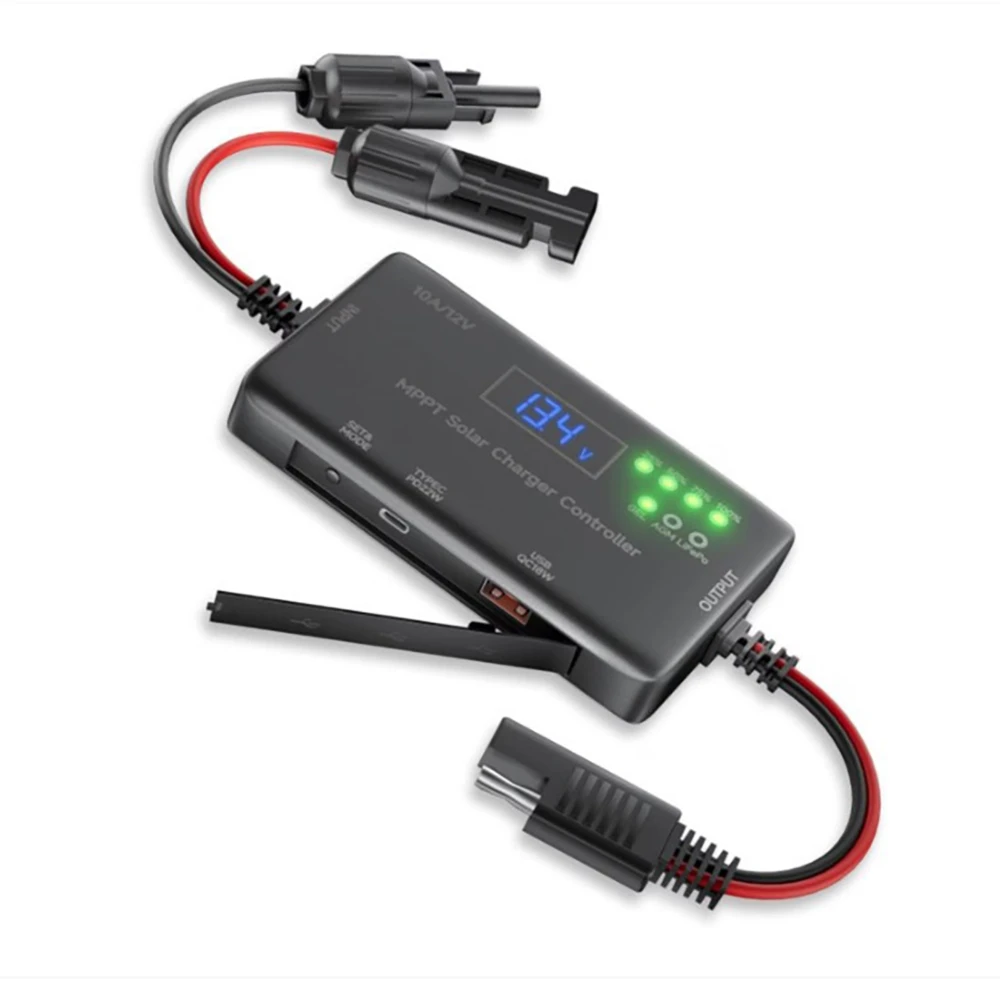

Name: Solar Photovoltaic Controller

Controller Type: MPPT

Battery Voltage: 12V

Maximum Charging Current: 10A

Maximum Open Circuit Voltage (VOC): 30V

Boost Charging Voltage: Lead-acid and Gel Batteries: 14.4V, Lithium Iron Phosphate Batteries: 14.6V

Float Charging Voltage: Lead-acid and Gel Batteries: 13.6~13.8V

Self-Discharge Current: <30MA

MPPT Tracking Efficiency: 96%

USB Output: QC18W (Max), 5V 3A 9V 2A 12V 1A 5A

TYPEC Output: PD20W (Max), 5V 3A 9V 2A 12V 1A 67A

Dimensions: 104 * 51 * 20mm

Color: Black

Packing included:

1 * Solar Photovoltaic Controller
