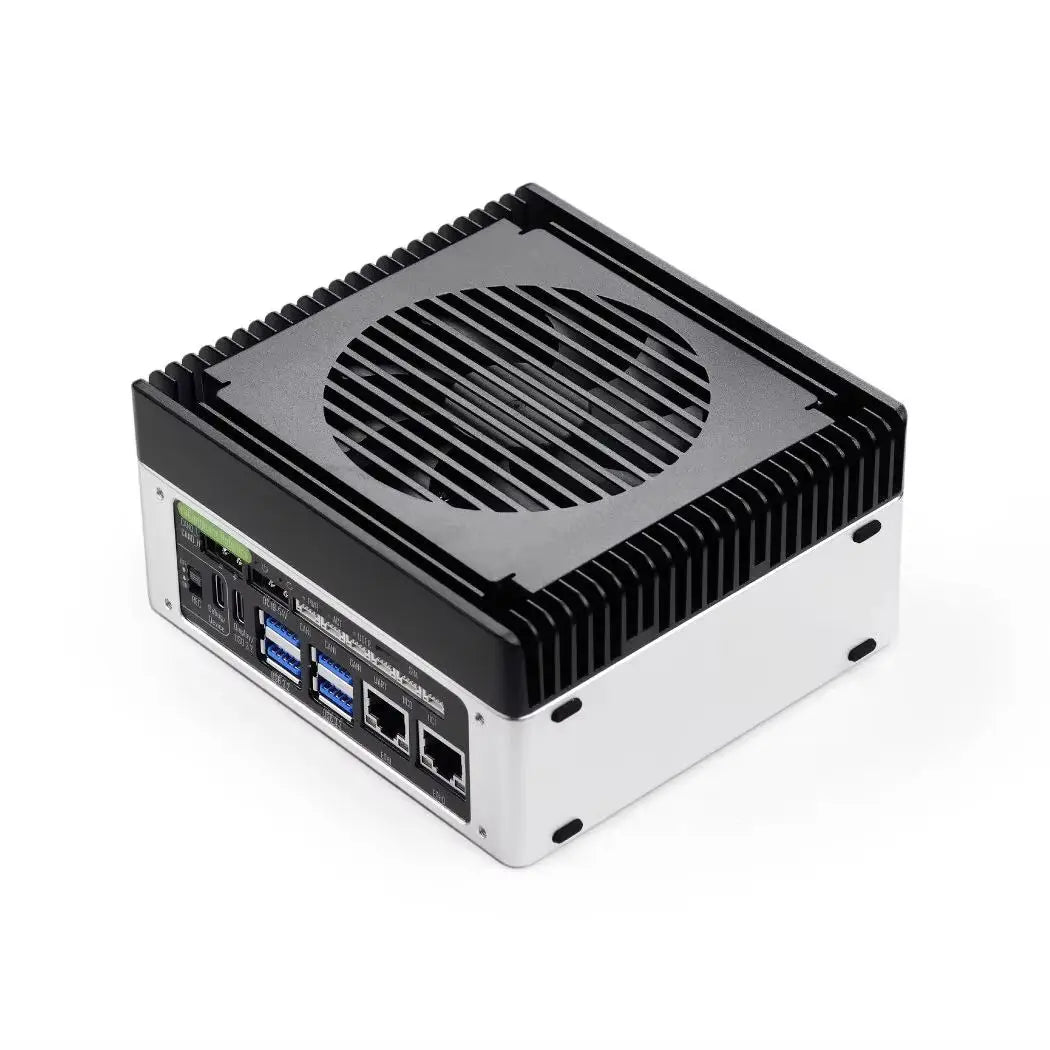

Robot Intelligent Edge AI Computer with NVIDIA Jetson Orin NX Super 16GB 157TOPS reComputer Robotics J4012 ,USB,Ethernet,CSI,CAN

J4012 with GMSL

$2,220.68

$2,220.68 $1,220.68

Robot Intelligent Edge AI Computer with NVIDIA Jetson Orin NX Super 16GB 157TOPS reComputer Robotics J4012 ,USB,Ethernet,CSI,CAN

$2,220.68

$2,220.68 $1,220.68

🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.

📋 Register as a Company 🔑 Wholesale Login

100% Encrypted Payment | 📦 Insured Shipping

SPECIFICATIONS

Battery Included: no

Brand Name: seeed studio

High-concerned chemical: None

Model Number: NVIDIA Jetson Orin NX

Origin: Mainland China

Typical Application Fields: Edge Computing and AI Applications

reComputer Robotics J4012 is a compact yet powerful edge AI computer designed for fast development and deployment in robotics. Delivering up to 157 TOPS of AI performance with rich I/O options (USB, Ethernet, CSI, CAN), it supports seamless multi-sensor integration and industrial applications. With wide DC power input (12–54V) and pre-installed Jetpack 6.2 + Linux BSP, it’s ready for immediate use in advanced robotics applications.

Feature

Robust Hardware Design: Boost power in a compact size: deliver up to 157 TOPS AI performance by NVIDIA Jetson Orin NX Module.

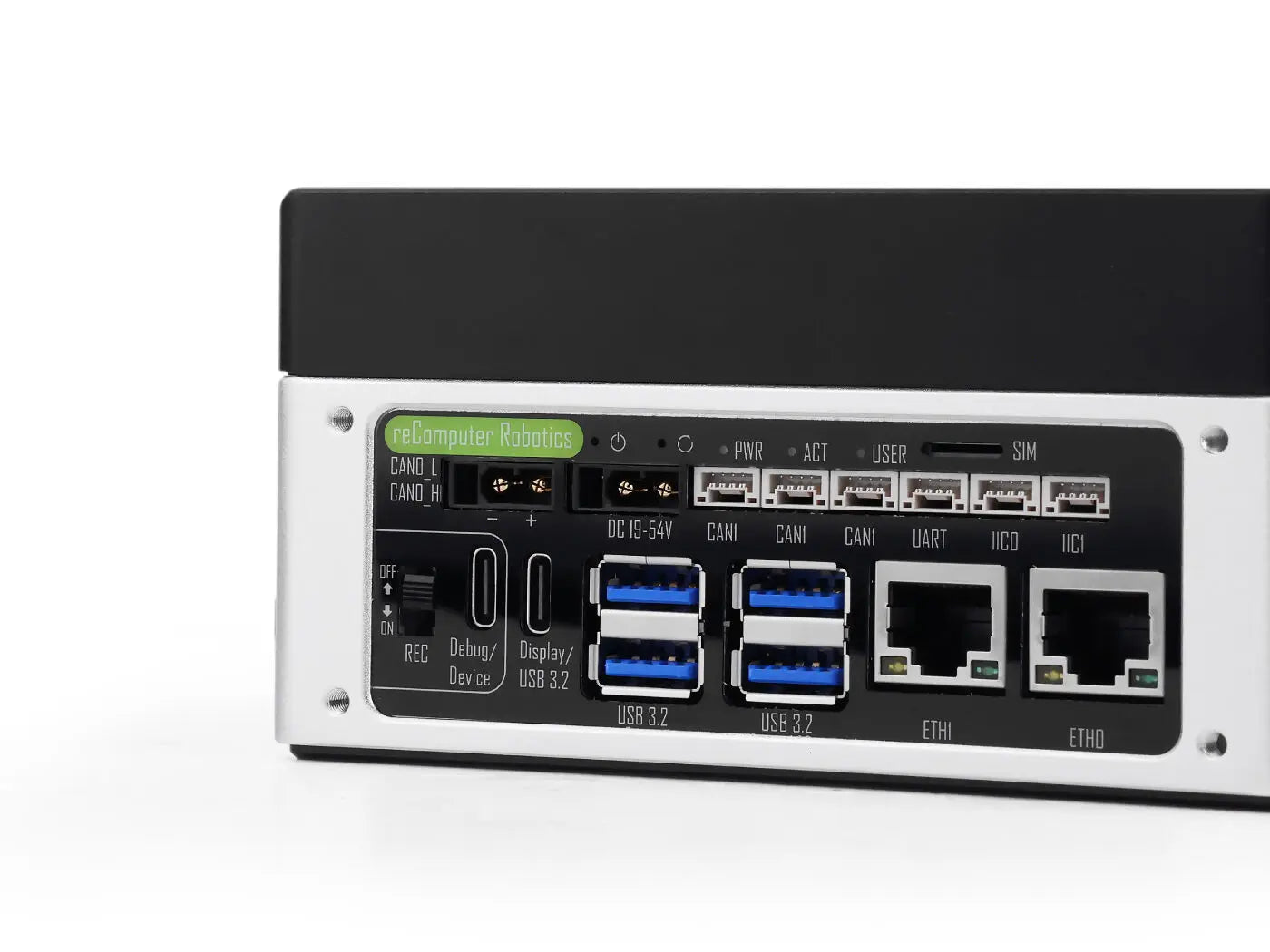

Multiple Interfaces for robotics: Including dual RJ45, M.2 slots for 5G/Wi-Fi/BT modules, 6x USB 3.2, 2x CAN, GMSL2(additional purchase), I2C, and UART, functioning as a powerful robotic brain.

Software-ready Ecosystem: Pre-installed with JetPack 6.2 and Linux BSP for seamless deployment.

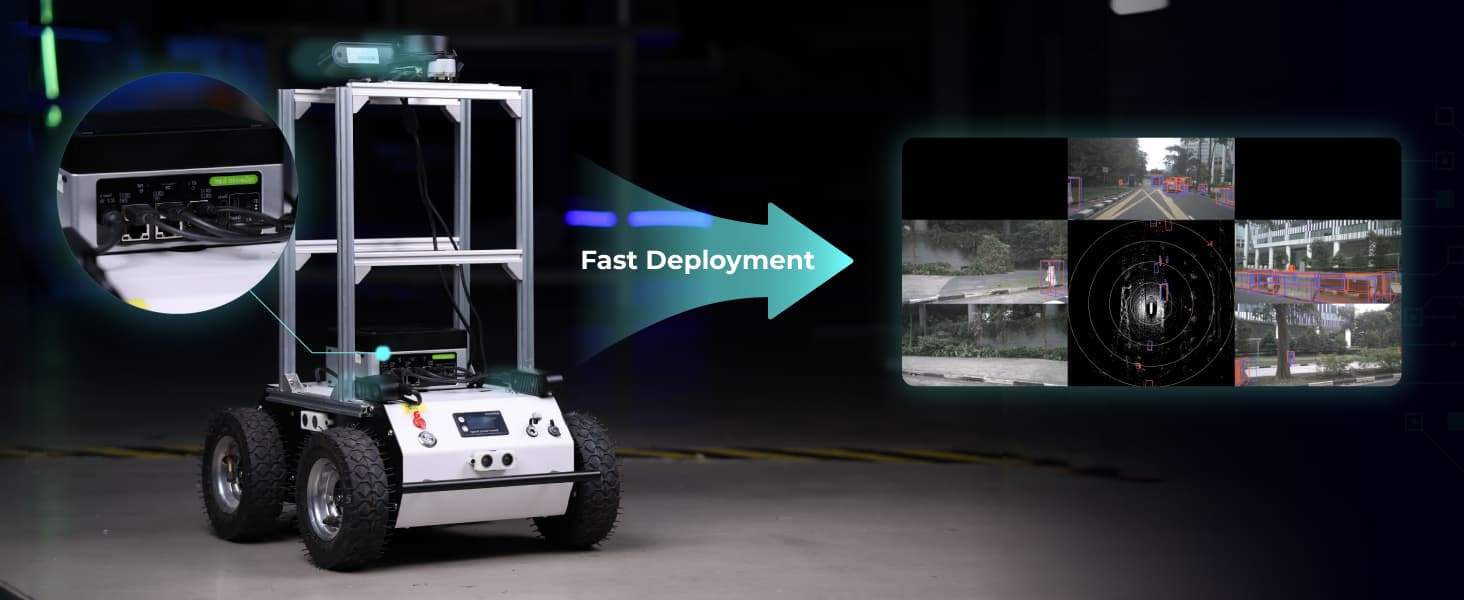

Application and Benefit: Ideal for rapid development of autonomous robots, accelerating time-to-market with ready-to-use interfaces and optimized AI frameworks.

Robust Power & Thermal Design for Durability: Operates reliably from –20 °C to 60 °C at 25 W and up to 55 °C in MAXN mode, fueled through a wide 19–54 V DC input, ensuring stable operation in mobile and industrial robot environments

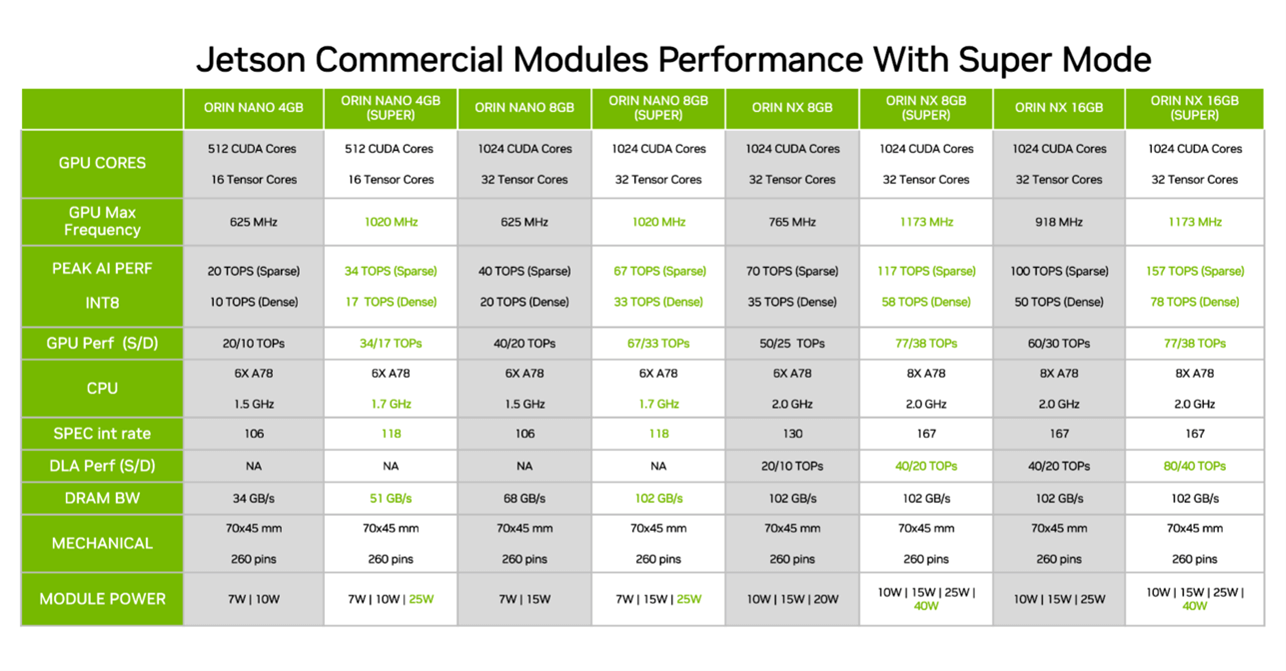

Jetson Modules Performance with Super Mode

Enhanced power management

Improved higher frame rate processing

Reduced inference time

Specification

Module
	reComputer Robotics J4012
Applications Processor(AP)	NVIDIA Jetson Orin™ NX 16GB
AI Performance	Orin NX 16GB – 157 TOPS (MAXN)
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU Max Frequency	1173 MHz
CPU	8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
CPU Max Frequency	2.0 GHz
DL Accelerator	2 x NVDLA v2.0
DL Max Frequency	1.23 GHz
Vision Accelerator	1 x PVA v2.0
Memory	16GB 128-bit wide LPDDR5 DRAM 102.4GB/s
Power	10W - 15W - 25W - 40W
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
Video Decode	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
CSI camera	Up to 4 cameras (8 via virtual channels) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
Mechanical	69.6mm x 45mm 260-pin SO-DIMM connector

Carrier Board
Storage	1x M.2 KEY M PCIe
Networking	M.2 KEY E	1x M.2 Key E for WiFi/Bluetooth module
	M.2 KEY B	1x M.2 Key B for 5G module
	Ethernet	2x RJ-45 Gigabit Ethernet
I/O	USB	6x USB 3.2 Type-A (5Gbps) 1x USB 3.0 Type-C (Host/DP 1.4) 1x USB 2.0 Type-C (Device Mode Only for Reflash/Debug)

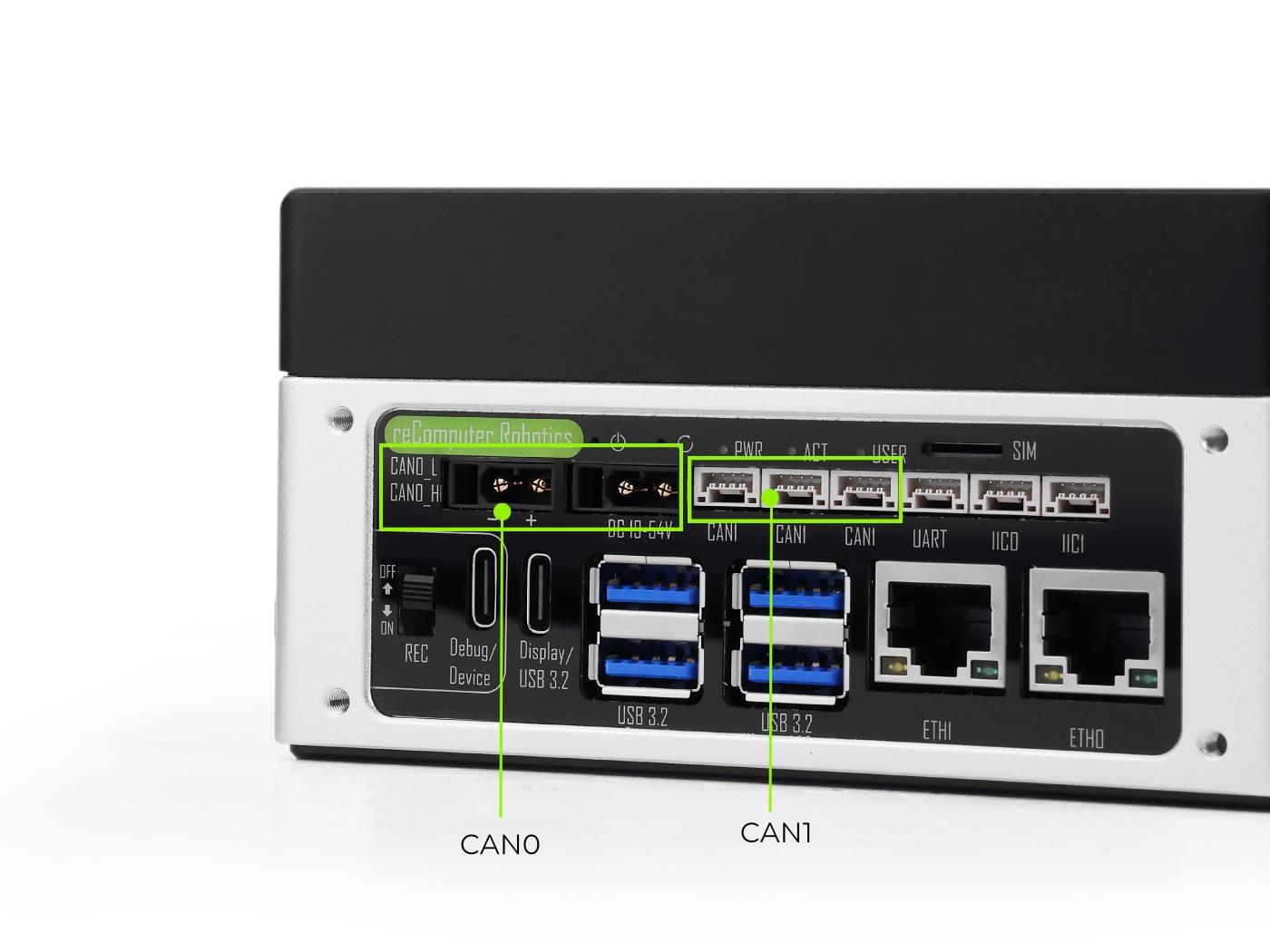

	CAN	2x CAN0 (XT30(2+2)) 3x CAN1 (4-Pin GH-1.25 Header)
	Display	1x DP1.4 (Type C Host)
	UART	1 x UART 4-Pin GH-1.25 Header
	I2C	2x I2C 4-Pin GH-1.25 Header
	Fan	1x 4-Pin Fan Connector (5V PWM) 1x 4-Pin Fan Connector (12V PWM)
	Extension Port	1x Camera Expansion Header (for GMSL2 board, not included)
	RTC	1x RTC 2-pin 1x RTC Socket
	LED	3x LED (PWR, ACT and User LED)
	Pinhole Button	1x PWR 1x RESET
	DIP Switch	1x REC
	Antenna Hole	5x Antenna Hole
Power	19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included)
Jetpack Version	Jetpack 6.2
Mechanical	Dimensions (W x D x H)	115mm x 115mm x 38mm
	Weight	200g
	Installation	Desk, Wall-mounting
Operating Temperature	-20℃~60℃ (25W Mode) -20℃~55℃ (MAXN Mode) (with reComputer Robotics heat sink with fan)
Warranty	2 Years
Certification (Pending)	RoHS, REACH, CE, FCC, KC

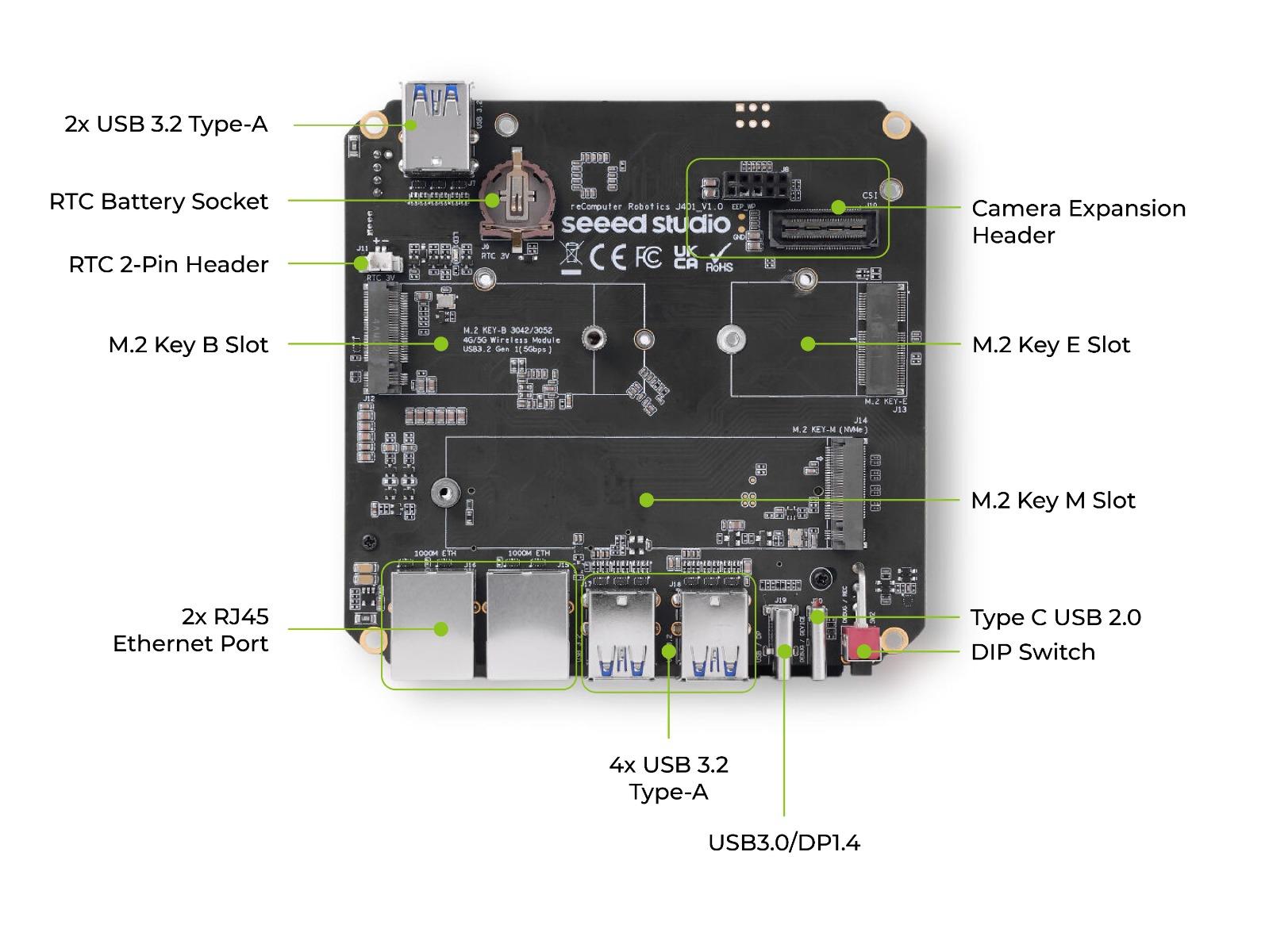

Hardware Overview

Application

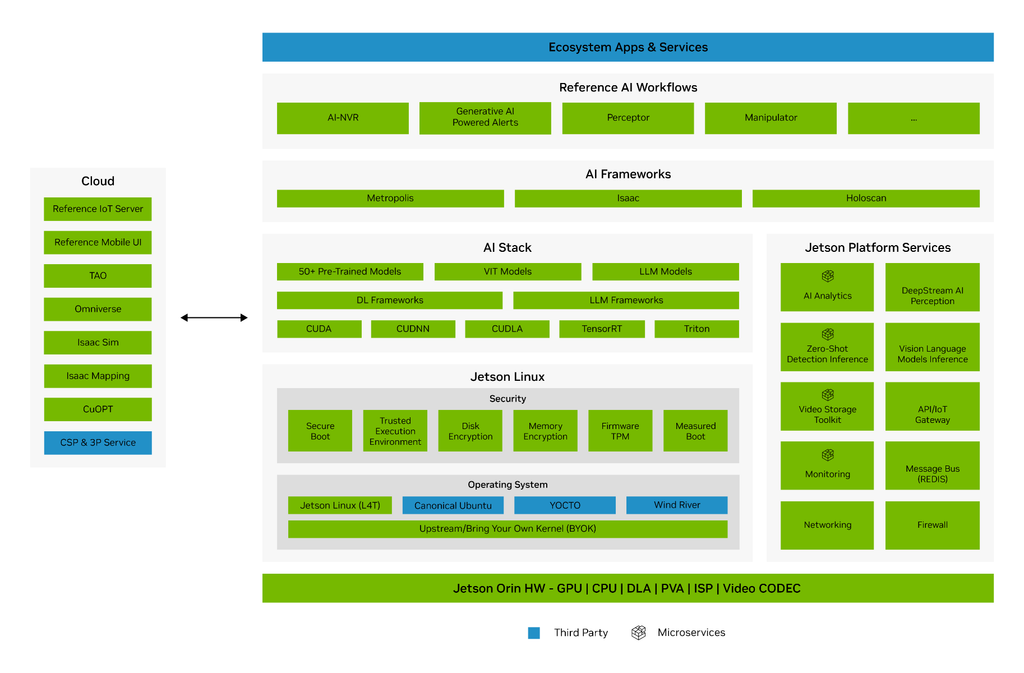

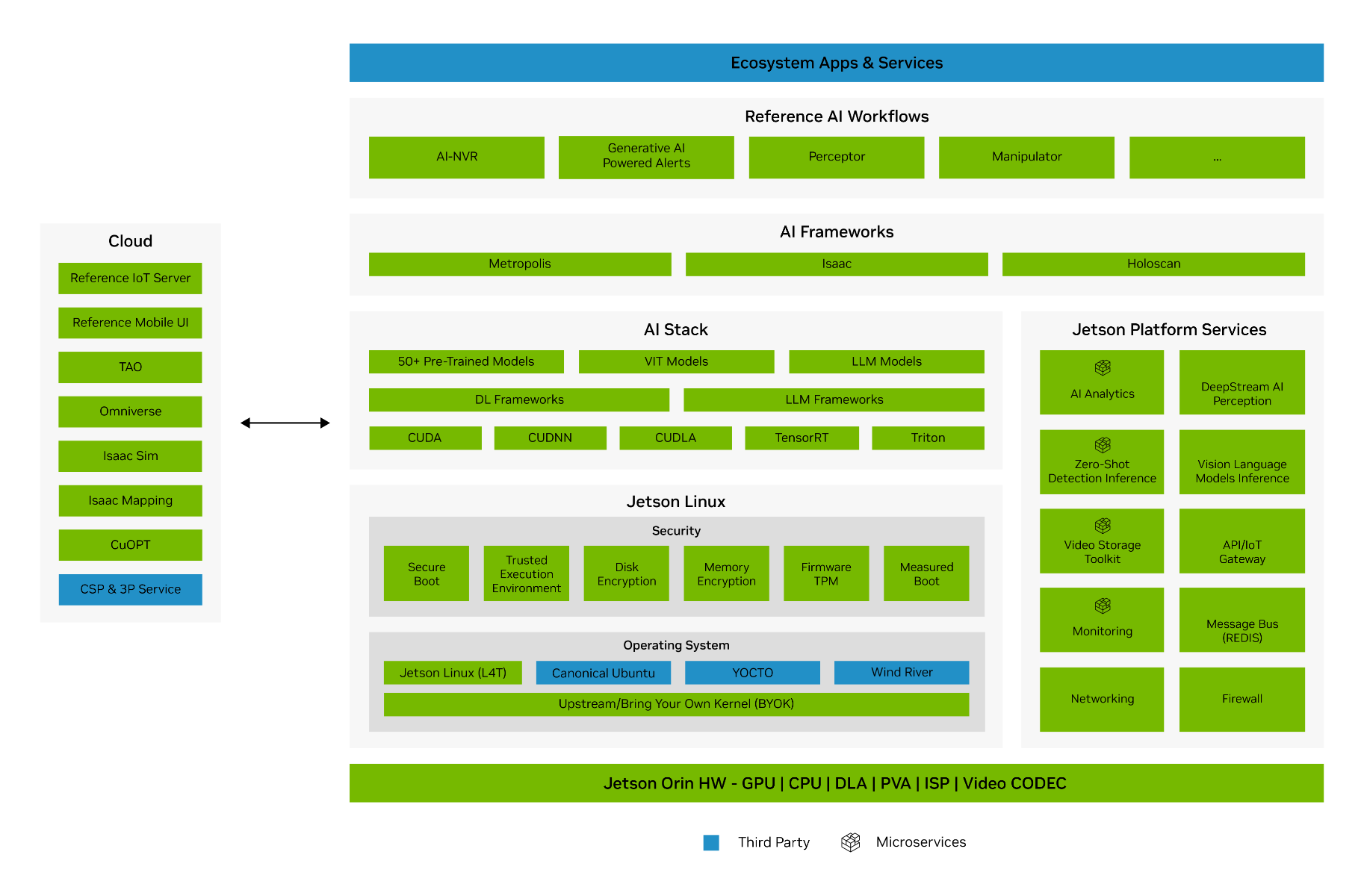

The NVIDIA AI software stack is designed for accelerate AI application and deployment:

Designed for Edge AI Computer Vision Applications:

Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

Designed for demanding AI applications：

Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario

We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.

Documents

User Manual&Datasheet

Carrier Board Schematic

Power Board Schematic

3D File

Mechanical Document-reComputer Robotics PCBA

Seeed NVIDIA Jetson Product Catalog

Nvidia Jetson Comparison

Seeed Nvidia Jetson Success Cases

Seeed Jetson One Pager

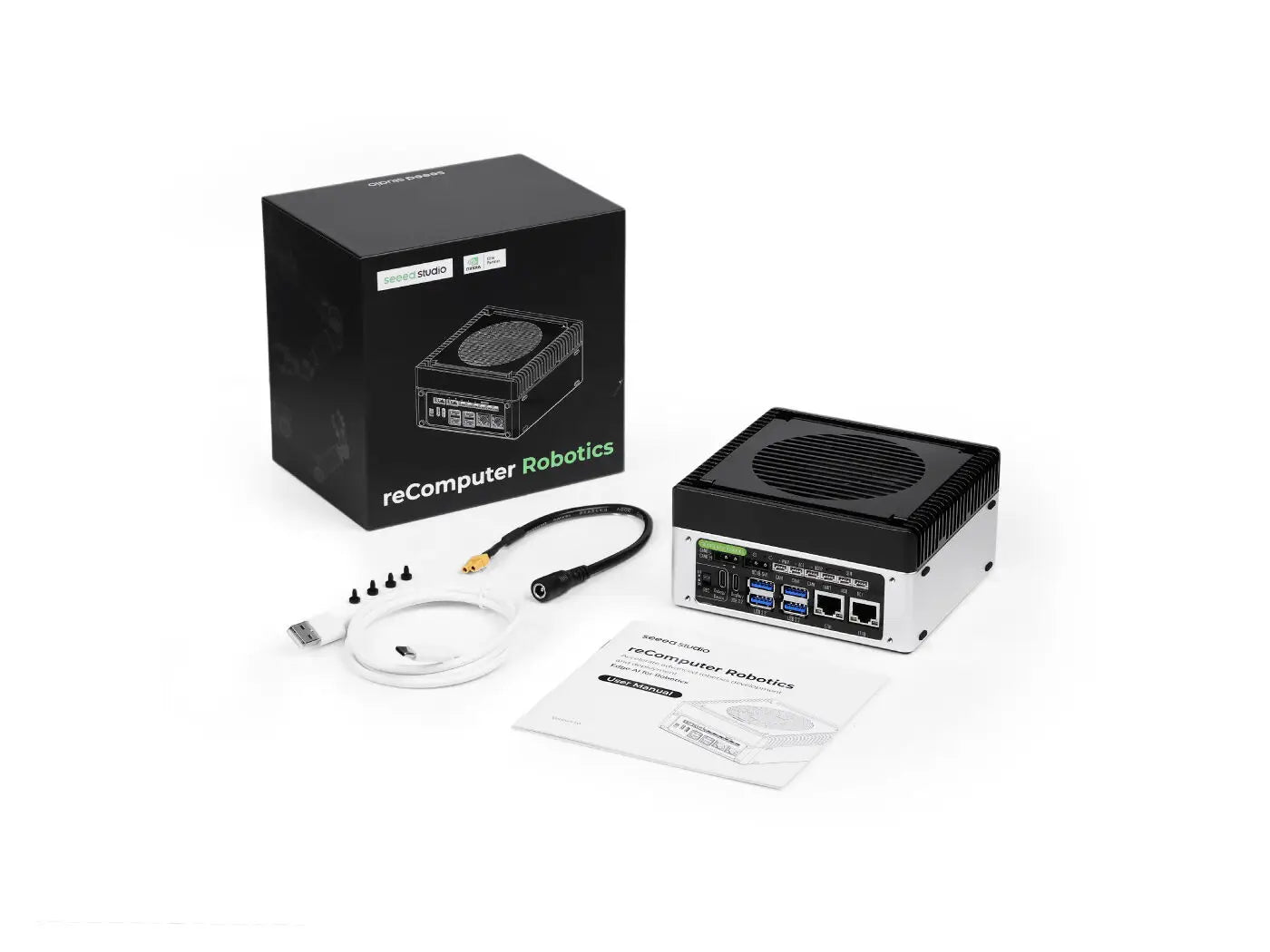

Part List

Items	Quantity
Jetson Orin™ NX 16GB module	x 1
Seeed Carrier Board (reComputer Robotics J401)	x 1
128GB NVMe SSD	x 1

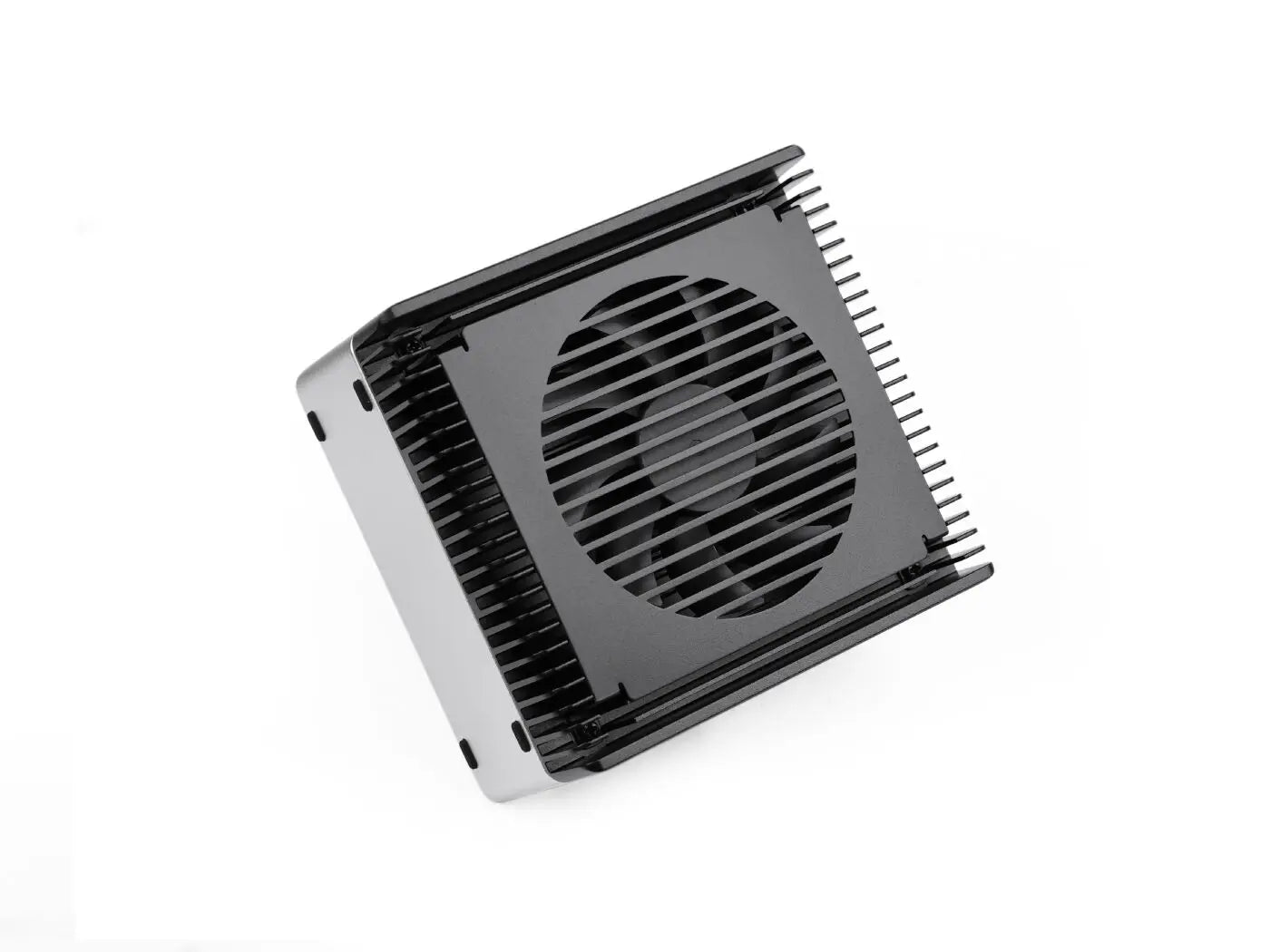

Aluminum Case and Heatsink with Fan	x 1
USB Cable; Type A to Type C	x 1
XT30 to DC cable	x1
User Manual	x 1
