SPECIFICATIONS
Battery Included: No
Brand Name: LILYTECH
Certification: NONE
Display Size: 1.9 Inches & Under
Display Type: DIGITAL
Electronic: No
High-concerned chemical: None
Max Measuring Temperature: 100°C - 119°C
Model Number: ZL-7816A
Origin: Mainland China
Power Type: Charger
Style: Standing Station
Theory: Temperature Controller
Use: Industrial
Manual (copy and paste to browser address to view and downlaod):
cdn.shopify.com/s/files/1/0028/5032/4545/files/ZL-7816A_en_A1.01a_20170406.pdf?15106457627610771903

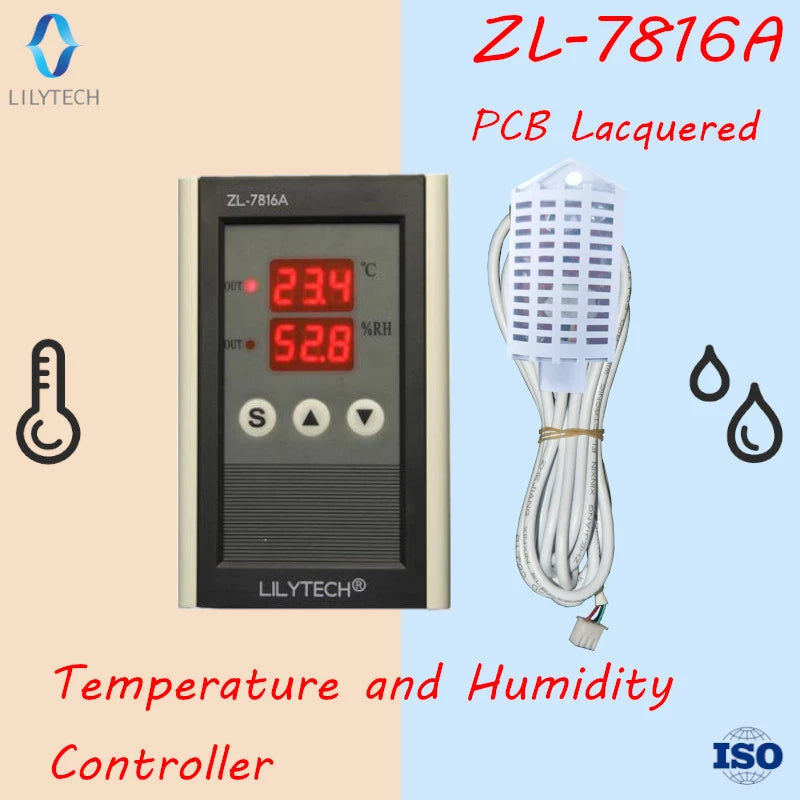

Humidity and temperature Controller
Description

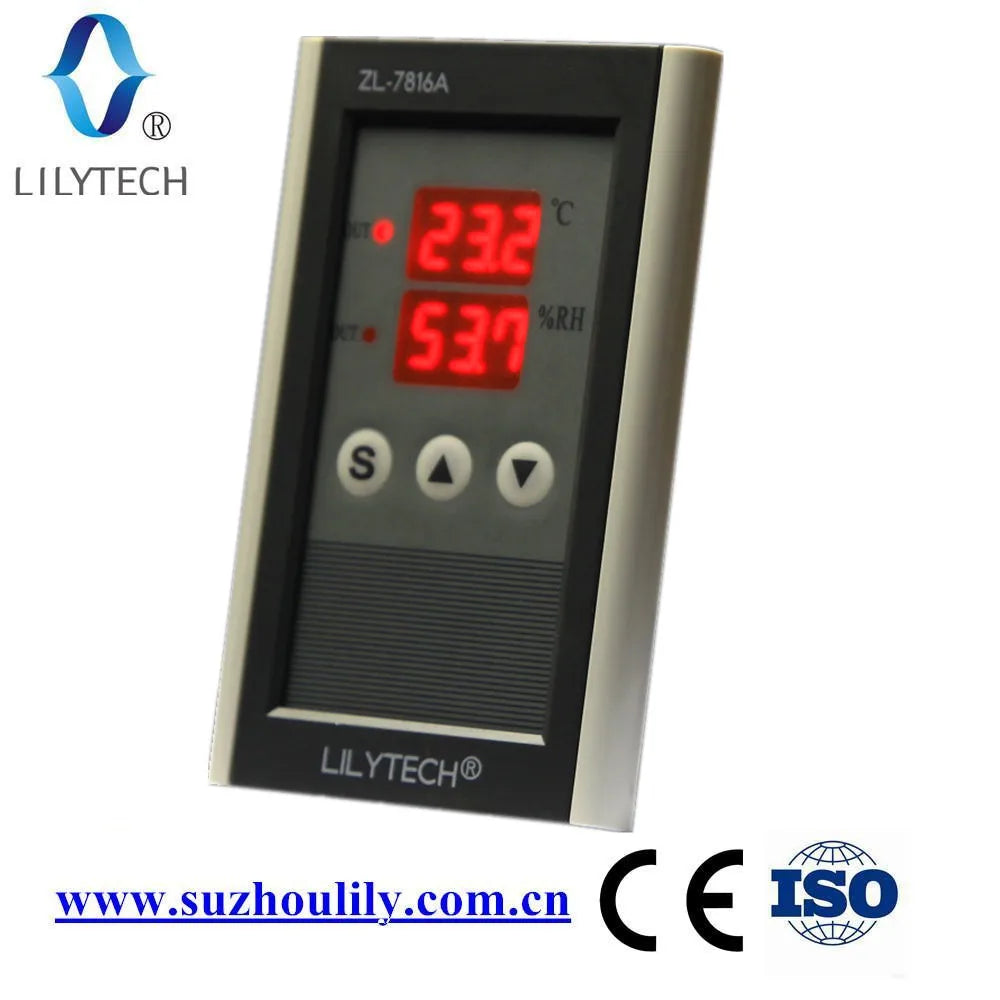

ZL-7816A adopt microcomputer control, slight keys operation, pair of digital display, easy operation, working stable.
The temperature display resolution is 0.1degC, humidity display resolution is 0.1%RH；
Power supply :12VDC/AC；
ZL-7811A has auto restart function, every time the power is on, no need to set parameters again.
ZL-7811A can control humidity and temperature separately.

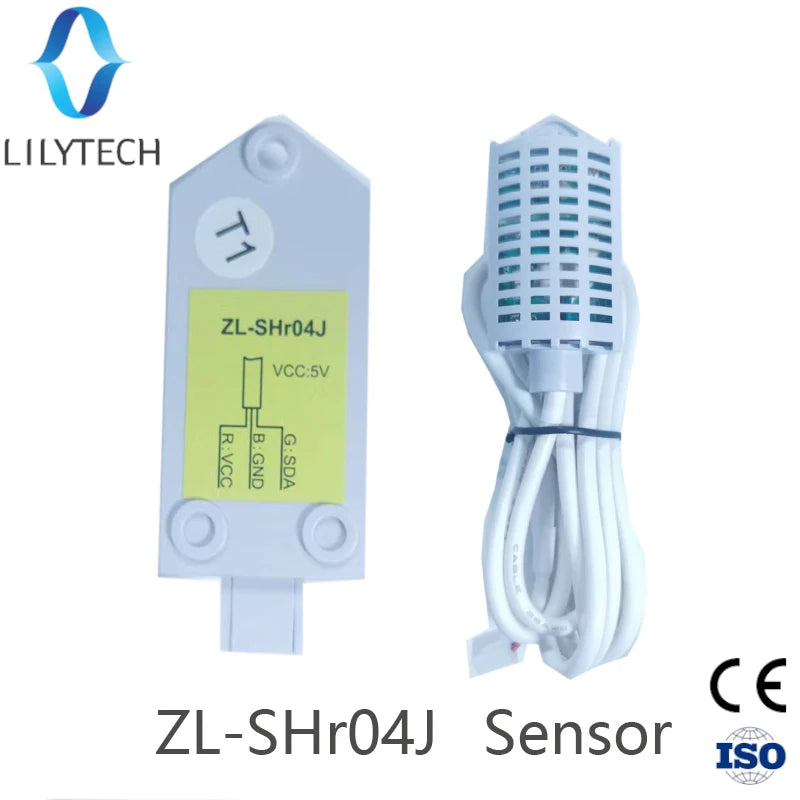

The humidity and temperature sensor can be lengthened to 50M, it collects data stable and reliably.
Technical Specification
Precision of measure: temperature plusmn1%, humidity plusmn3%RH(under temperature 20~60℃)；
Temperature measuring and setting range: 0.0degC～80.0degC；
Humidity measuring and setting range: 0.0%RH～99.9%RH；
Working environment: 0～45degC；
Humidity: 5～95% RH（without dewing）；
Power consumption: < 2W
Power supply: 12V AC/DC
Load current: 250VAC/7A
Size: 118*75*32mm

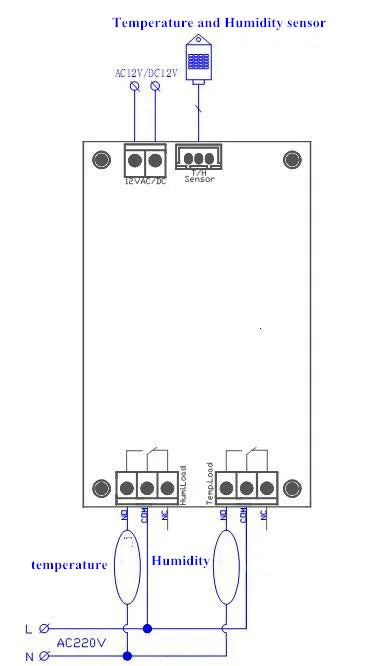

Wiring Diagram
