Description

SPECIFICATIONS

Actuator current range: 0-10A

Brand Name: BAOCHAI

High-concerned chemical: None

Is it electrified: No

Model Number: S6700H

Origin: Mainland China

Rated frequency: 1K-5K HZ

Relative humidity: 95%

Speed sensor signal: 1-20V

Working environment temperature: -40℃-80℃

is_customized: Yes

supply: 24VDC

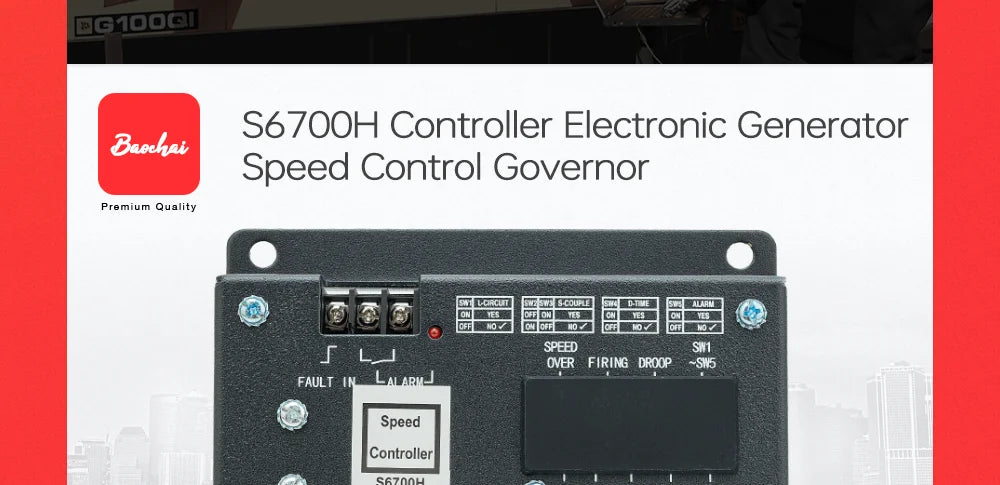

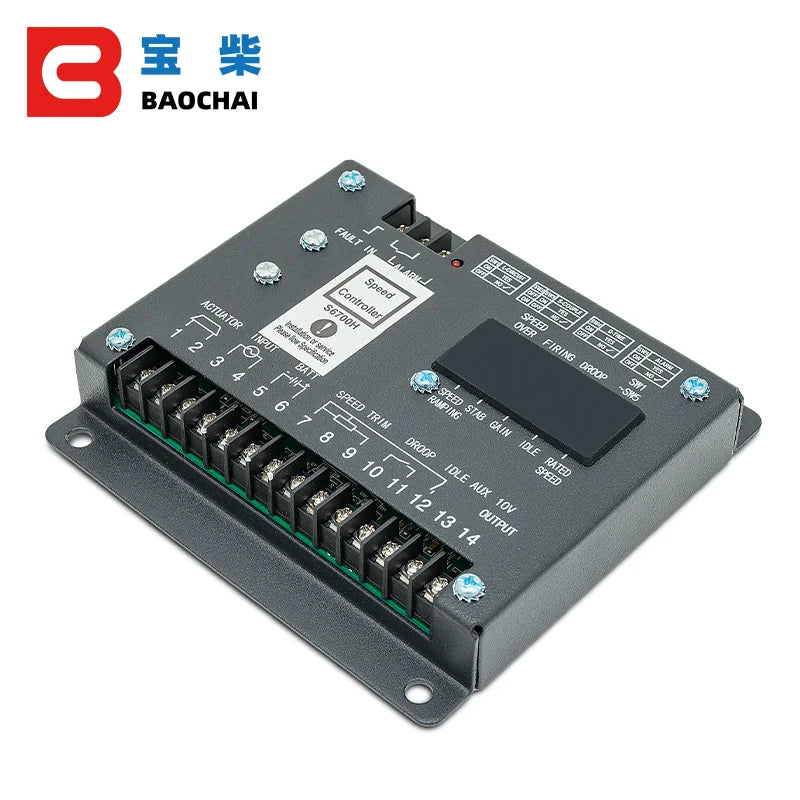

I、Introduction Introduction Introduction Introduction

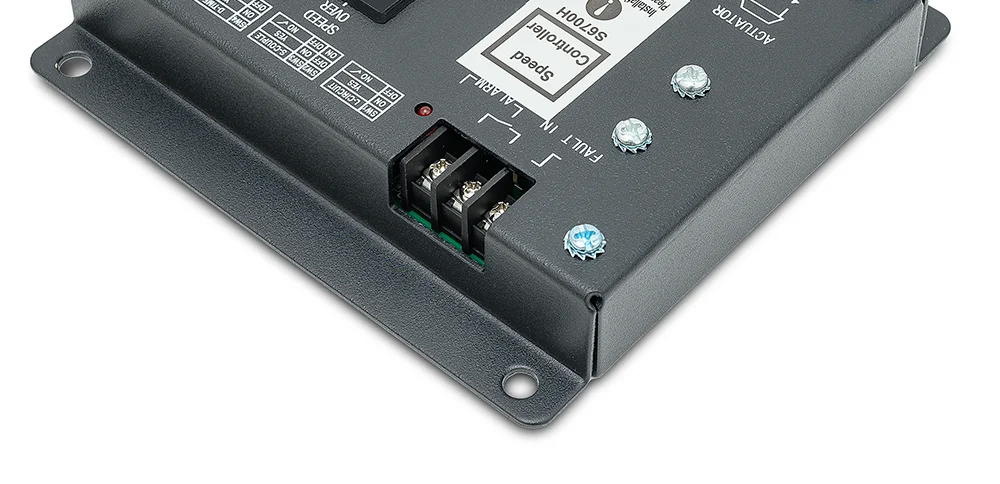

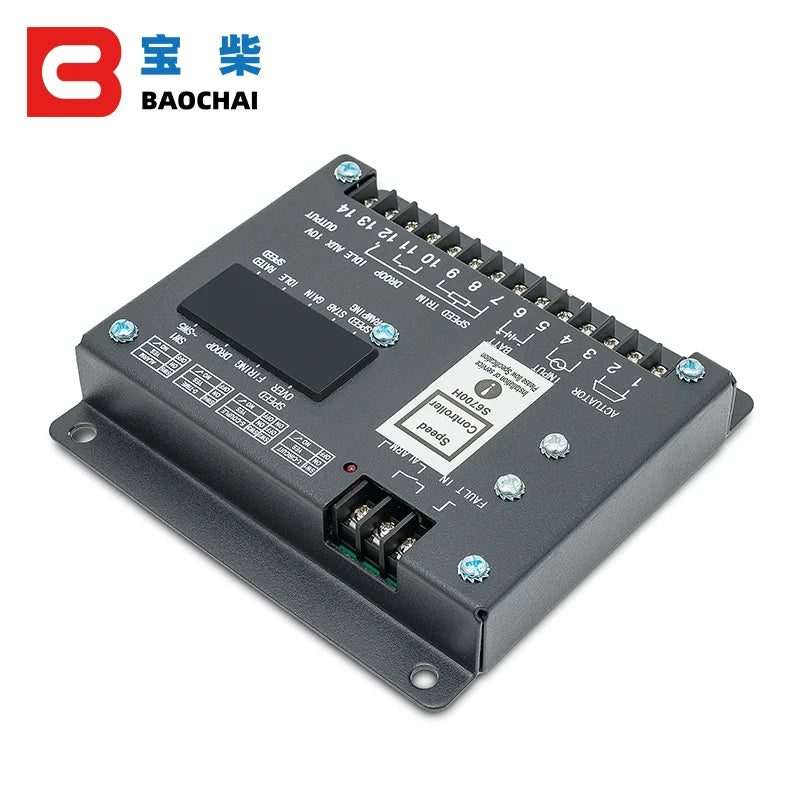

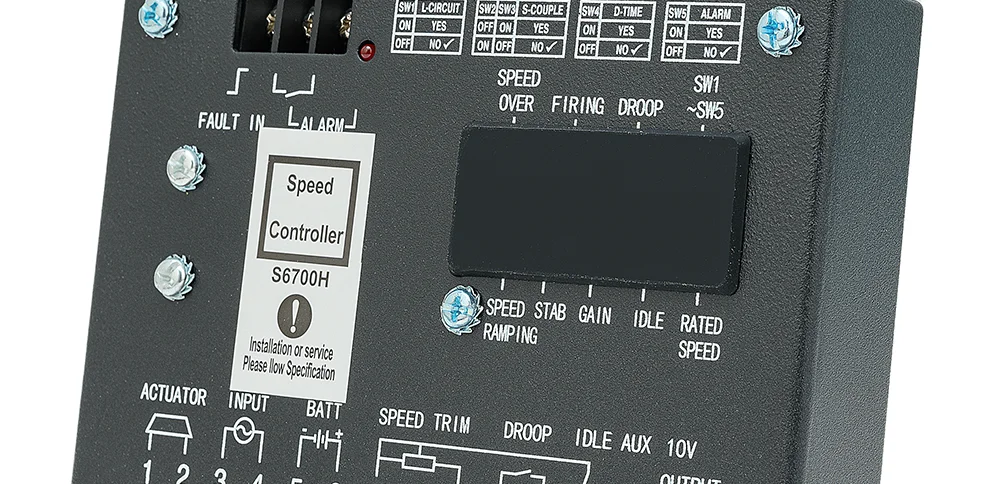

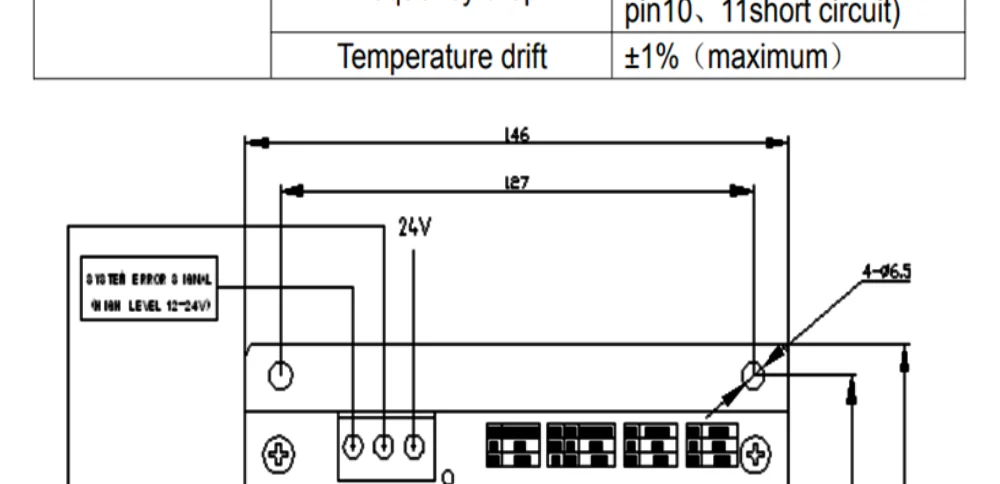

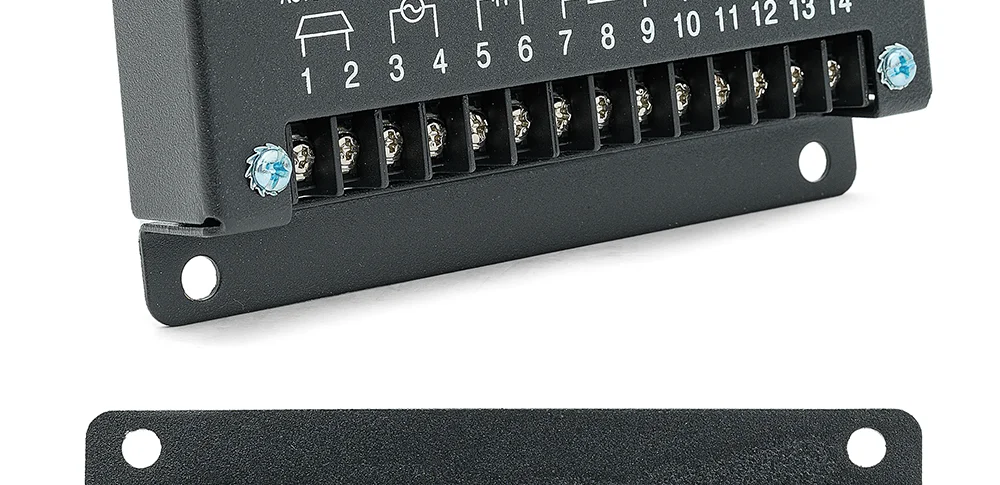

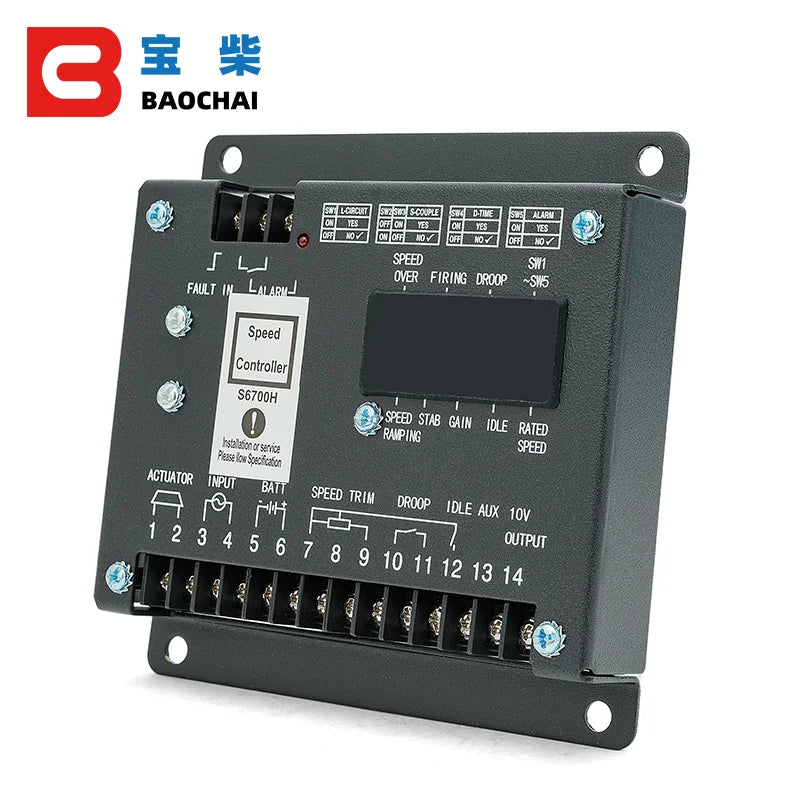

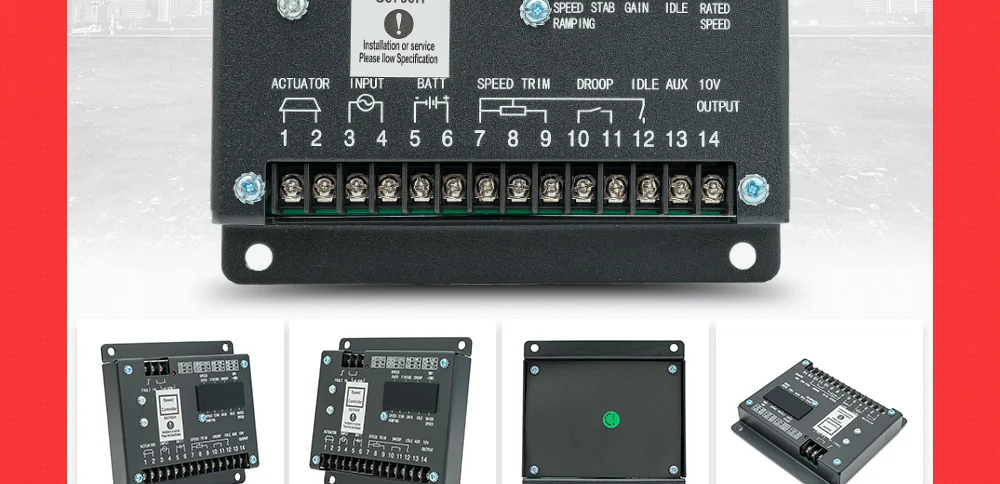

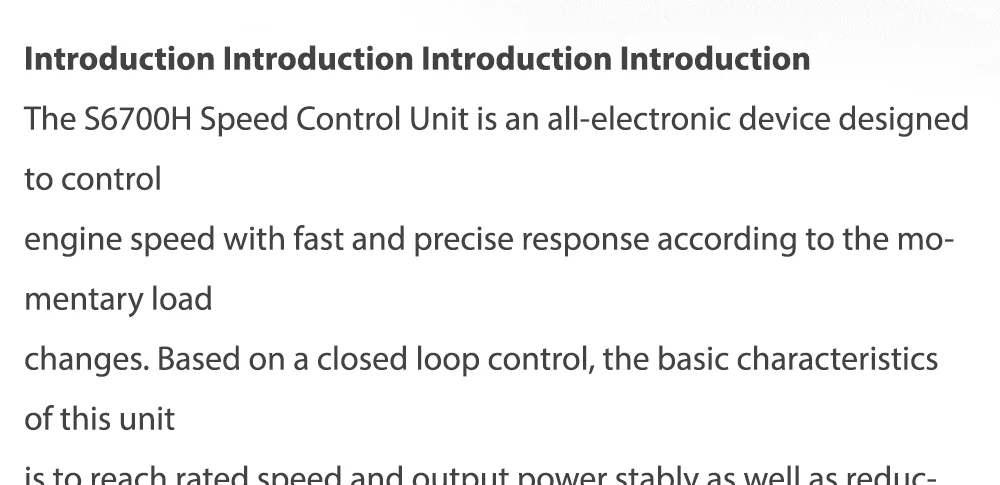

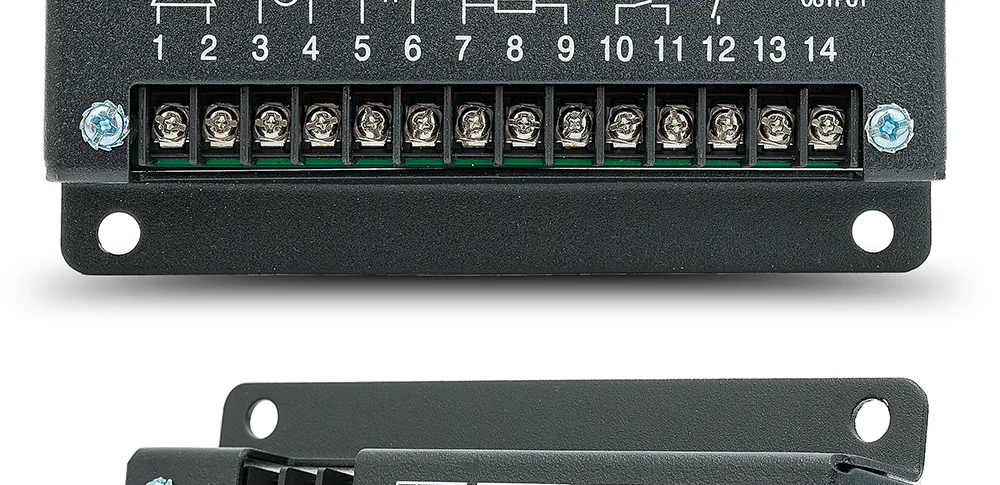

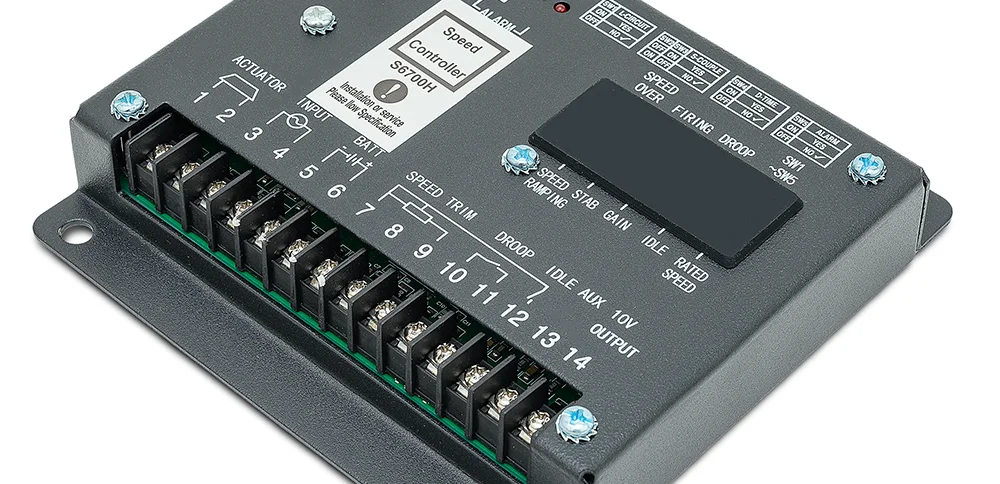

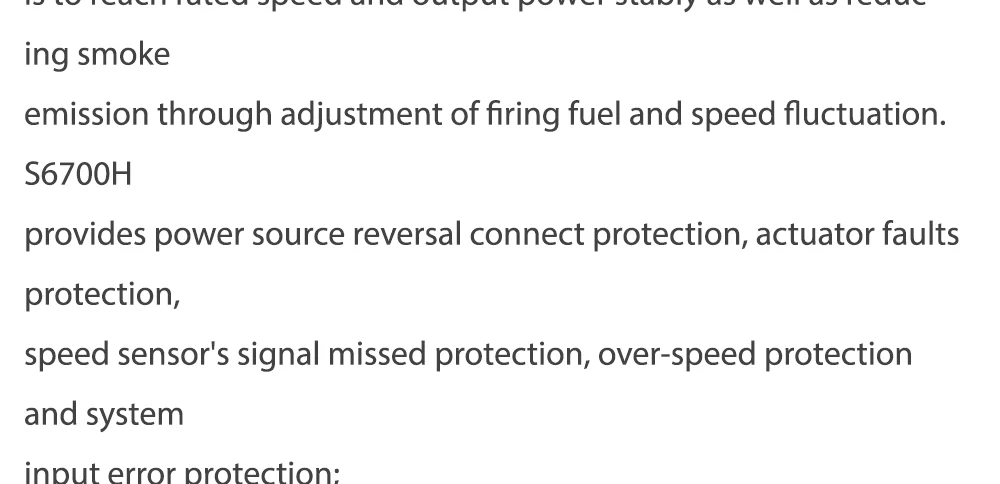

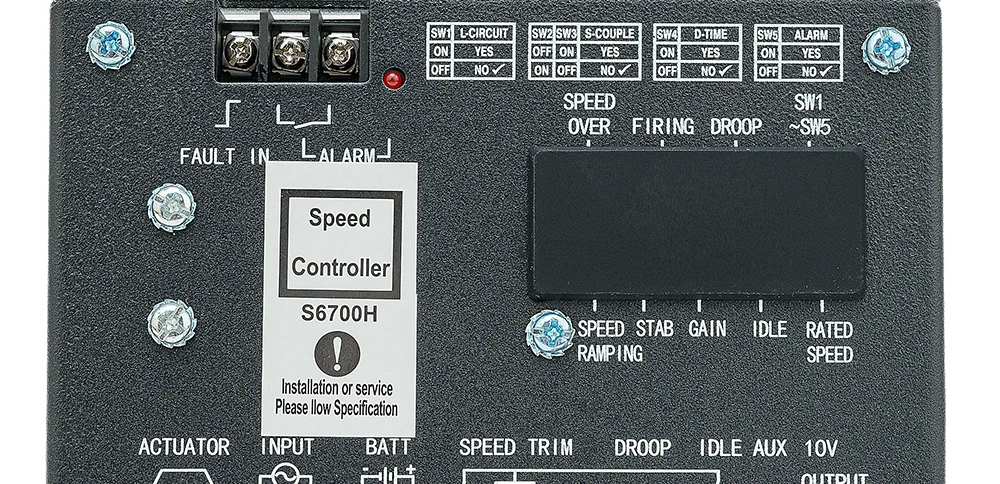

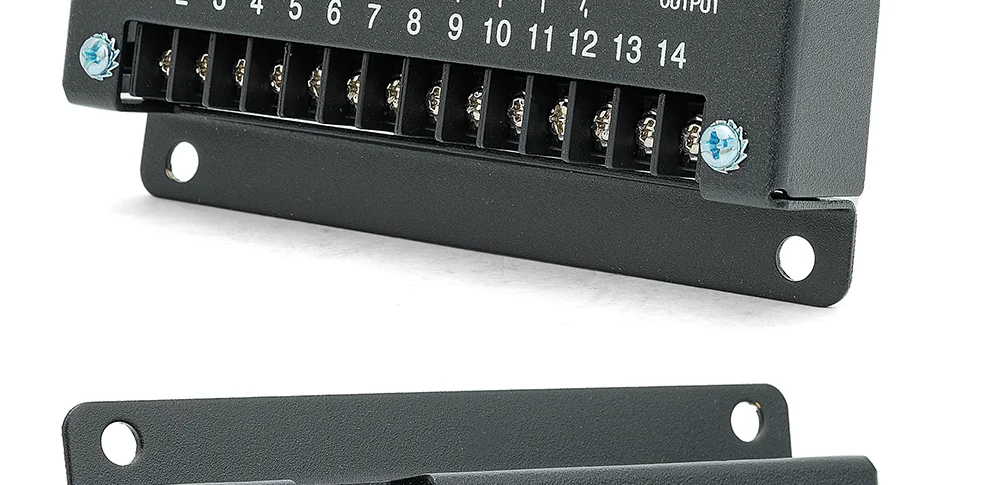

The S6700H Speed Control Unit is an all-electronic device designed to control

engine speed with fast and precise response according to the momentary load

changes. Based on a closed loop control, the basic characteristics of this unit

is to reach rated speed and output power stably as well as reducing smoke

emission through adjustment of firing fuel and speed fluctuation. S6700H

provides power source reversal connect protection, actuator faults protection,

speed sensor’s signal missed protection, over-speed protection and system

input error protection;

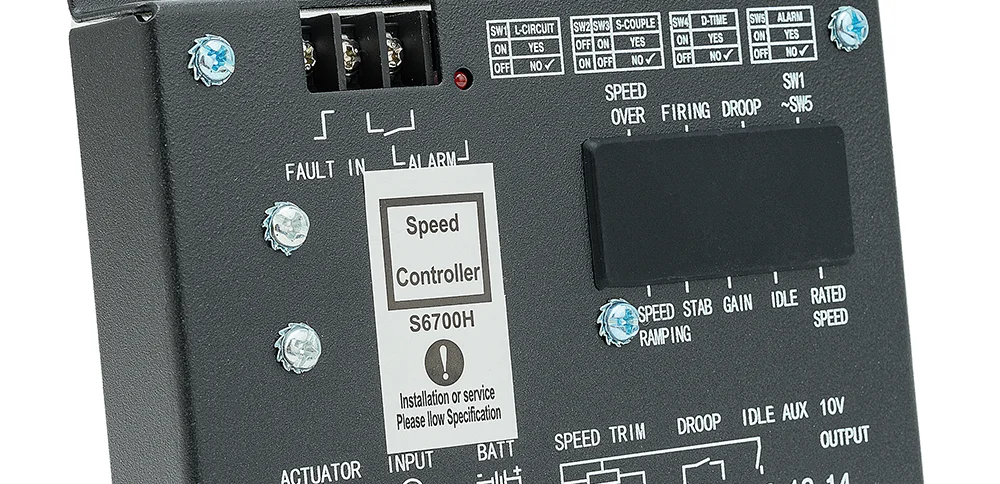

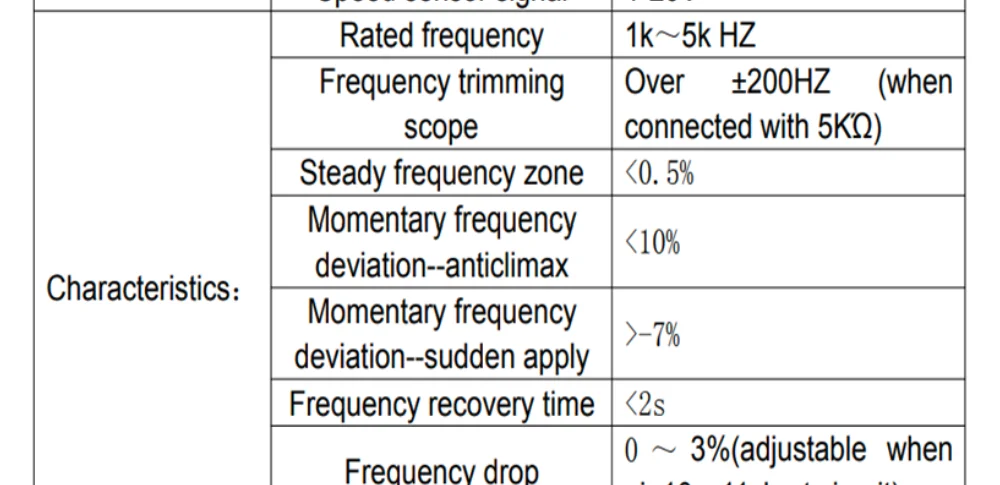

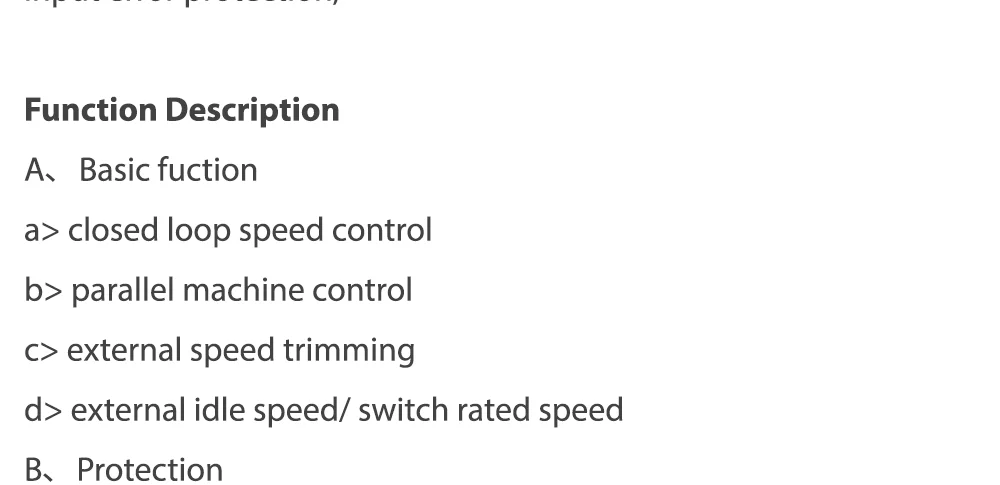

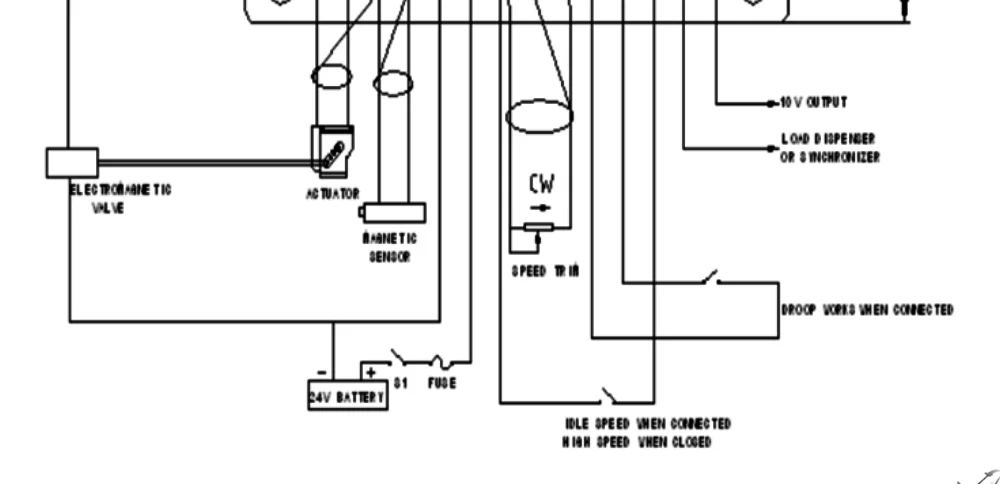

Function Description

A、Basic fuction

a> closed loop speed control

b> parallel machine control

c> external speed trimming

d> external idle speed/ switch rated speed

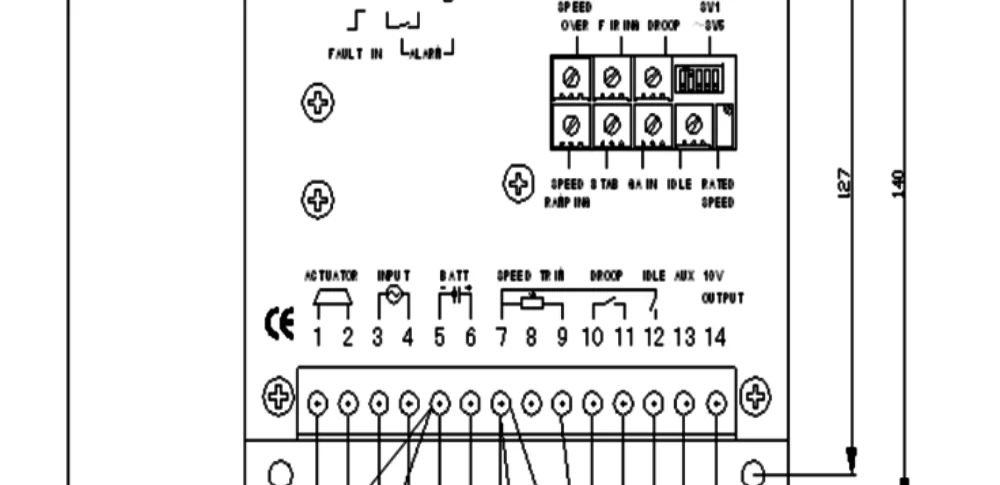

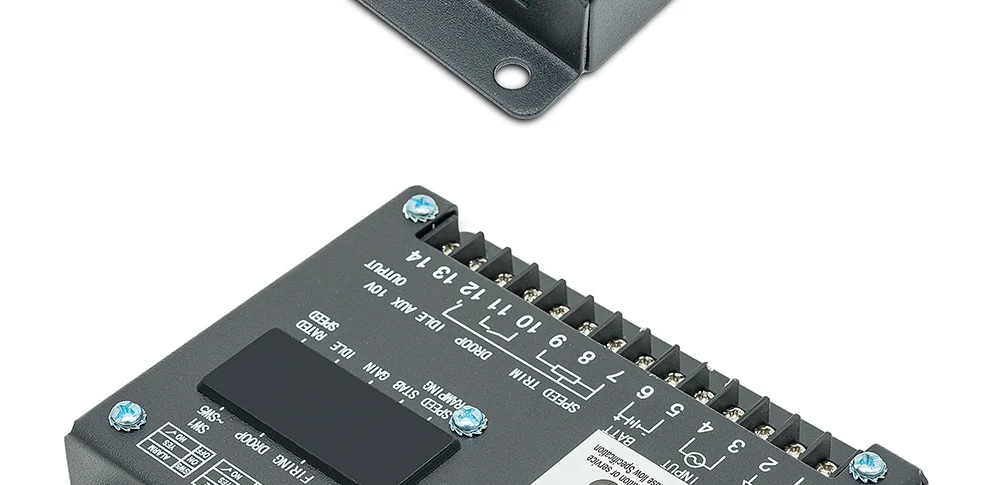

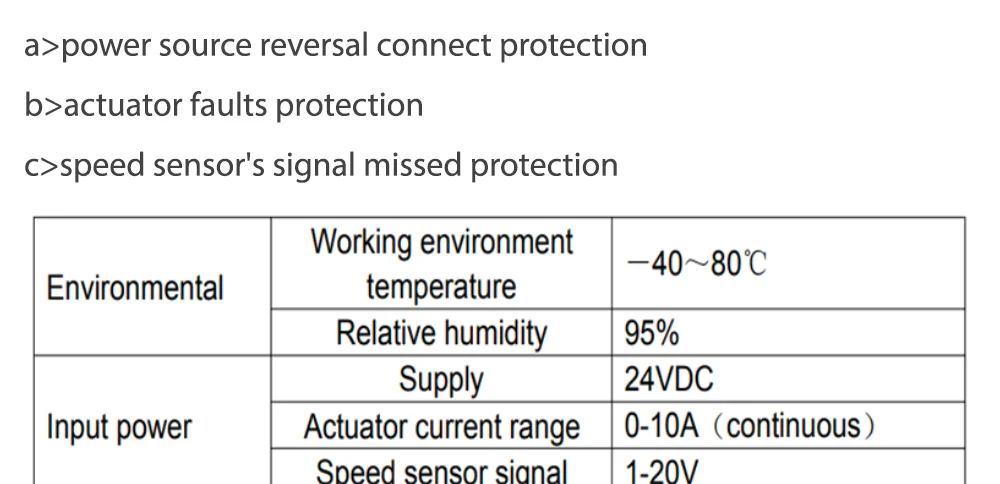

B、Protection

a>power source reversal connect protection

b>actuator faults protection

c>speed sensor’s signal missed protection
