SPECIFICATIONS

Application: Industrial Cleaning Equipment

Brand Name: NONE

Electric: No

Feature: High Efficiency Cleaning

Frequency: 200KHz

High-concerned chemical: None

Item Name: Ultrasonic Piezoelectric Transducer

Keywords: Ultrasonic Transducer

Model Number: PLS-QXHNQ20020

Origin: Mainland China

Other name: Piezo Ceramic Sensor

Power: 20W

Product name: Ultrasonic Cleaning Transducer

Type: Ultrasonic Cleaner Parts,Ultrasonic Cleaner Parts

Usage: Industrial Cleaning

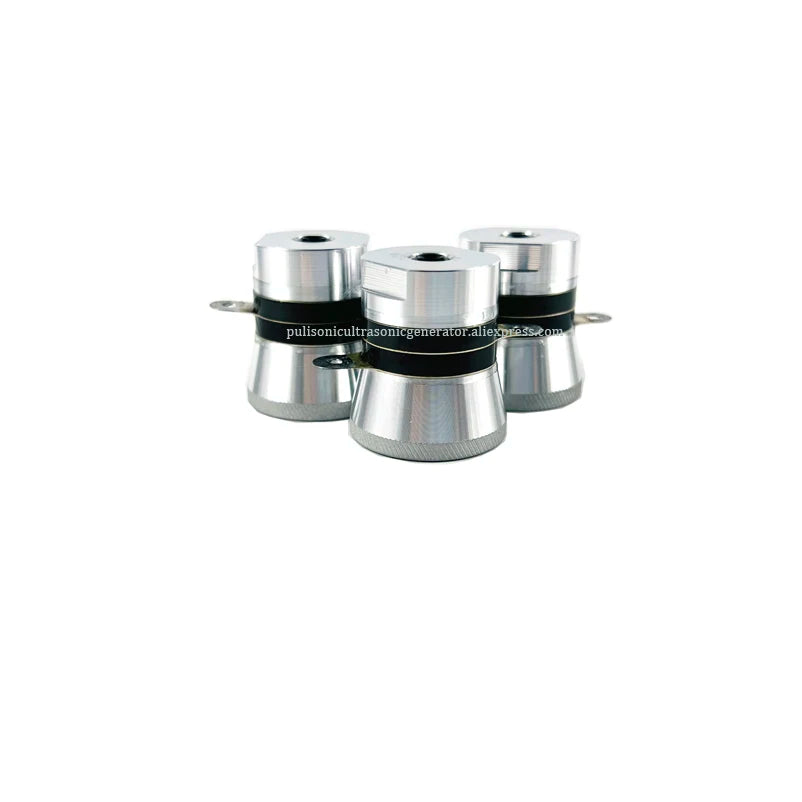

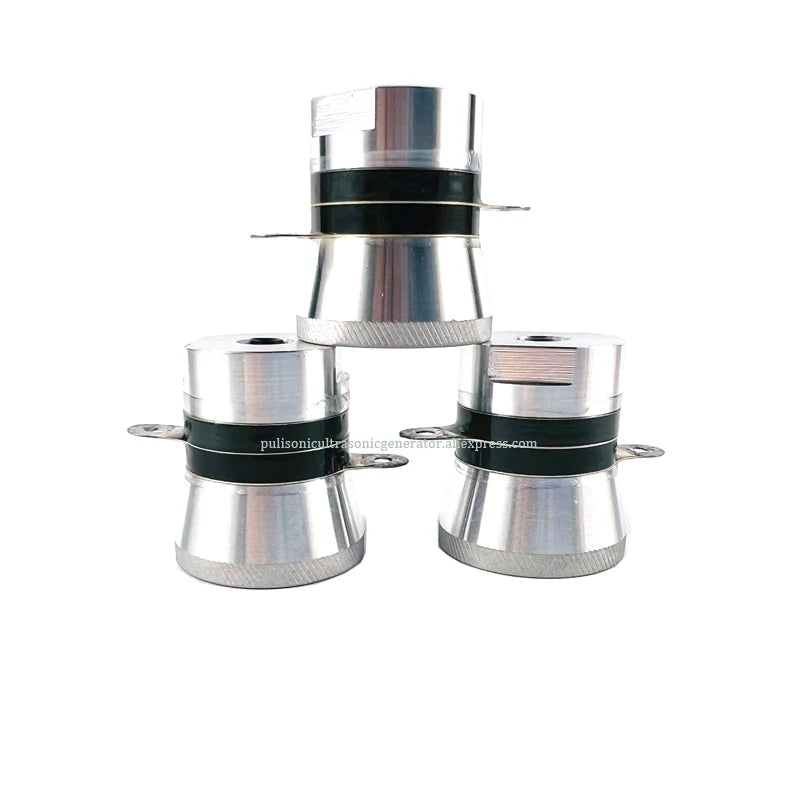

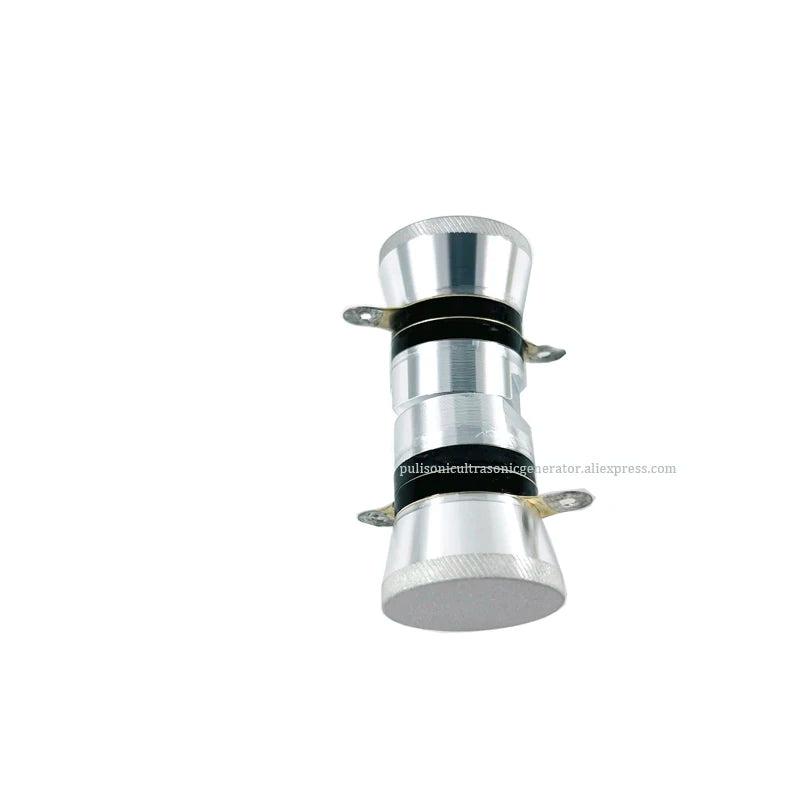

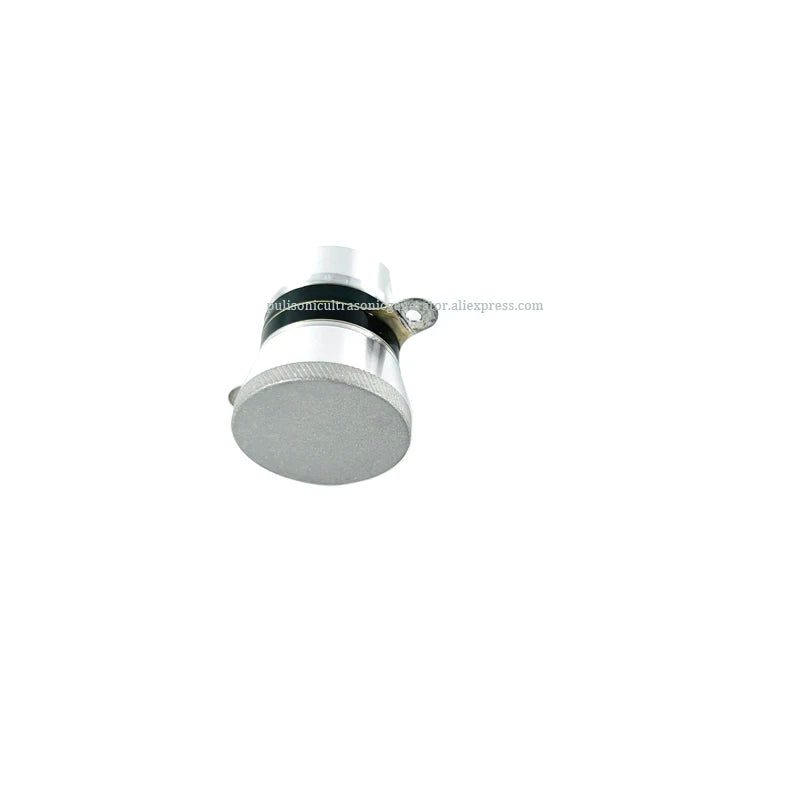

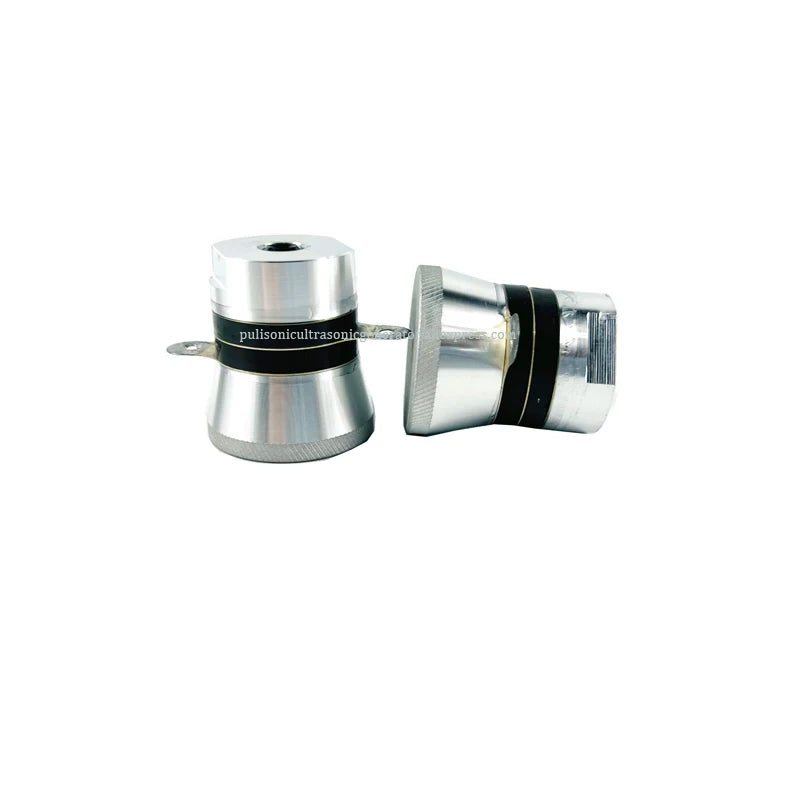

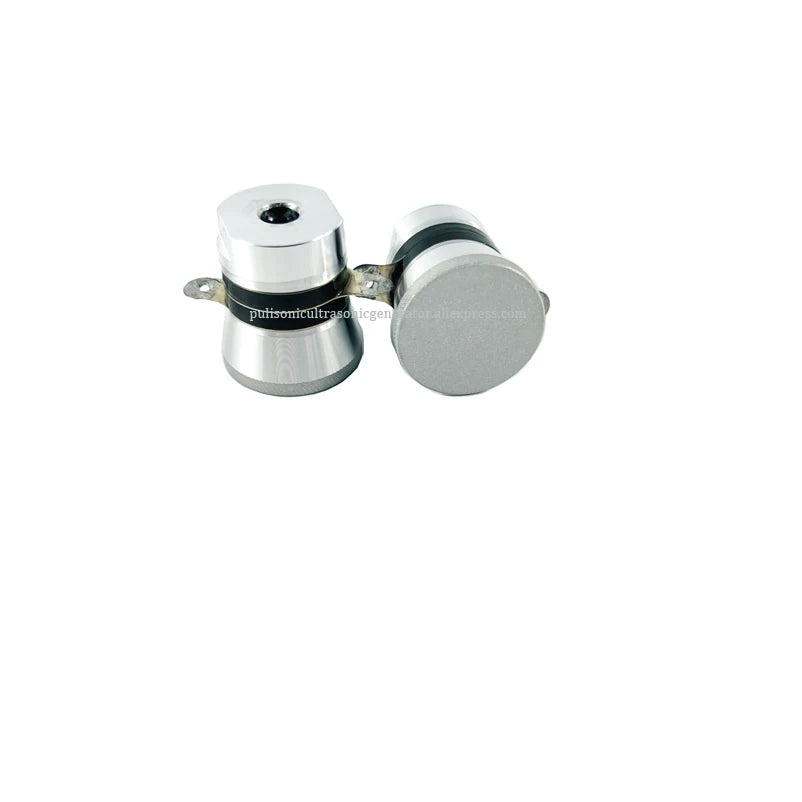

Piezo Ceramic Ultrasonic Transducer For Small Precision Parts Cleaner

Introduction to ultrasonic transducer:

Ultrasonic vibrator, also known as ultrasonic vibrator, is a kind of ultrasonic transducer and the core component of ultrasonic cleaning machine. Industry standard name: ultrasonic transducer, which belongs to piezoelectric ceramic material and one of the main accessories of ultrasonic cleaning machine. In terms of power, a single ultrasonic vibrator is 60W and 100W. Frequency: 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 54khz, 68KHz, 80kHz, 100kHz, 120kHz, 135KHz or higher; There are differences in shape: straight column, horn, etc.

Features of ultrasonic transducer:
1. High performance: high mechanical Q value, high conversion efficiency and good quality;
2. Ultrasonic vibrator transducer has large amplitude and superior performance;
3. Heat resistance of ultrasonic vibrator transducer: Piezoelectric ceramic material has good heat resistance, can expand the temperature range of use, at the same time, the Q value is high, the resonance impedance is small, and the heat generation is small;
4. The appearance of the ultrasonic vibrator transducer is clean, free of rust, no obvious dents and scratches.

The mechanism of ultrasonic cleaning transducer is to make use of the physical effects such as cavitation, radiation pressure and sound flow in the cleaning liquid. It can exfoliate the machinery produced by the dirt on the cleaning parts, and can also promote the chemical reaction between the cleaning liquid and the dirt, so as to achieve the purpose of cleaning the object. The frequency of the ultrasonic cleaning machine can be selected by 10~200 kHz according to the size and purpose of the cleaning material, generally more than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleaning has become more and more widely used in various industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and medical research..

any changes in appearance or internal structure caused by ultrasonic transducer upgrades or optimizations shall ultimately be based on the actual product.
