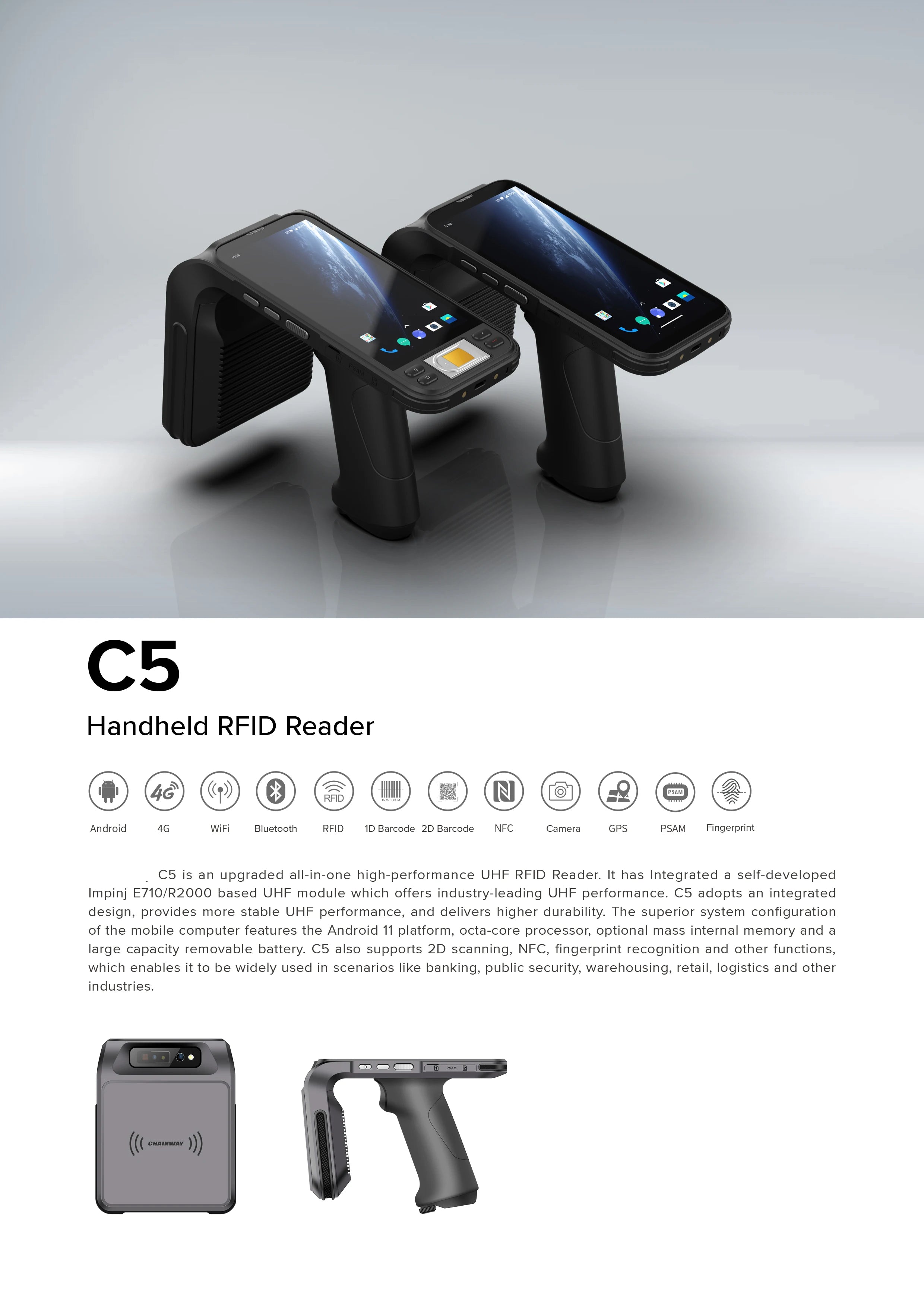

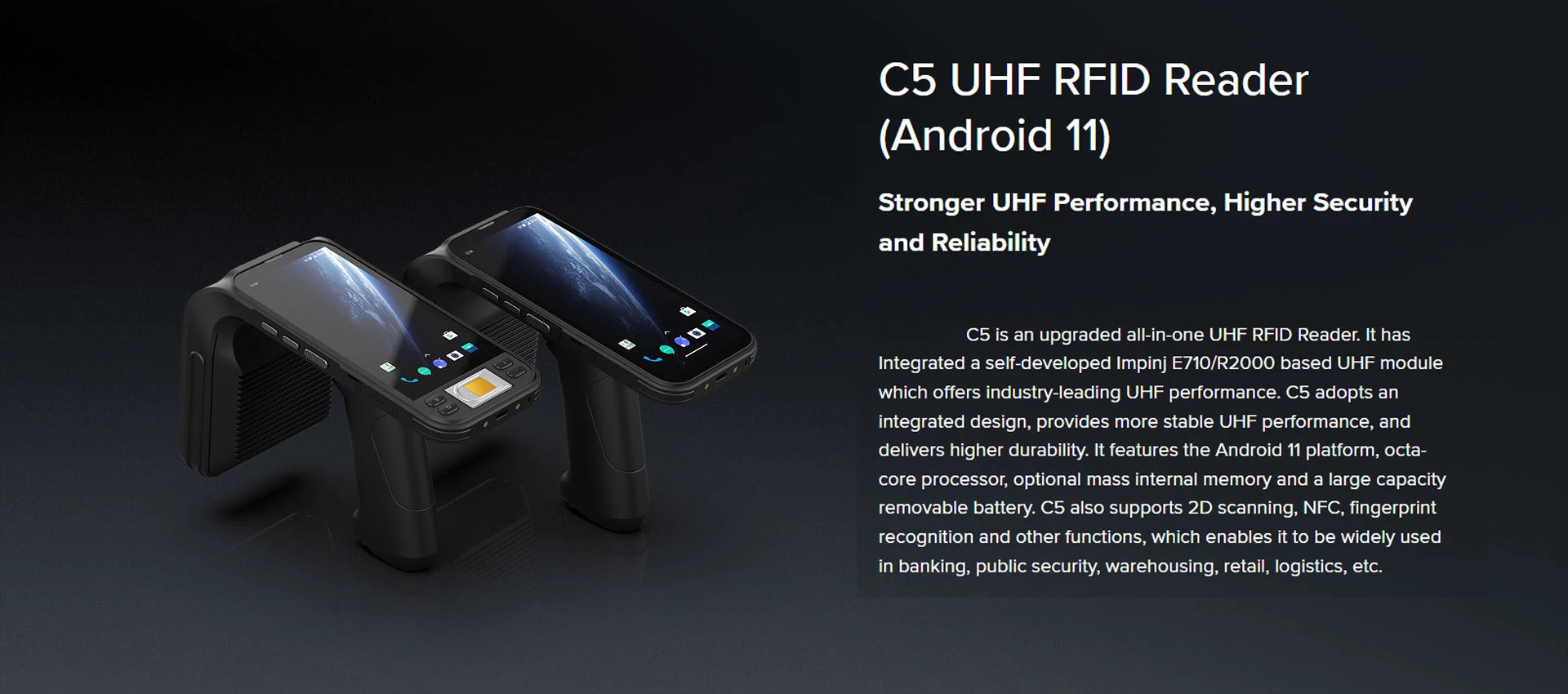

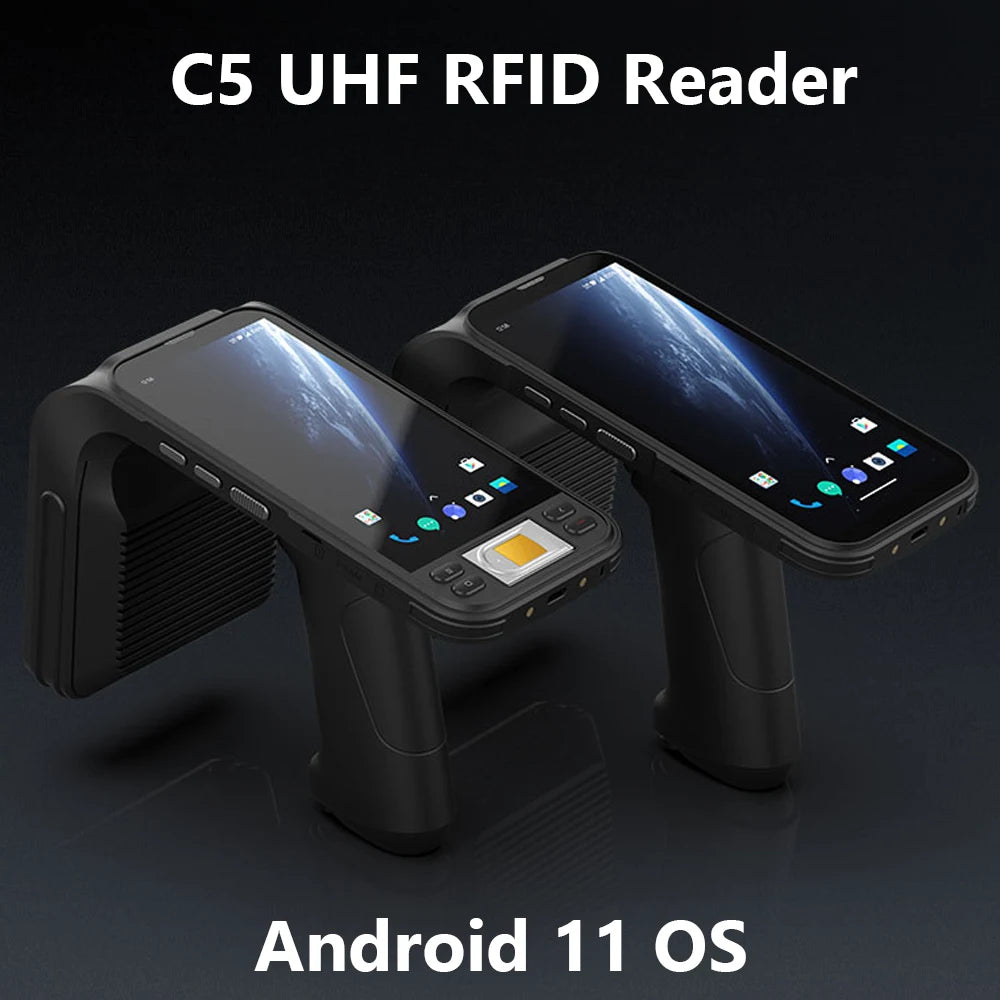

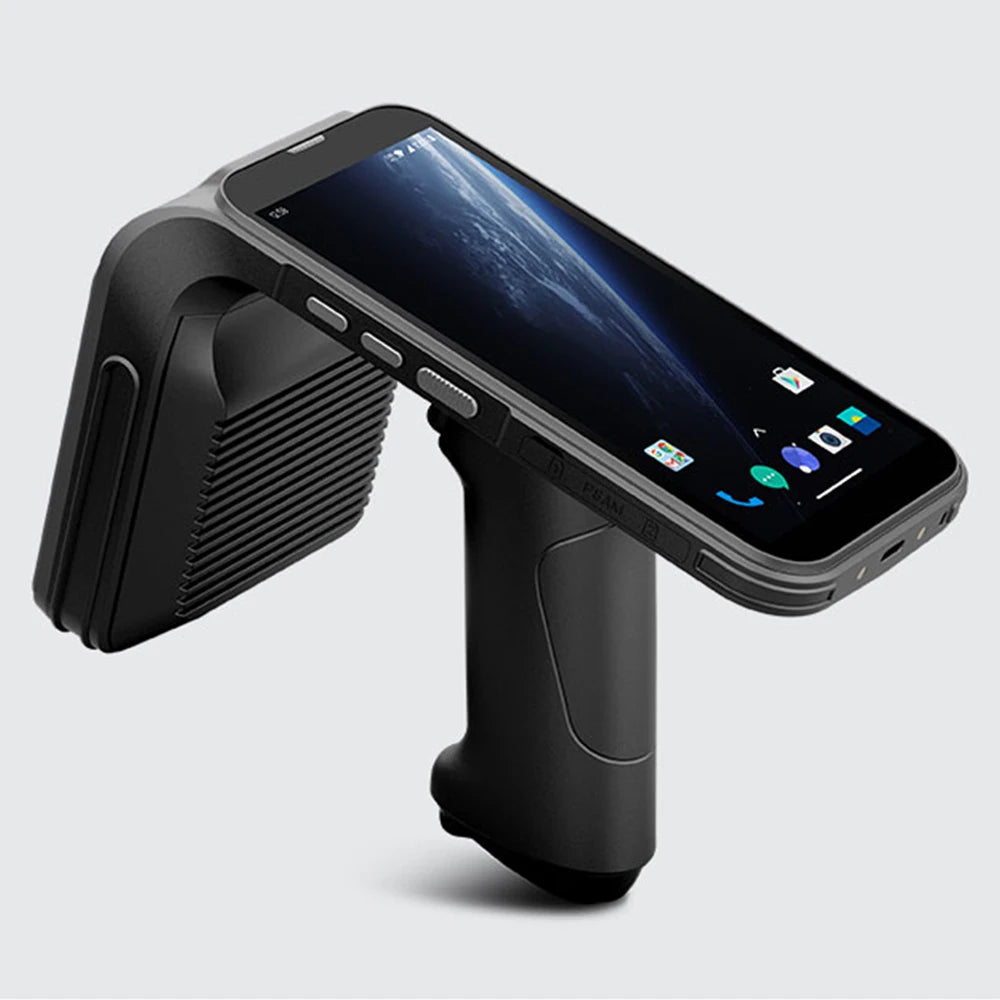

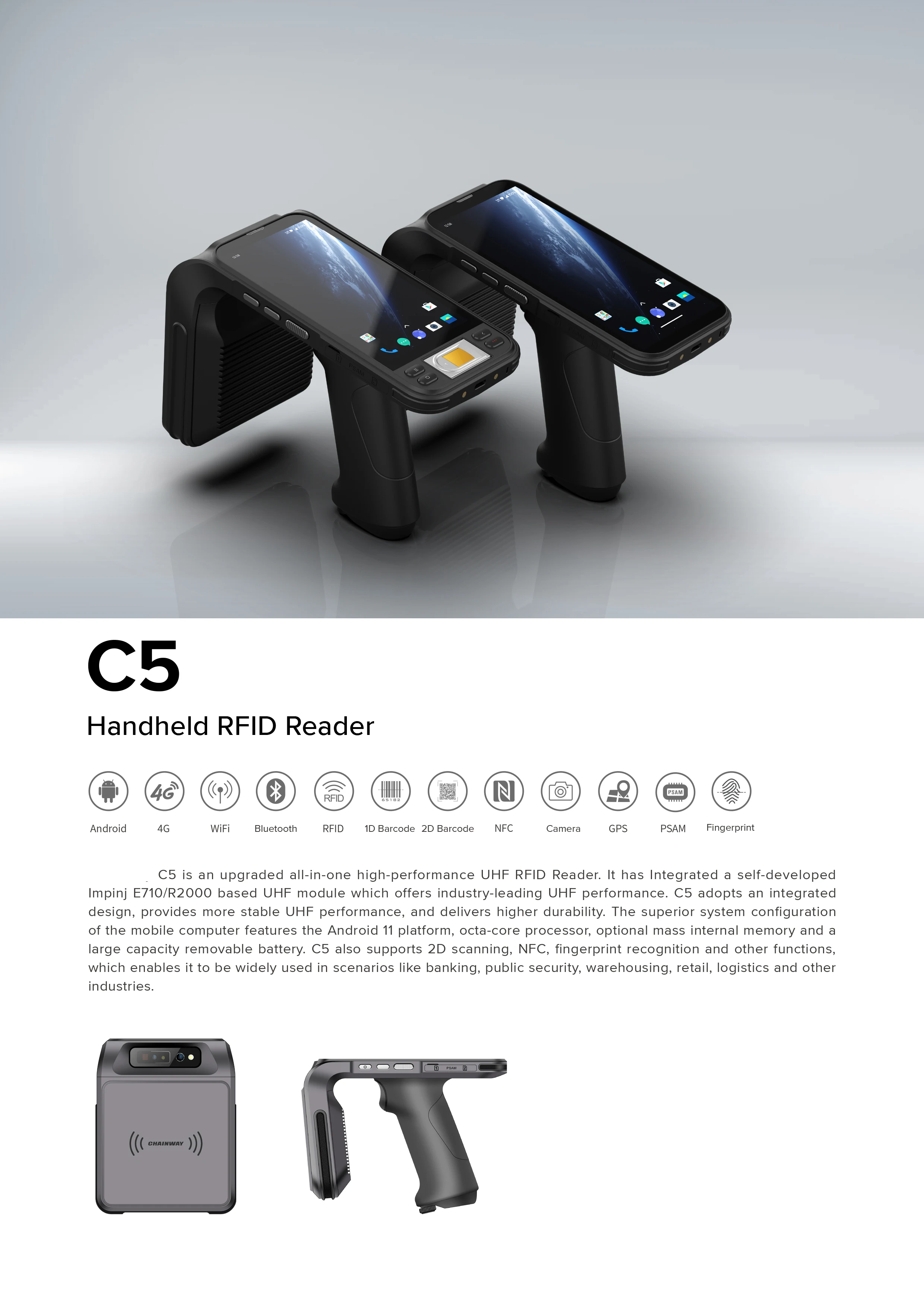

6 Inch Rugged Android PDA Barcode Scanner UHF Rfid Reader Antenna Mobile Industrial Handheld Terminal with Fingerprint Reader
6 Inch Rugged Android PDA Barcode Scanner UHF Rfid Reader Antenna Mobile Industrial Handheld Terminal with Fingerprint Reader
🔒 B2B Purchasing Managers: Log in via our Wholesale Portal to unlock contracted tier discounts (Up to 12% off). / Inicie sesión para desbloquear precios de mayoreo.
100% Encrypted Payment | 📦 Insured Shipping

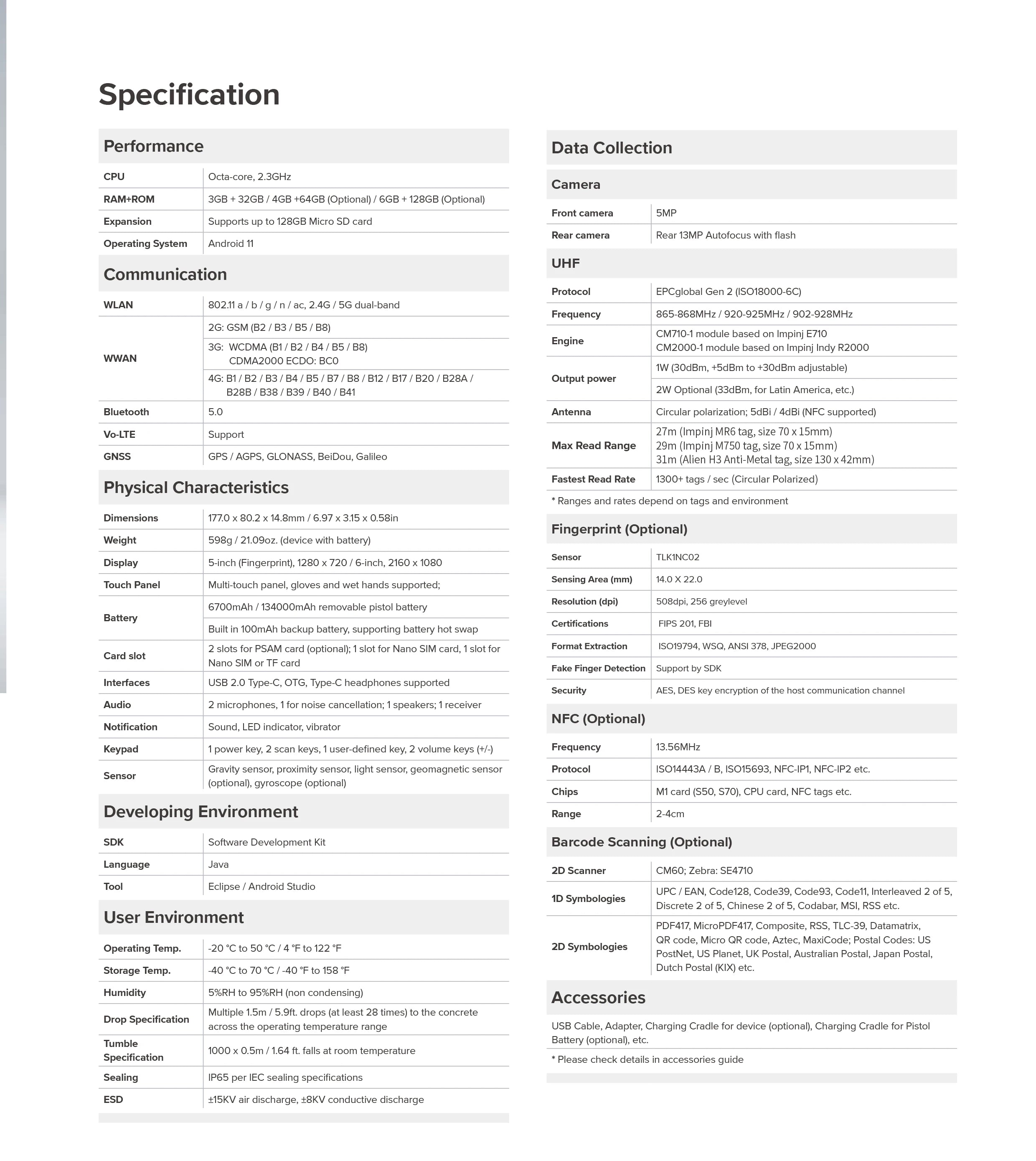

SPECIFICATIONS
Brand Name: MSENCH
Certification: CE,FCC,RoHS,KC
High-concerned chemical: None
Model Number: C5
Origin: Mainland China
Product name: 6 Inch Rugged Android PDA Barcode Scanner UHF Rfid Reader Antenna Mobile Industrial Handheld Terminal with Fingerprint Reader
Basic Features:
Android 11.0, MT6765 Octa-core, 2.3GHz, 3+32, + 6‘’ screen +NFC+4G+WIFI+BT+GPS+ 5MP FFC & 13MP RFC Camera, including UHF RFID R2000 or E710, pistol & antenna included

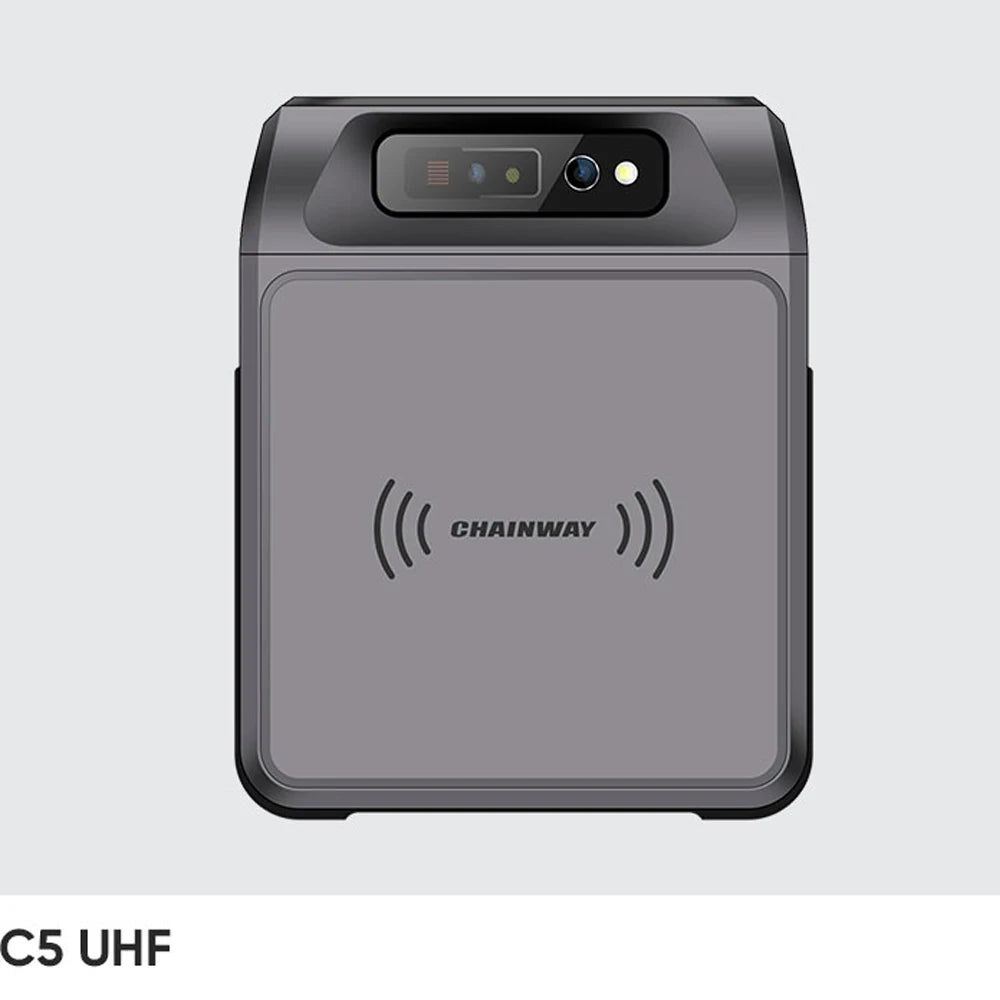

Option1:Basic with UHF

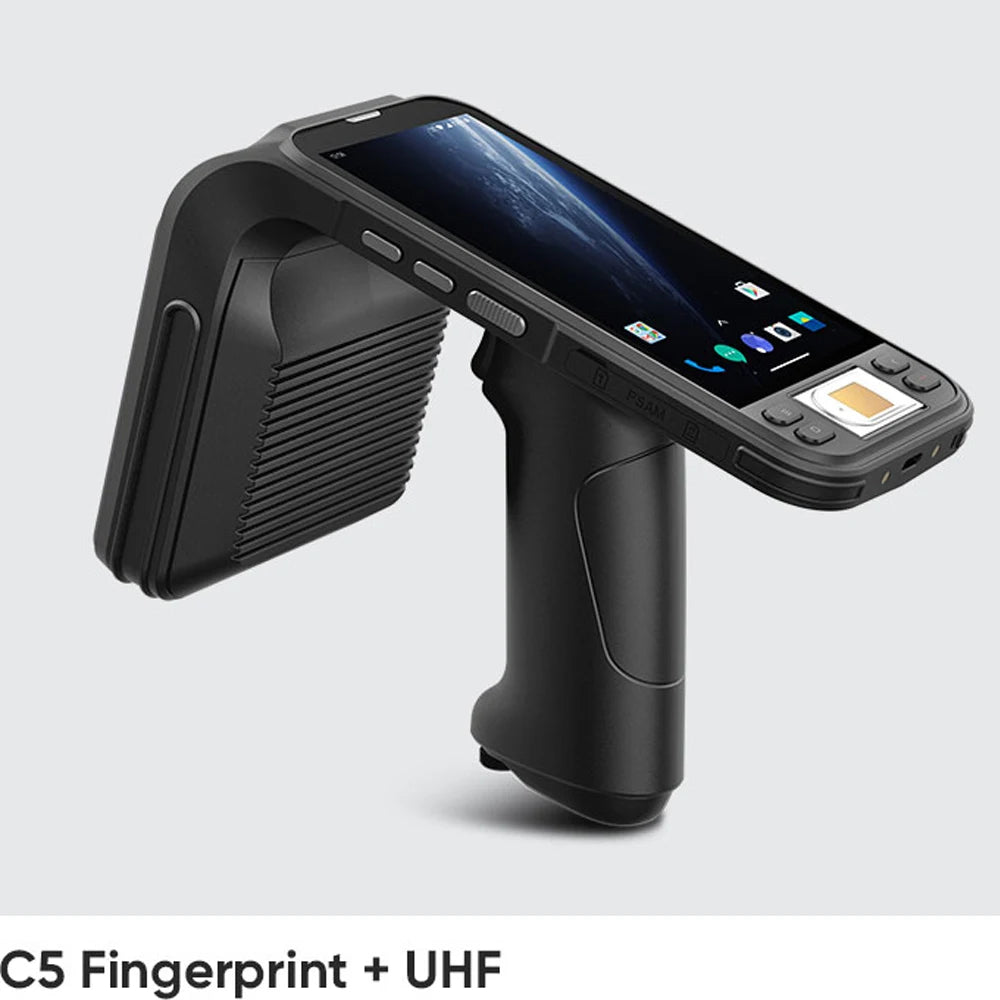

Option2:Basic with UHF+Fingerprint Reader
Option3:Basic with UHF+Newland 2D Barcode Scanner
Option4:Basic with UHF+Fingerprint Reader+Newland 2D Barcode Scanner
if you need other functions please contact our seller to more customization.
Tina Chen +86 13076981898 tina@msench.com
Developing Environment | |
Operating System |
Android 11 |
SDK |
Chainway Software Development Kit |
Language |
Java |
Tool |
Eclipse / Android Studio |
Performance | |
CPU |
Octa-core, 2.3GHz |
RAM+ROM |
3GB + 32GB |
Expansion |
Supports up to 128GB Micro SD card |
Physical Characteristics | |
Dimensions |
177.0 x 80.2 x 14.8mm / 6.97 x 3.15 x 0.58in |
Weight |
598g / 21.09oz. (device with battery) |
Display |
5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080 |
Touch Panel |
Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass |
Power |
6700mAh / 13400mAh removable pistol battery |
Notification |
Sound, LED indicator, vibrator |
Interfaces |
USB 2.0 Type-C, OTG, Type-C headphones supported |
Card slot |

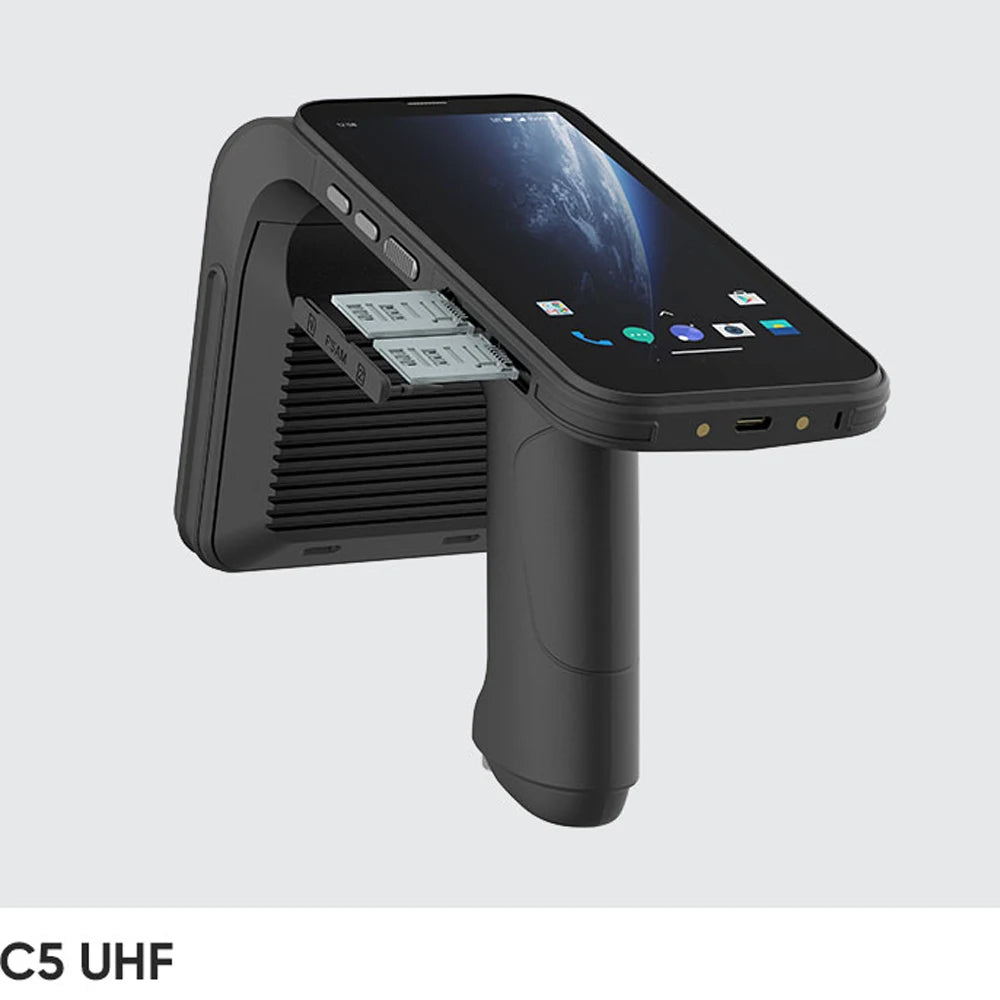

2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
Audio |
2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver |
Keypad |
1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-) |
Sensors |
Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional) |
Communication | |
WLAN |
802.11 a / b / g / n / ac, 2.4G / 5G dual-band |
WWAN |
2G: GSM (B2 / B3 / B5 / B8) |
Bluetooth |
5.0 |
Vo-LTE |
Support |
GNSS |
GPS / AGPS, GLONASS, BeiDou, Galileo |
Barcode Scanning | |
2D Imager Scanner |
CM60; Zebra: SE4710 |
1D Symbologies |
UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc. |
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. |
Note |
*This function is optional |
UHF RFID | |
Engine |
CM710-1 module based on Impinj E710 |
Frequency |
865-868MHz / 920-925MHz / 902-928MHz |
Protocol |
EPCglobal Gen 2 (ISO18000-6C), Impinj Protected Mode Supported |
Antenna |
Circular polarization; 5dBic |
Output Power |
1W (30dBm, +5dBm to +30dBm adjustable) |
Fastest Read Rate |
1300+ tags / sec (Circular Polarized) |
Max Read Range |
27m (Impinj MR6 tag, size 70 x 15mm) |
Note |
* Ranges and rates depend on tags and environment |
NFCFrequency13.56MHzProtocolISO14443A / B, ISO15693, NFC-IP1, NFC-IP2, Impinj Prtoected Mode Supported etc.ChipsM1 card (S50, S70), CPU card, NFC tags etc.Range2-4cmNote* This function is optional
CameraFront Camera5MPRear CameraRear 13MP Autofocus with flash
Fingerprint RecognitionFingerprintTLK1NC02Note* This function is optional
User Environment | |
Operating Temp. |
-20 °C to 50 °C / 4 °F to 122 °F |
Storage Temp. |
-40 °C to 70 °C / -40 °F to 158 °F |
Humidity |
5% RH - 95% RH (non condensing) |
Drop Specification |
Multiple 1.5m / 5.9ft. drops (at least 28 times) to the concrete across the operating temperature range |
Tumble Specification |
1000 x 0.5m / 1.64 ft. falls at room temperature |
Sealing |
IP65 per IEC sealing specifications |
ESD |
±15KV air discharge, ±8KV conductive discharge |
A.For Cost Shipping:
EMS,DHL,Fedex,UPS,express shipping 3-10 working days
B.For free shipping:
Aliexpress standard shipping ways,20-45days
China Post air mail,20-60days
E-package,15-60days
C.Please double check your address before completing your payment.
1.If you are satisfied with our product and service,please leave positive feedback --five stars.And
please press the bottom ‘confirm order received’ on aliexpress.
2.If you are not satisfied with the items, please contact us before you leave the negative feedback.
We will always try our best tosolve the problem.

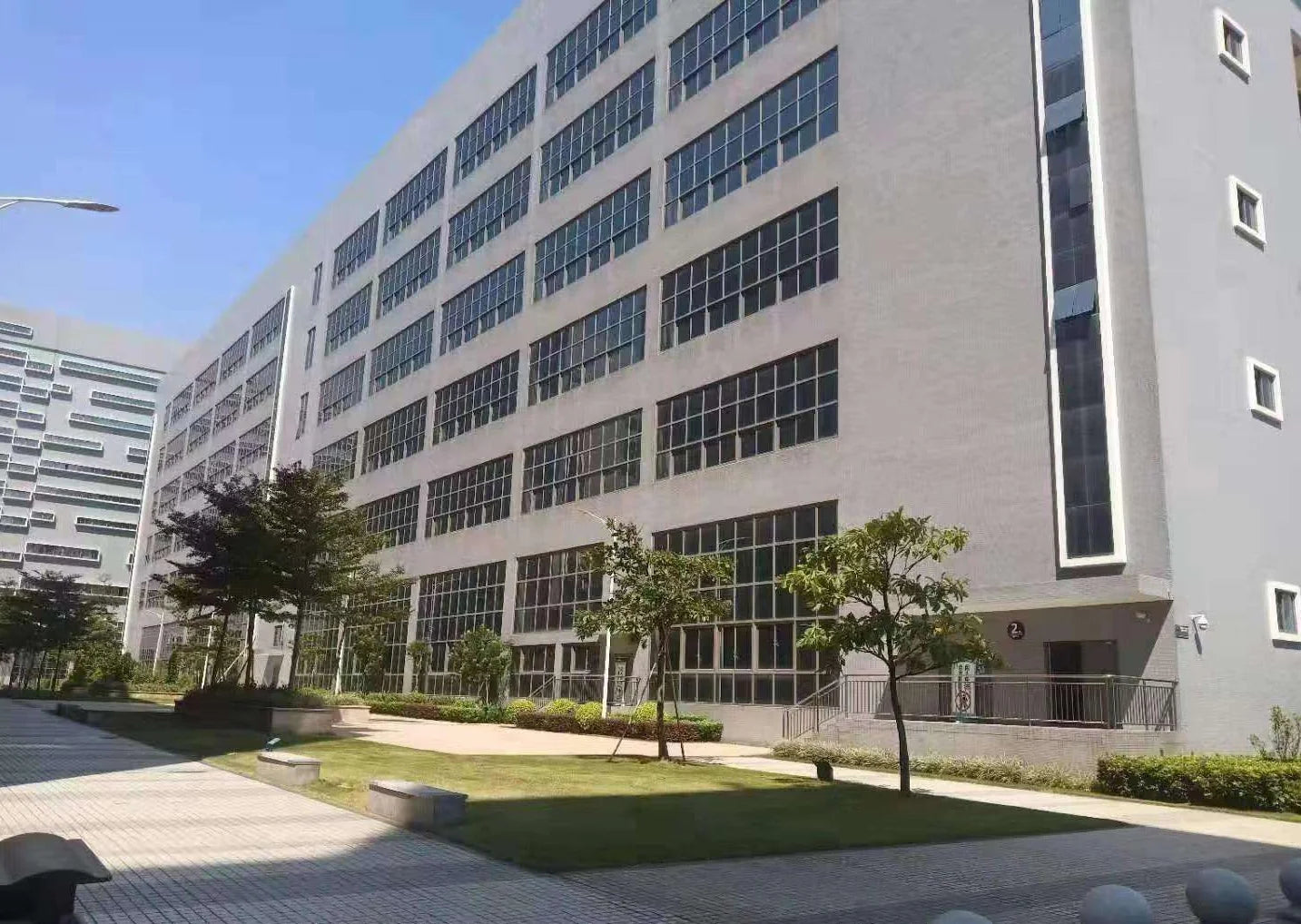

MSENCHTechnology Co., Ltd currently with over 150 employees, the domestic high-tech R&D company of rugged PDA,POS machine,Printer.Tablets PC and Laptop products.Specialized in Barcode Scanner,RFID,Printing Technology.and also the biggest domestic IDH of industry terminal and customization.The Msench with the strategy of Research & Production & Promotion Integration, has set up the professional rugged productsmanufacturing workshop with well-equipped production line, the office work space in 1000 square meter, and also the laboratory in 300 square meter,which effectively combines and links the resources of research, quality, production and sales into great cooperation, further improvesthe product performance and quality, and ensures the timely delivery.Msench basing on the sustainable development of industry's terminal technology,independently proceeds the R&D of fully rugged product series.
