SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Origin: Mainland China
Type: Steam Press Parts
This multi-functional sensor meter can measure Current or Voltage signal input in the range of 0-75mV/4-20mA/0-10V. It can be used with 2-wire transformer, pressure sensor, 4-wire weighing sensor, remote pressure meter resistance transmitters, potentiometers, transducers and other sensor measuring devices.
High precision, stable performance and easy operation.

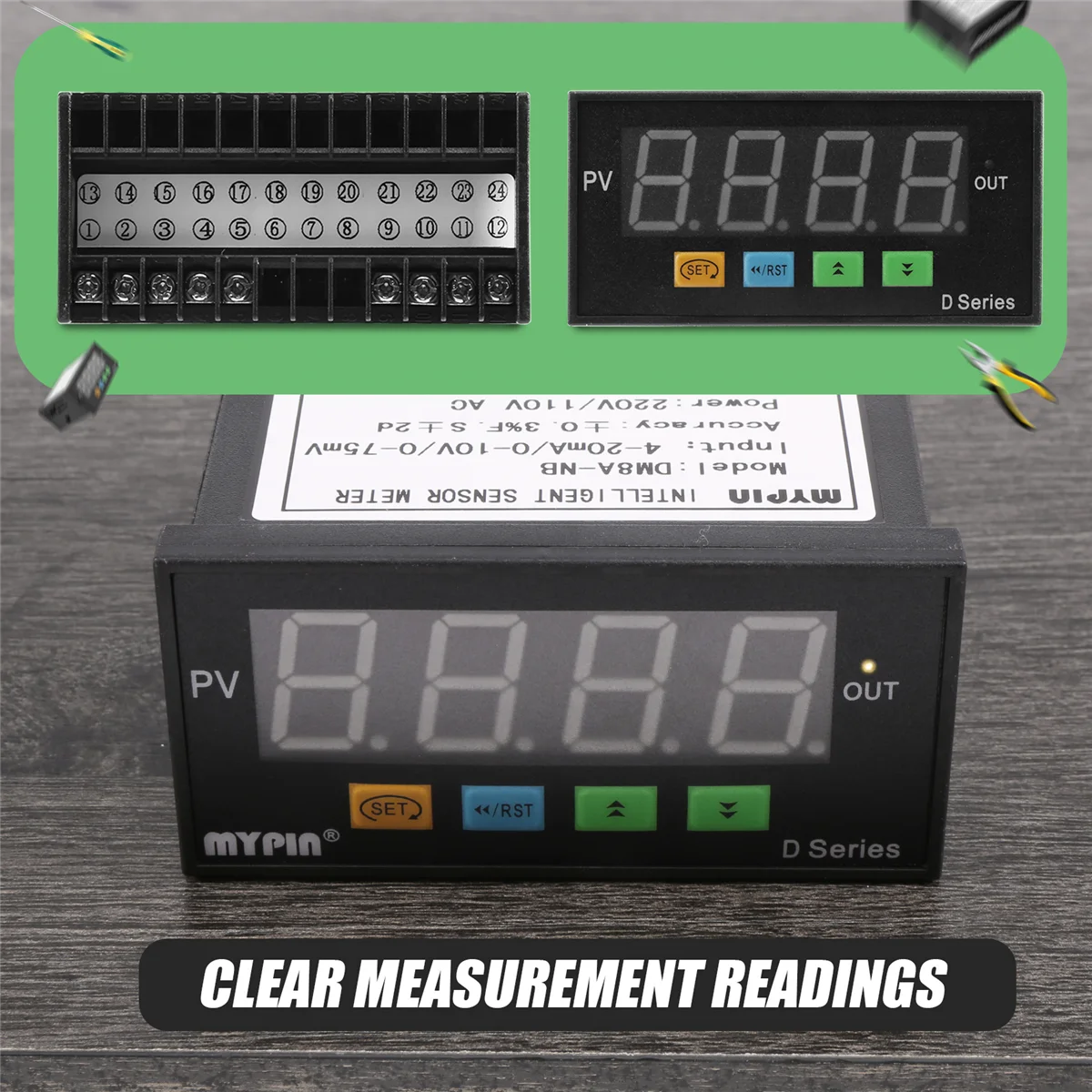

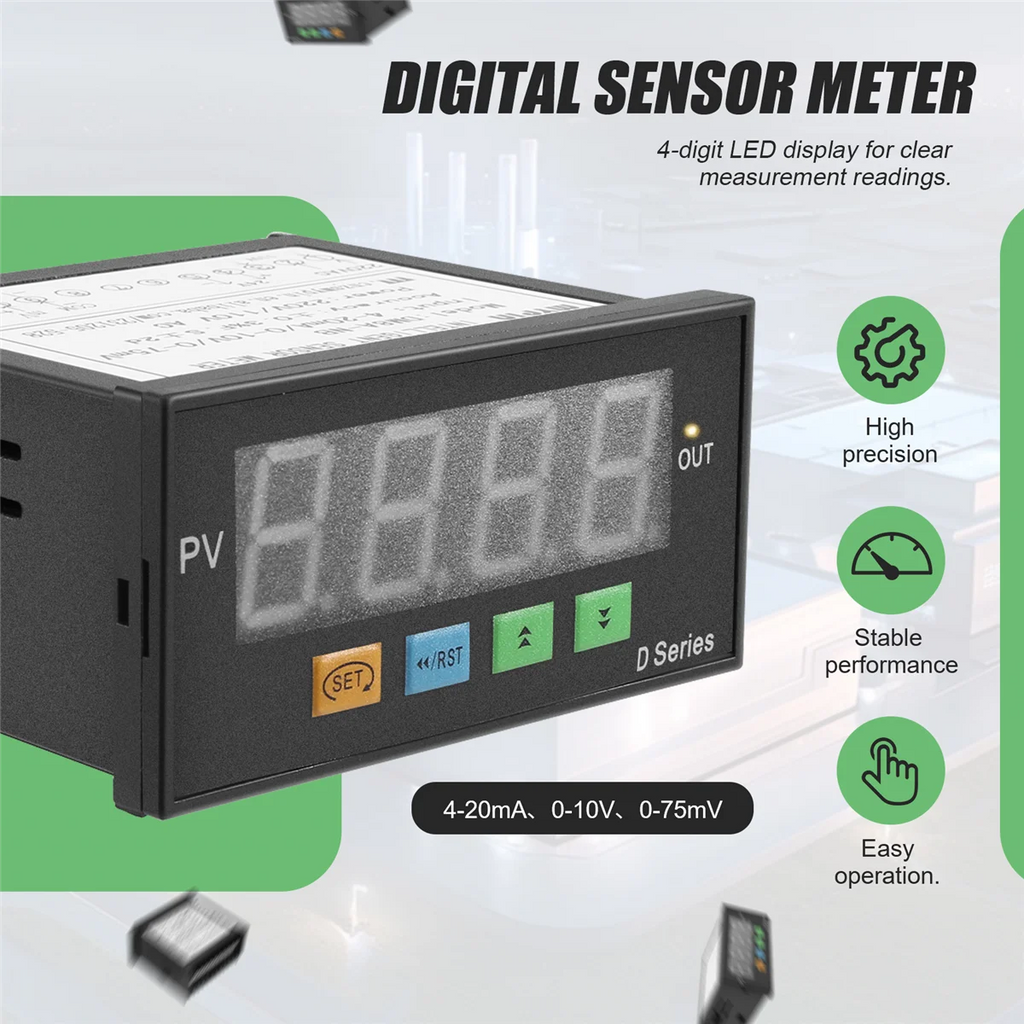

4-digit LED display for clear measurement readings.
Input signal: 4-20mA, 0-10V, 0-75mV.

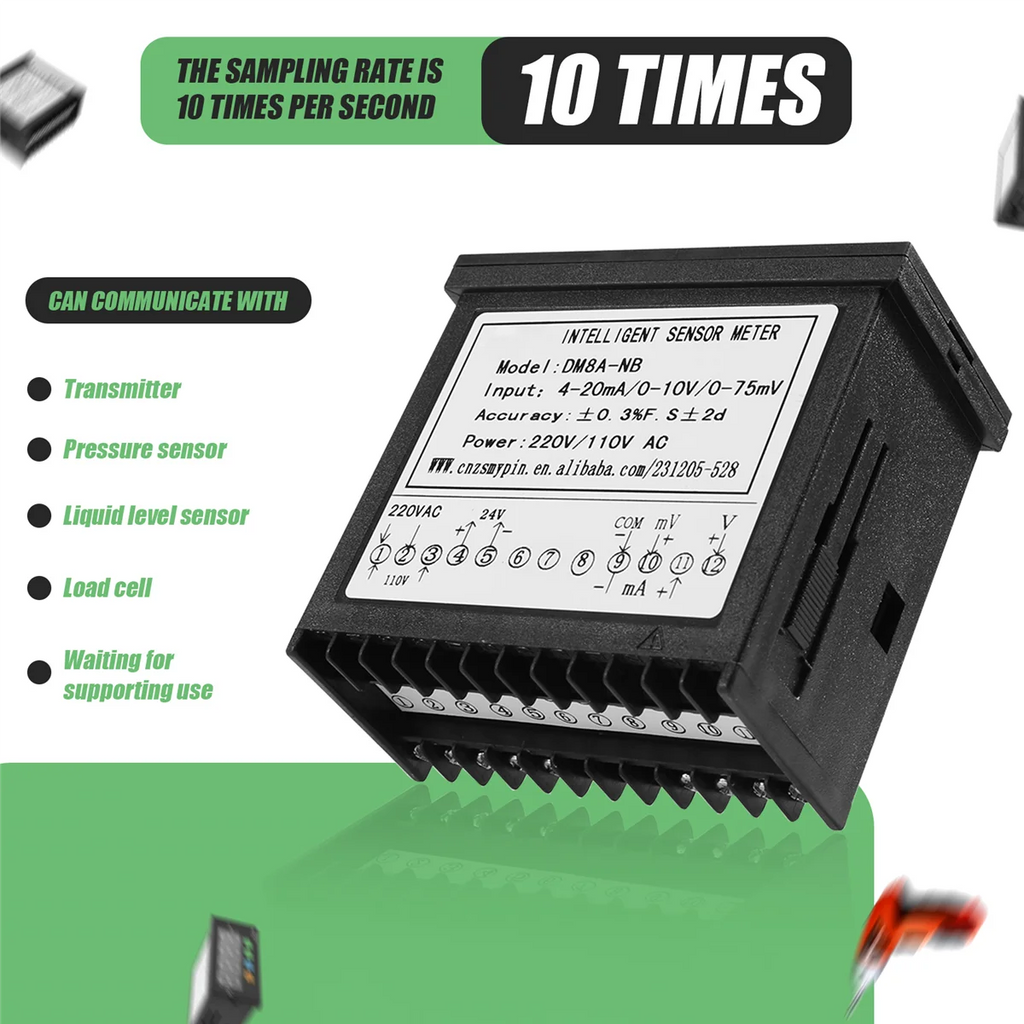

The sampling rate for measurement input is 10 measurements per second. It can be used with transmitter, pressure sensor, liquid level sensor, weighing sensor and so on.
Colour: Black
Material: ABS
Model: DM8A-NB
Power Supply: 110/220V AC
Auxiliary Power Supply: 24V DC
Power Consumption: less than 3W
Accuracy: 0.3%F.SΒ±2dgt
Sampling Rate: β€8 times/second
Input: 4-20mA, 0-10V, 0-75mV
Output: None
Item Size: 95 * 85 * 48mm / 3.74 * 3.35 * 1.89in
Item Weight: 241g / 8.51oz
Package List:
1 * Universal Sensor Meter
2 * Bracket
1 * User Manual (English)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
