• Robotic Actuator with a Planetary Gear

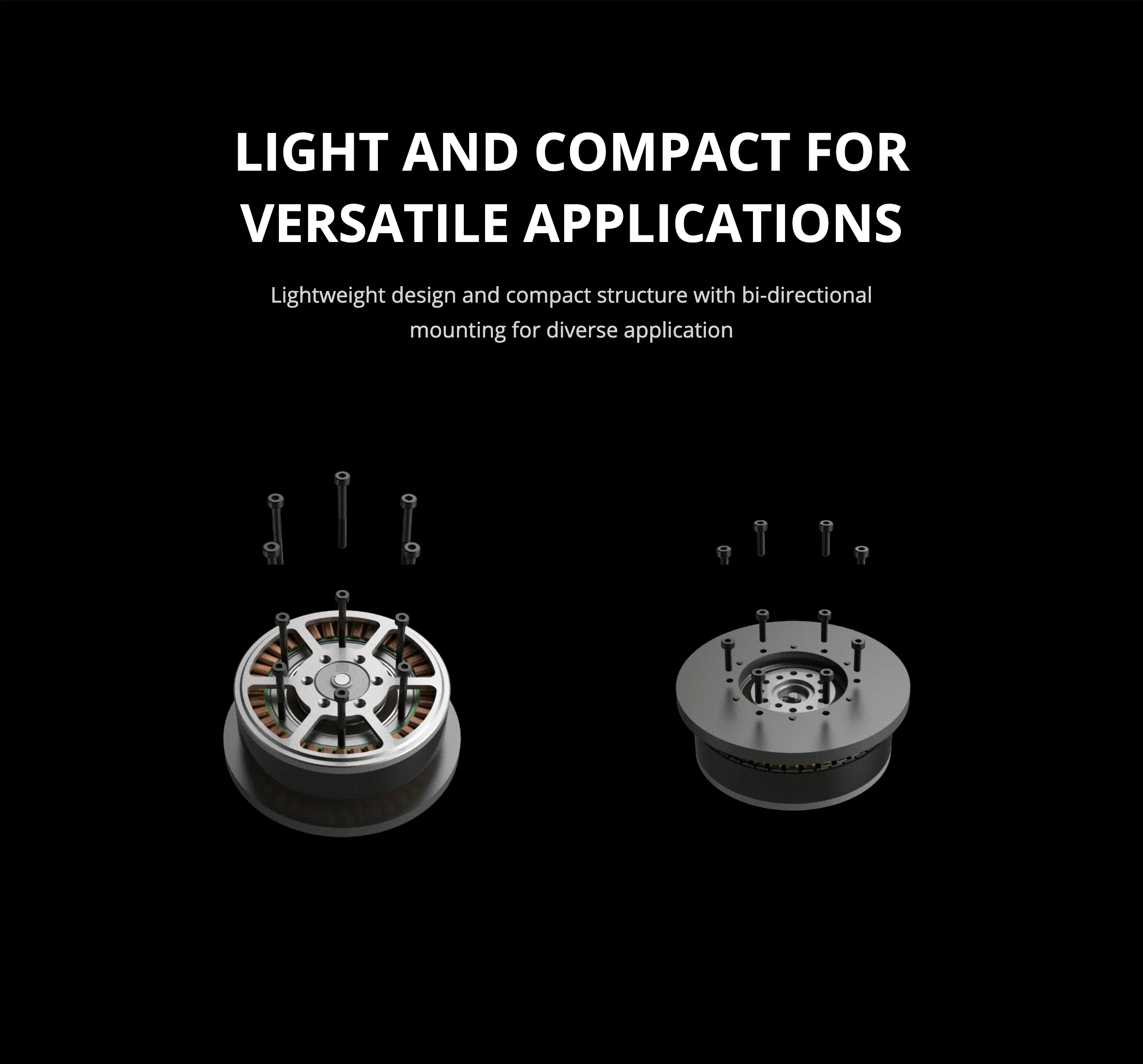

• Flexible Installation with Bi-directional Mounting

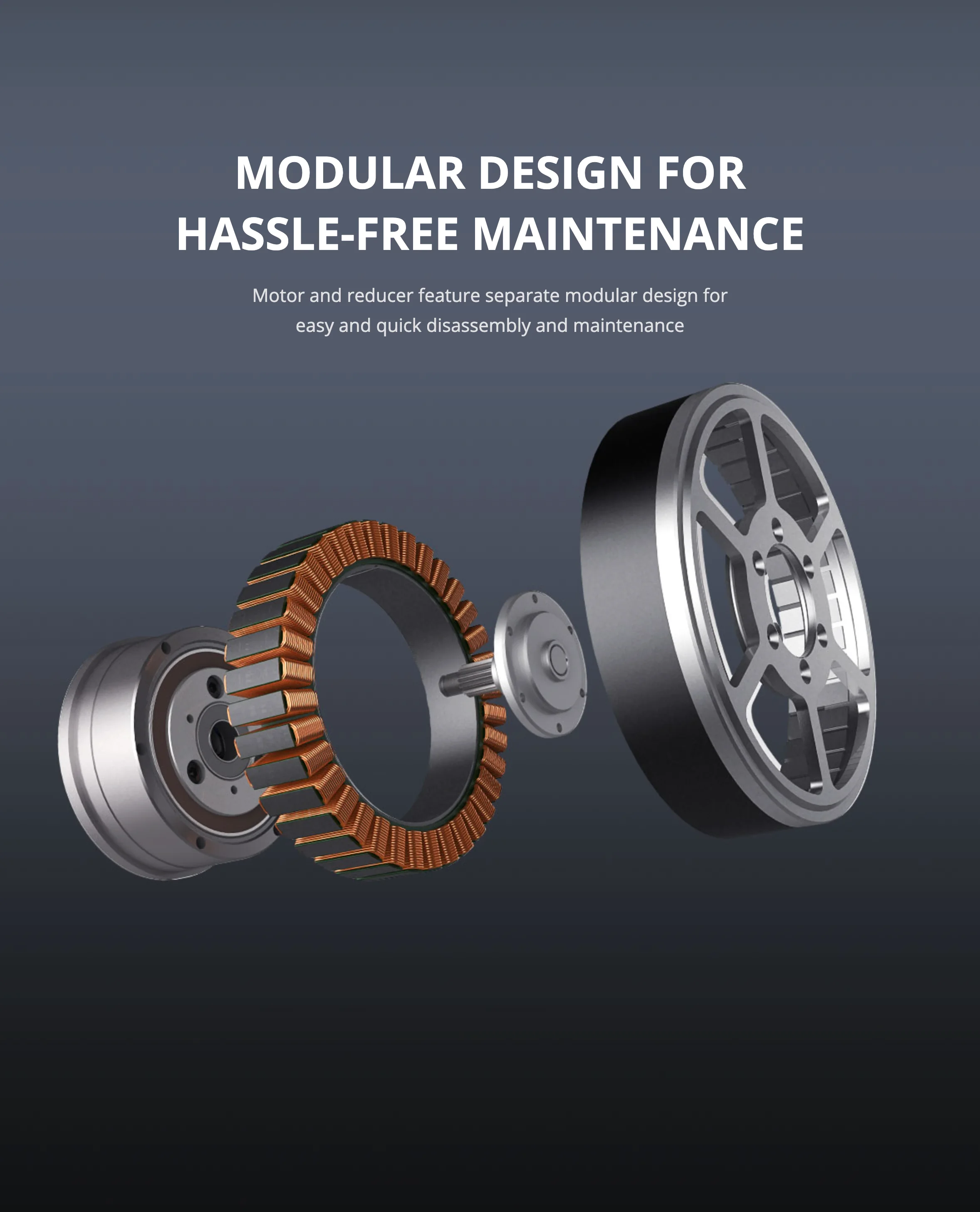

• Modular Design

• low Arcmin Backlash for High Precision

• Constantly Powerful Performance

• Specially for Exokseleton

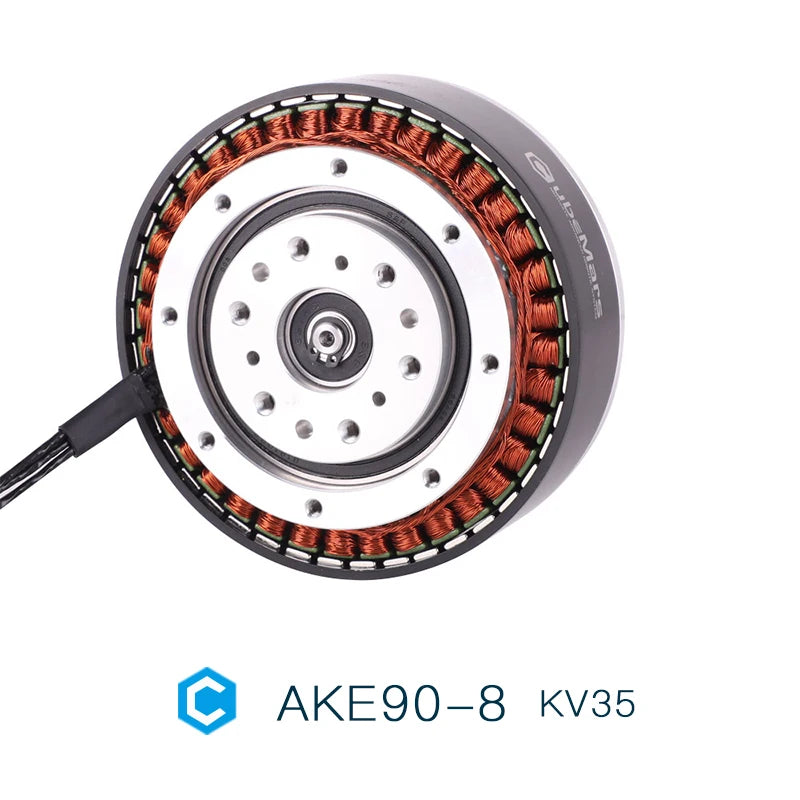

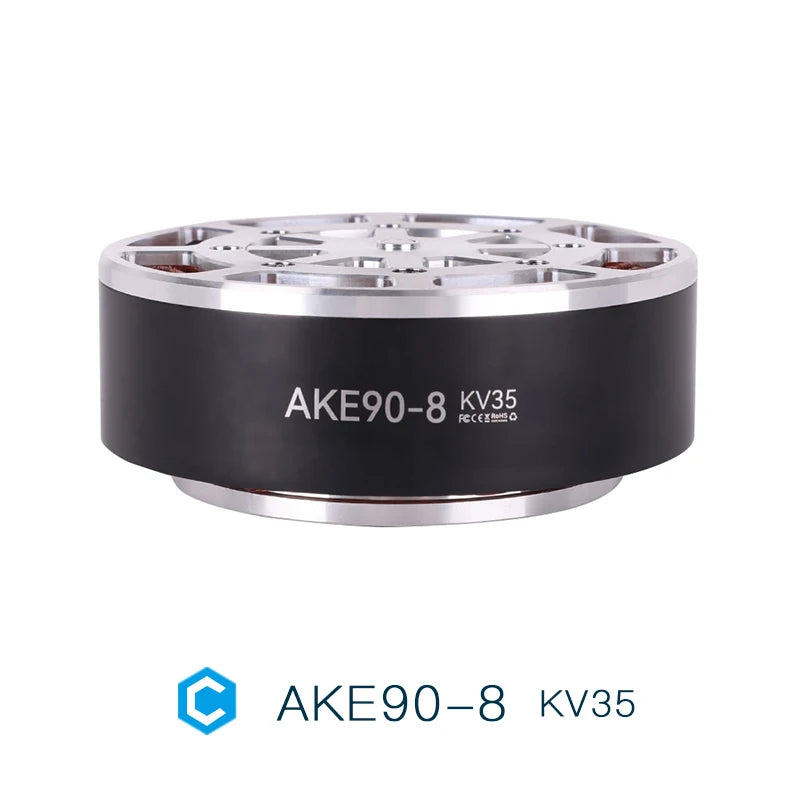

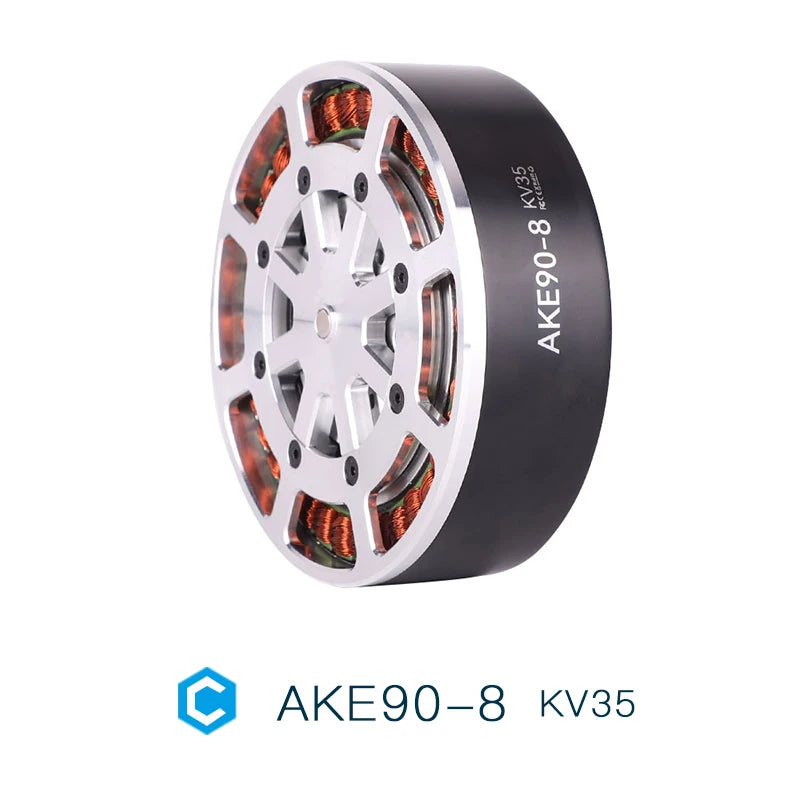

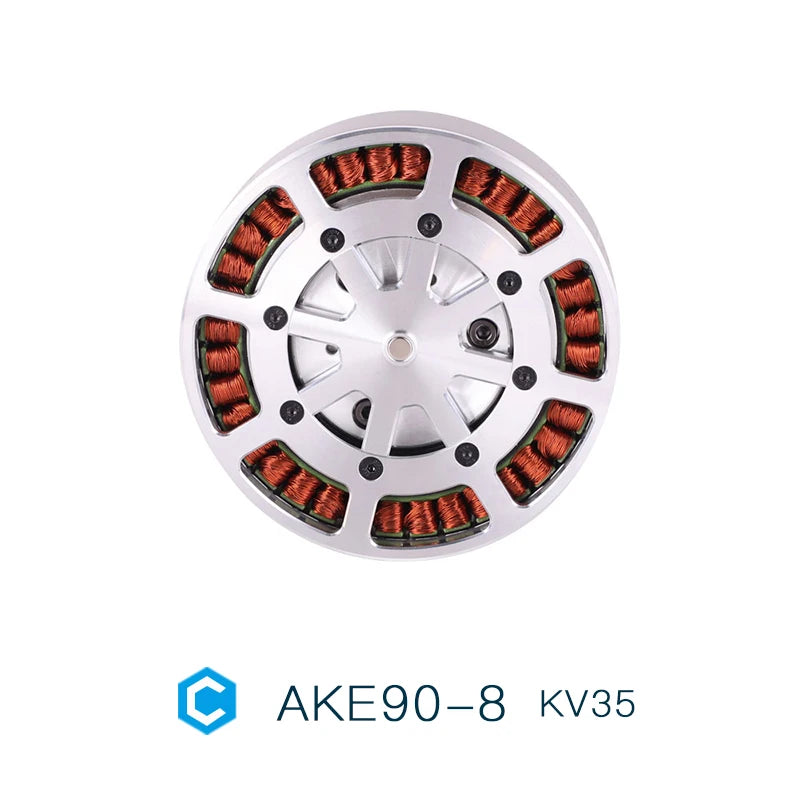

CubeMars’ AKE90-8 KV35 Quasi Direct Drive is the ideal choice for the industrial automation and robotics. This product integrates motor and gearbox, particularly suited for applications such as exoskeletons, bipedal robots, robotic arms, and industrial collaborative robots.

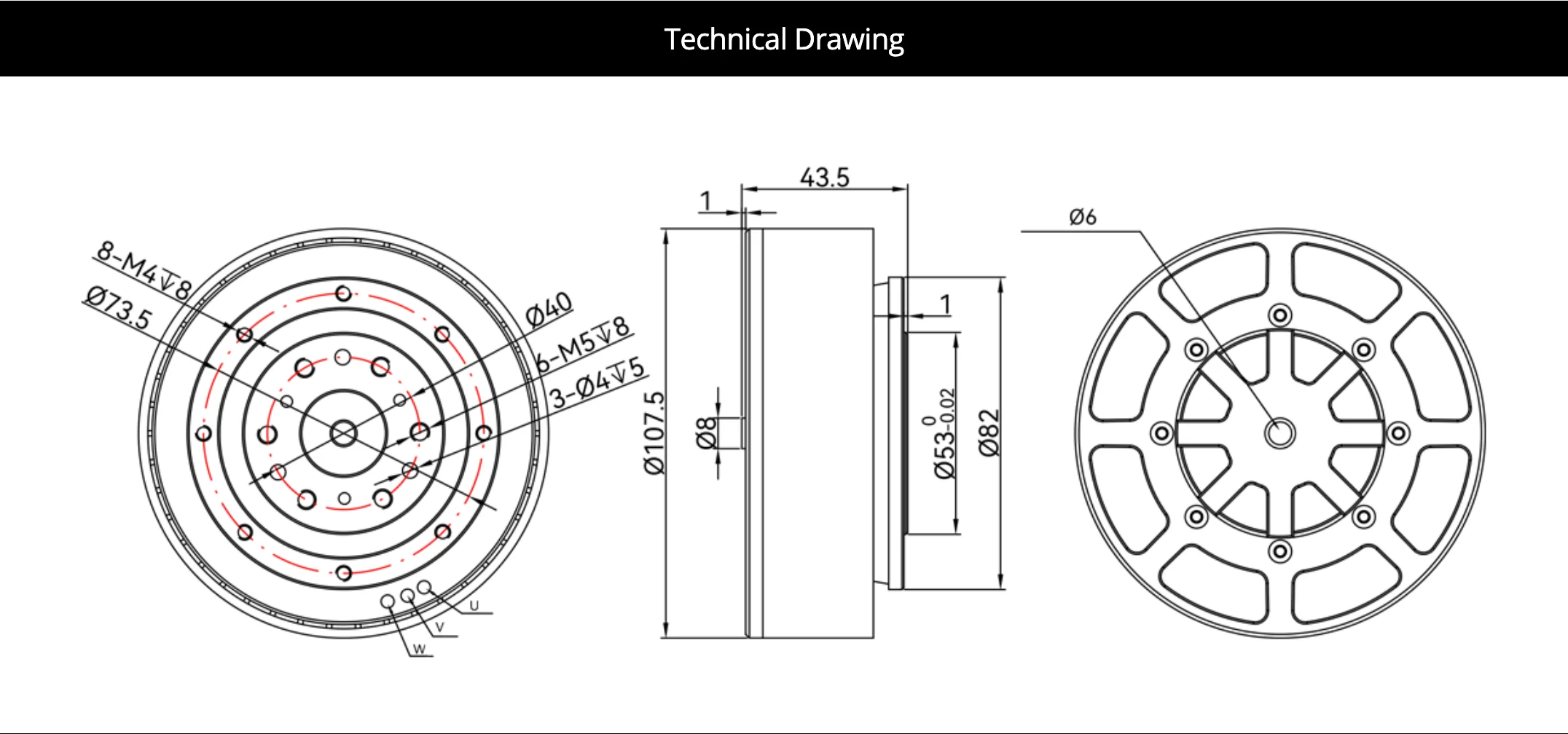

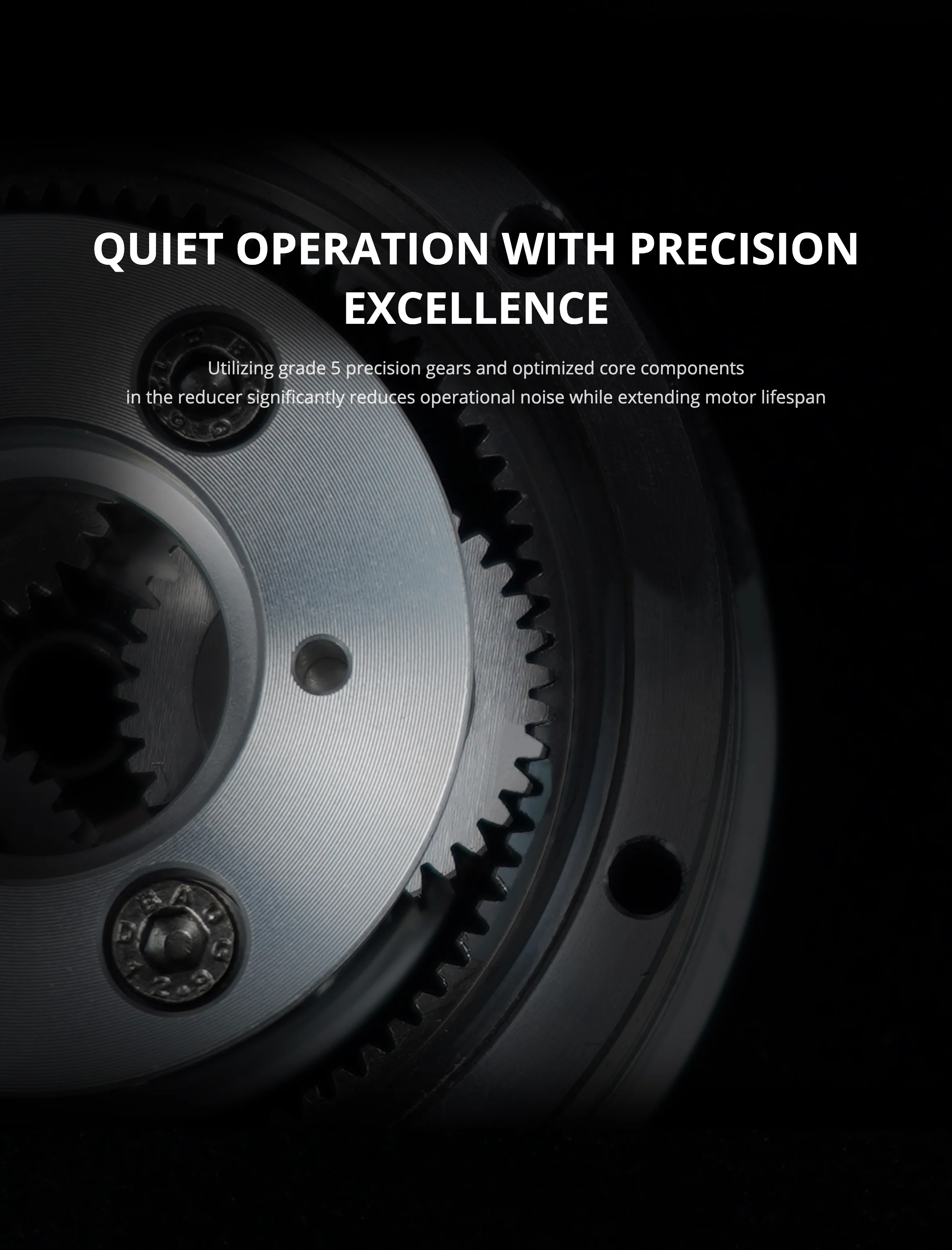

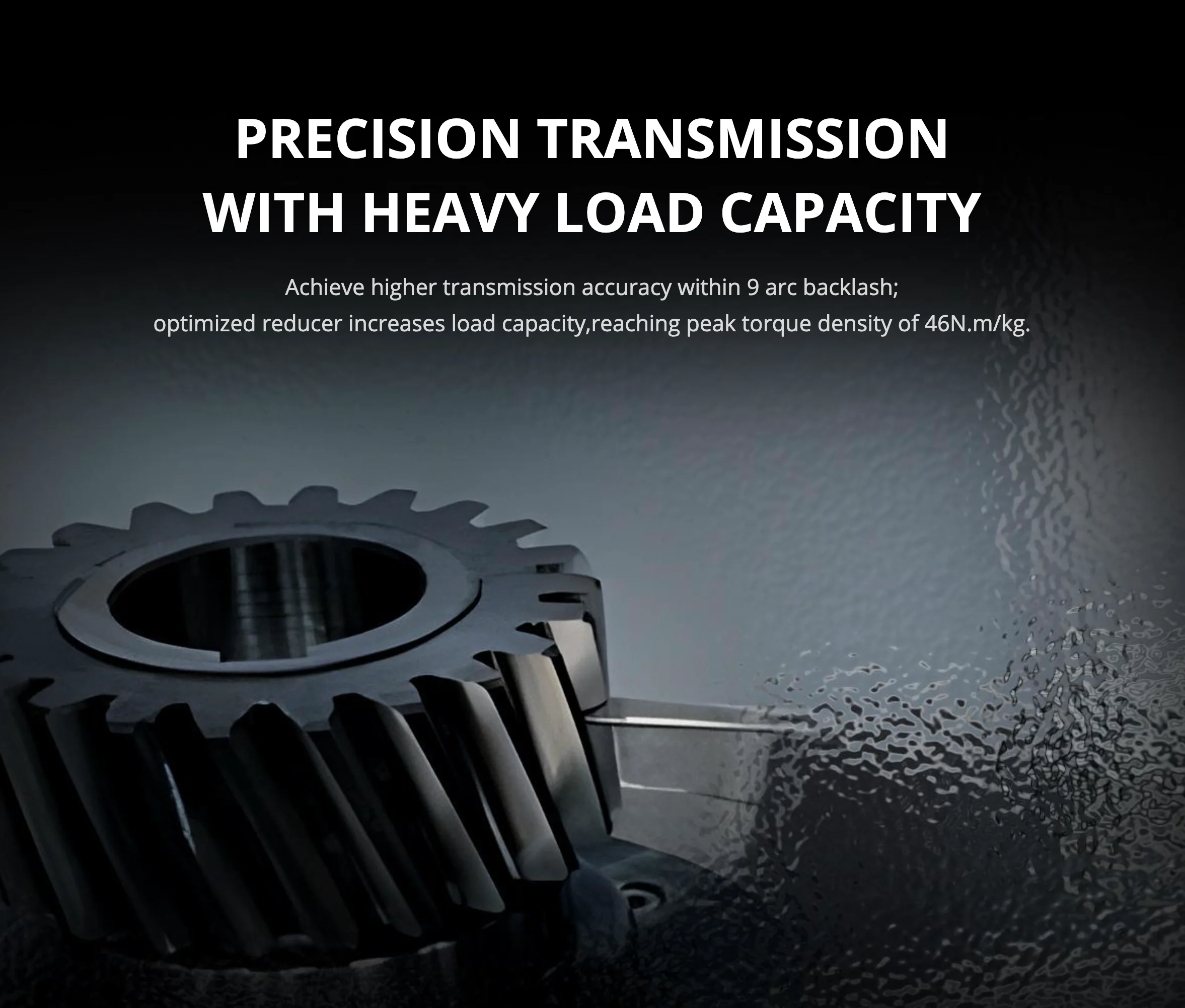

The core components of the gearbox are optimized for design and manufacturing processes, offering higher load capacity and lighter weight, achieving a backlash of 9 arcminutes and a torque density of 121 N.m/kg. The modular design of the gearbox and motor facilitates easy installation and maintenance. The motor base is equipped with threaded and through holes for versatile bi-directional mounting, accommodating various installation requirements.

CubeMars is dedicated to innovation and quality, ensuring each product meets high customer standards through advanced manufacturing technologies and stringent quality control processes.
