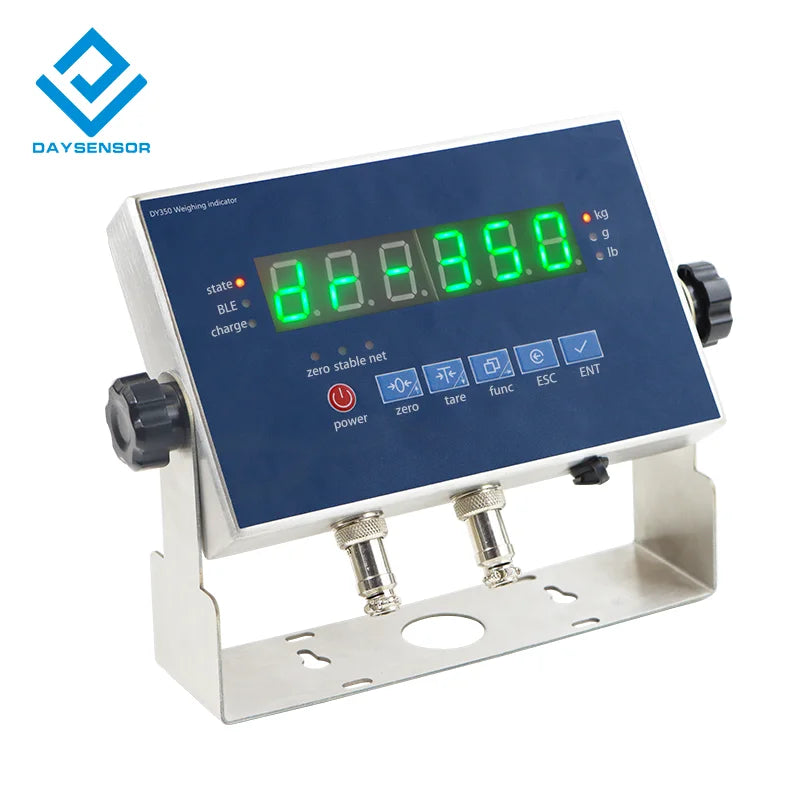

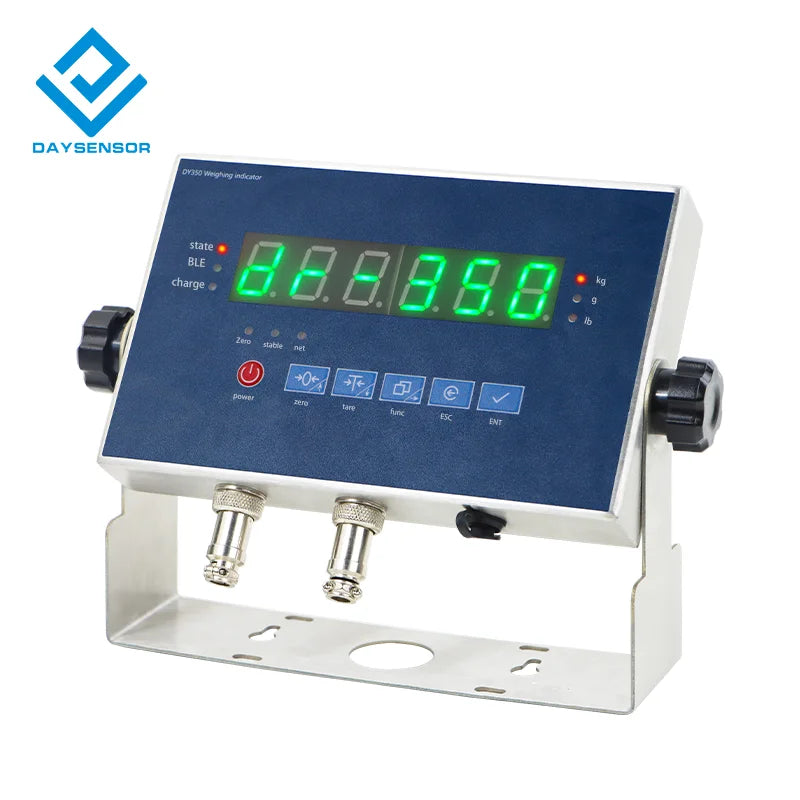

DY350 Controller: All-in-One Solution for Industrial Batching and Quantitative Packaging with Precision Weighing
Price range: $185.15 through $225.13
Request a quote / bulk pricing
Buying for a business or need several units? Send us the quantity and destination and we will reply with a quote.
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Material: Metal
Origin: Mainland China
Output: Analog Sensor
Theory: Resistance Sensor
Use: Pressure Sensor
is_customized: Yes
|
DY350 Technical specifications
|
|
|
supply electricity
|
3.7V 4000mAh lithium battery
|
|
humidity
|
Relative humidity <90% (no condensation)
|
|
temperature
|
Operating environment: 20℃ to 50℃, temperature drift less than 10ppm
|
|
sampling rate
|
Up to 3200 times per second;
|
|

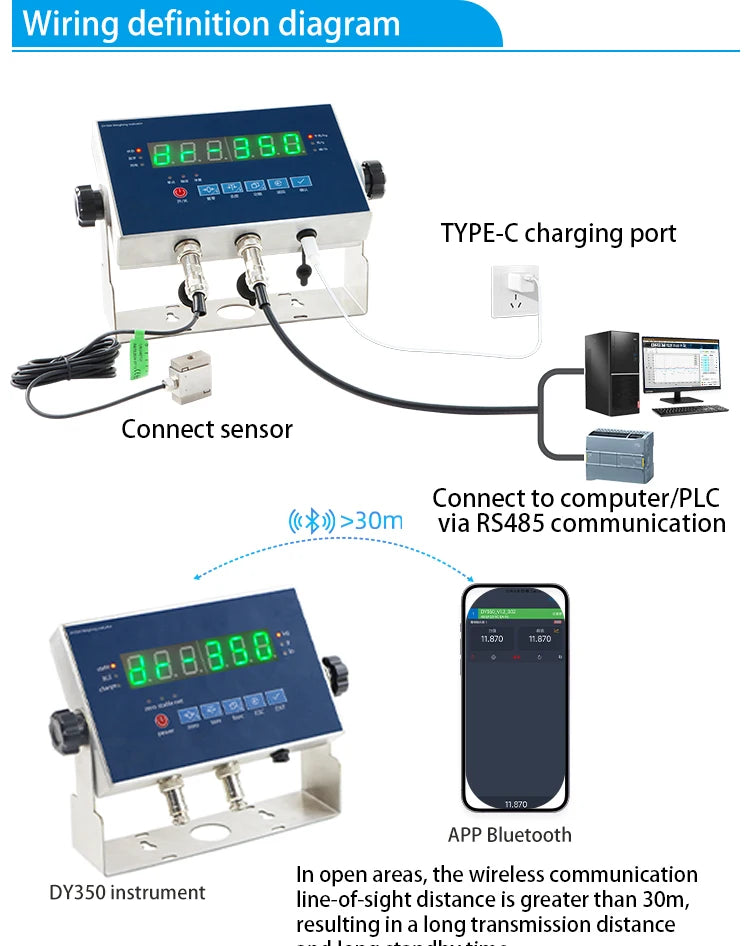

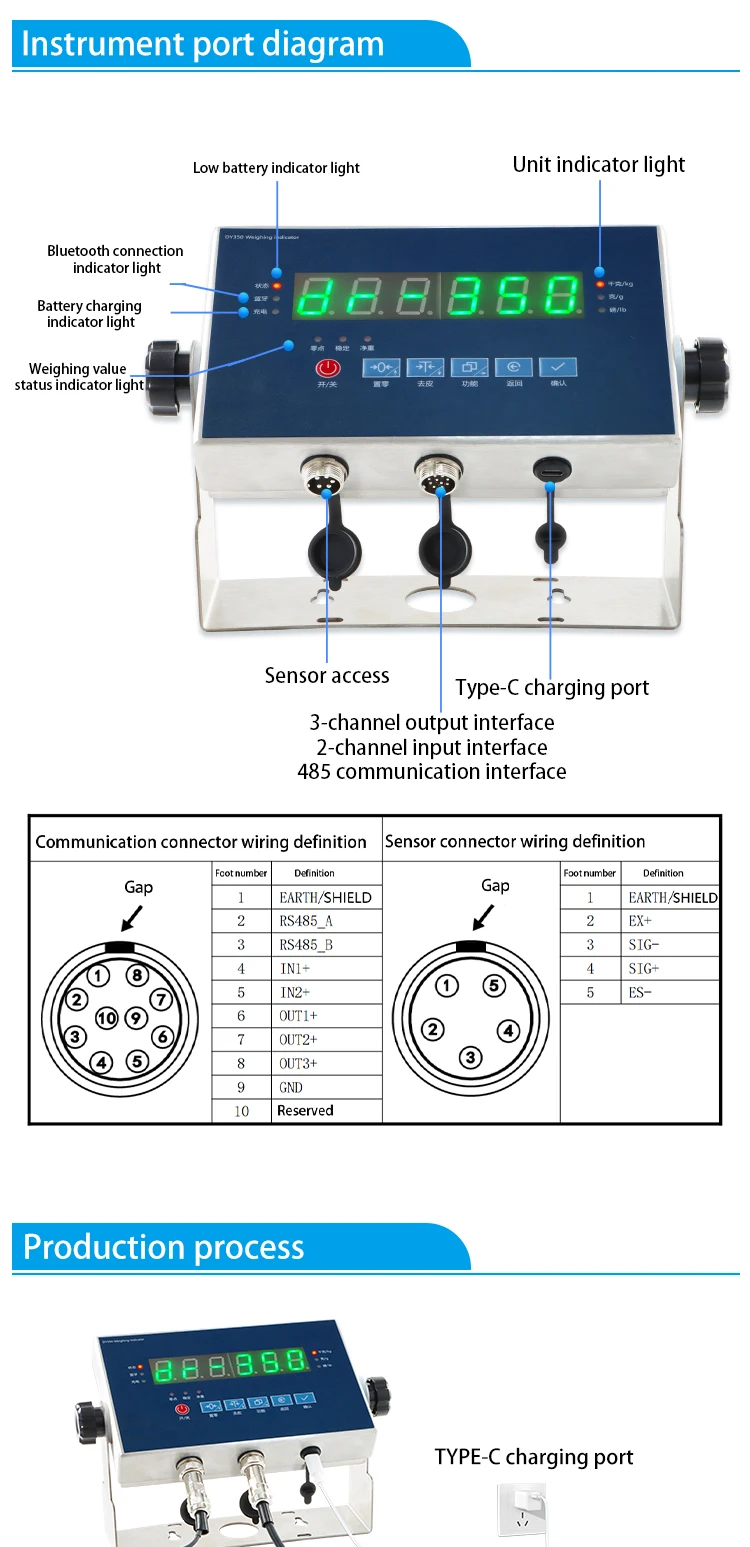

Digital Communications
|
Optional RS485 isolation communication, supporting Modbus-RTU protocol and
ASCII active reporting protocol, baud rate 2400~115200 Bit/ |
|
Bluetooth wireless communication
|
Wireless communication range>30m (in clear and open environment
|
|
on-off input
|
Two NPN digital inputs, used for zeroing or startup
|
|
Switching Output
|
Upper and lower limit of three-channel OC output (NPN)
|
|
Display division
|
The measured value ranges from-99999 to 999999
|
|
function
|
Measurement function: proportional measurement method; rapid acquisition,
filtering, scaling, and display of measurement signals |
|
Upper and Lower Limit Comparison
|
|
|
Peak and valley capture function
|
|
|
Power-on reset, manual reset (button or communication), automatic reset
|
|
|
Zero tracking and creep tracking
|
|
|
Sensor limit exceeded
|
|
* Bluetooth: Wireless communication range>30m (in clear and open environment)
* Type-C port: Rechargeable with 5V 2A charger
* Peak capture
* Upper and lower limits comparison
* Power-on/Automatic/manual reset, zero position tracking, creep tracking
* RS485 communication: Supports Modbus-RTU, ASCII, and HEX active transmission protocols
* High sampling rate: up to 3200Hz
* Switching functions: three upper/lower limit OC outputs, two NPN-type inputs
* Low power: 30 hours of continuous operation and 6 hours of charging
* Type-C port: Rechargeable with 5V 2A charger
* Peak capture
* Upper and lower limits comparison
* Power-on/Automatic/manual reset, zero position tracking, creep tracking
* RS485 communication: Supports Modbus-RTU, ASCII, and HEX active transmission protocols
* High sampling rate: up to 3200Hz
* Switching functions: three upper/lower limit OC outputs, two NPN-type inputs
* Low power: 30 hours of continuous operation and 6 hours of charging
Additional information
| Weight | N/A |
|---|---|
| Color | Optional 232 and BTM, Optional 232, RS485 and BTM, Standard 485 |
