Adopt ARM Cortex-M4 STM32F405RGT6 processor with built-in FPU floating point unit
Comes with a USB debugging interface, which can set/read parameters and control the motor operation
Can drive BLDC brushless motor with peak current up to 120
Support multiple encoders: TLE5012B, AS5047, AMT10X, MT6816, etc
Rich communication interfaces, including CAN, USART, PWM, pulse interface, etc. Onboard temperature sensor can monitor the driver temperature in real time and has overheat protection function

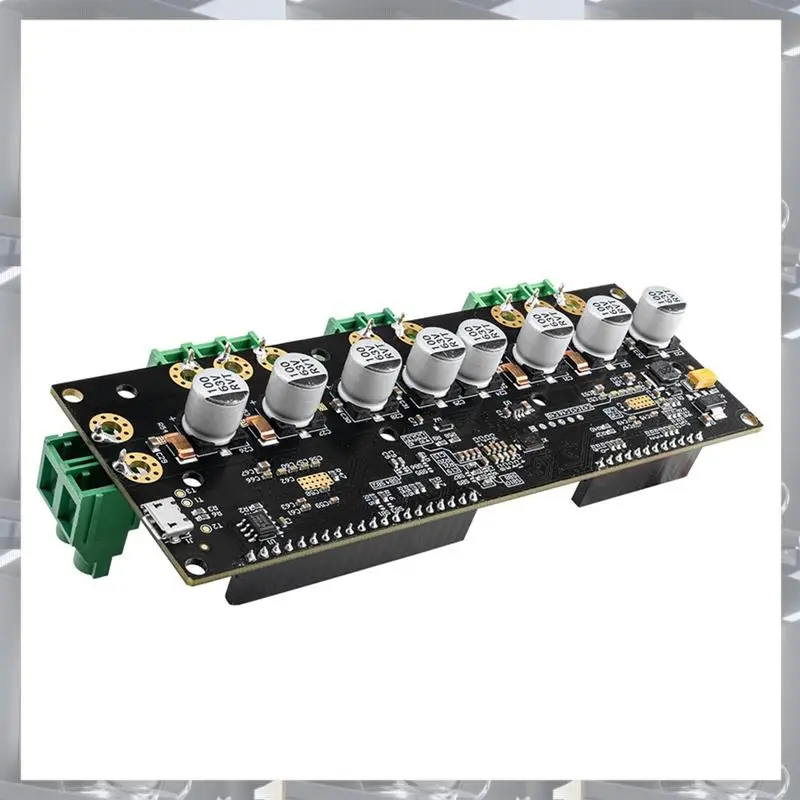

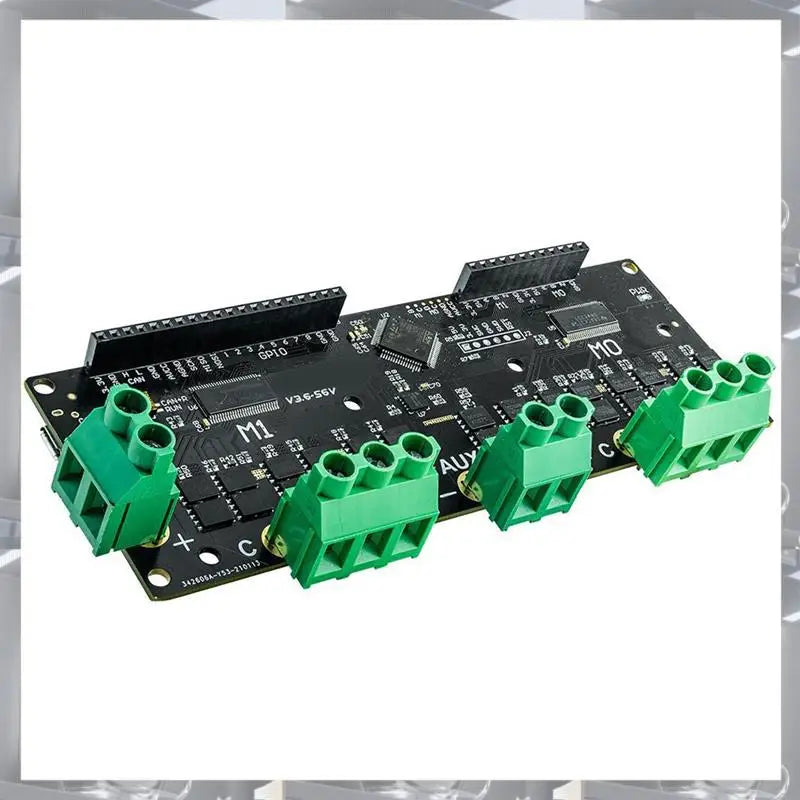

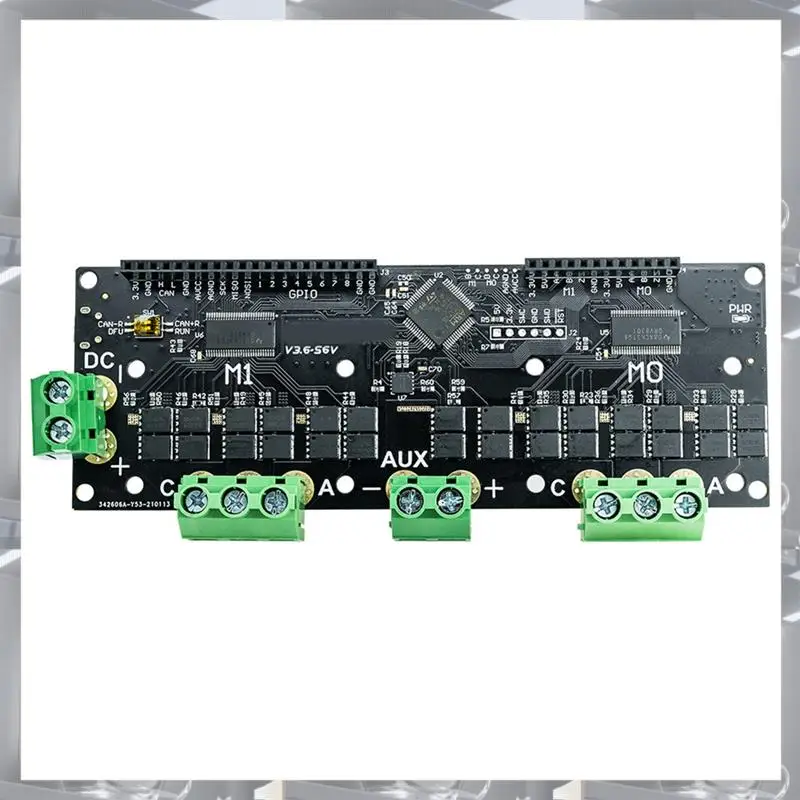

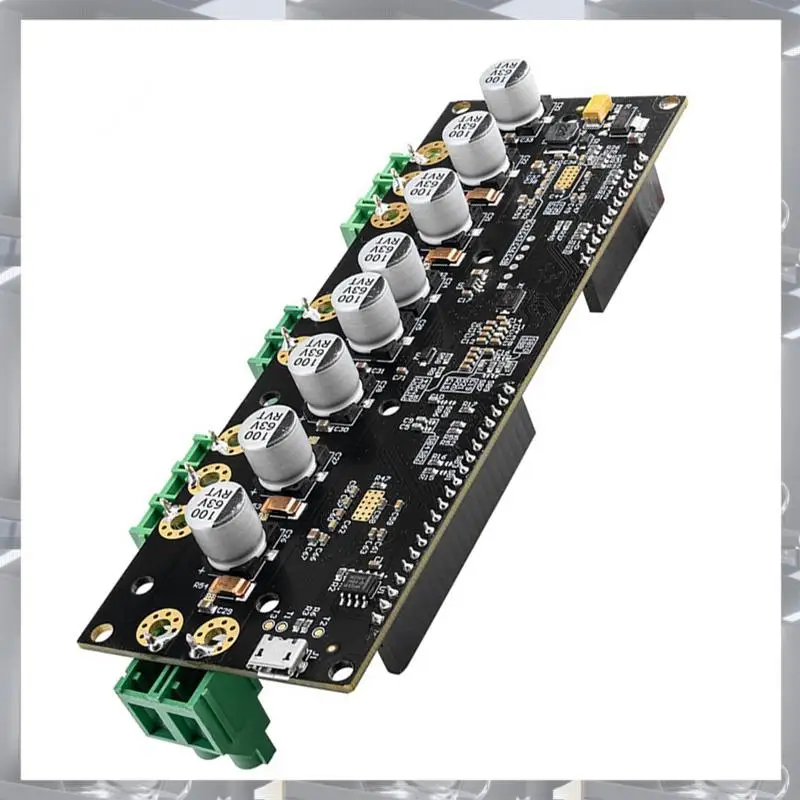

Motherboard model:for XDrive 3.6 56v
microprocessor:STM32F405RGT6
input voltage:12-56v
Working current:60A
Peak current:120A
Motor type:3-phase BLDC motor
Encoder type:TLE5012B/AS5047/AMT10X, etc
Communication interface:USB/UART/PWM/CAN/Pulse interface, etc
Sport mode:Position/speed/torque and other modes
Braking method:Dissipation resistor/battery recharge braking
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Colour:As Shown
Material:PCB

Package Contents:
1 * Motor Controller Board With accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
