Description

SPECIFICATIONS

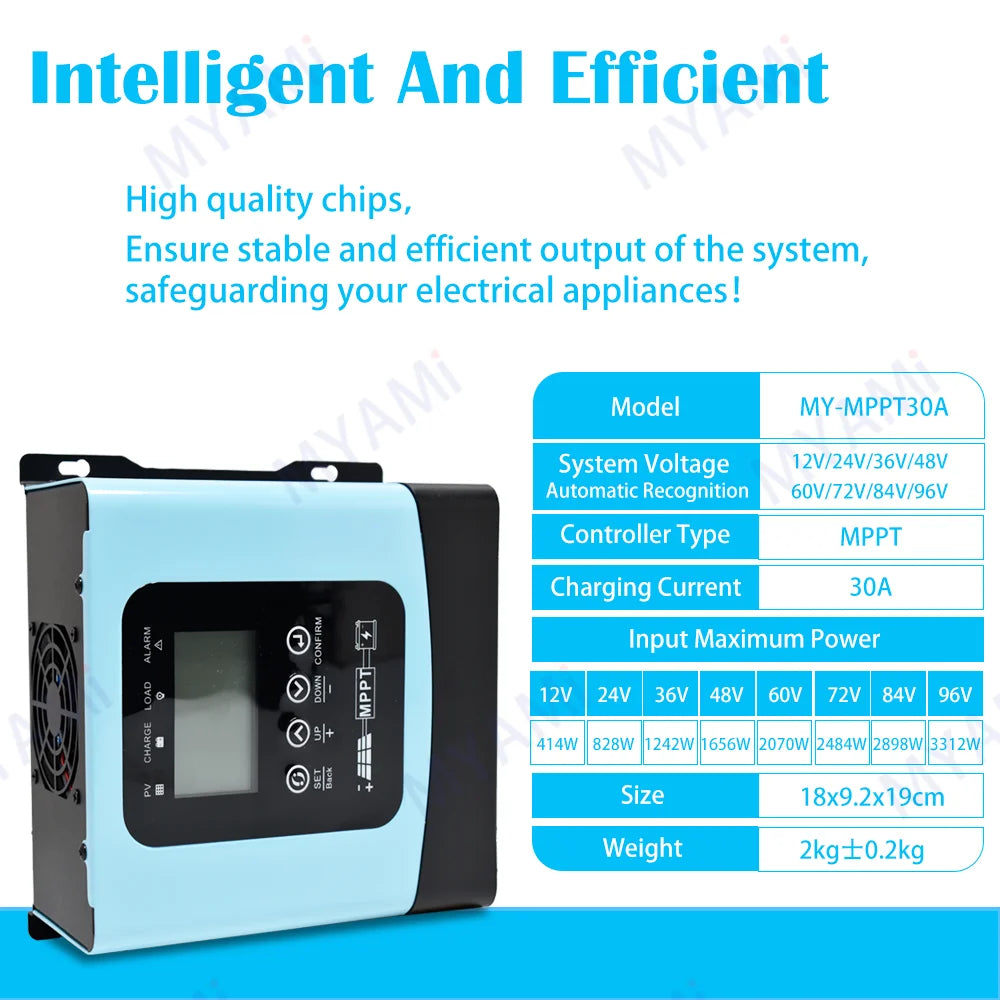

Application: Solar System Controller

Battery type: Lead acid/Gel/Phosphate/Ternary battery

Brand Name: NONE

Charge mode: 10-30A Setting

Display: LCD Display

High-concerned chemical: None

Is Smart Device: Yes

MPPT efficiency: 97%

Maximum Current: 30A

Model Number: MPPT 30A

Origin: Mainland China

Product name: MPPT Solar Charge Controller

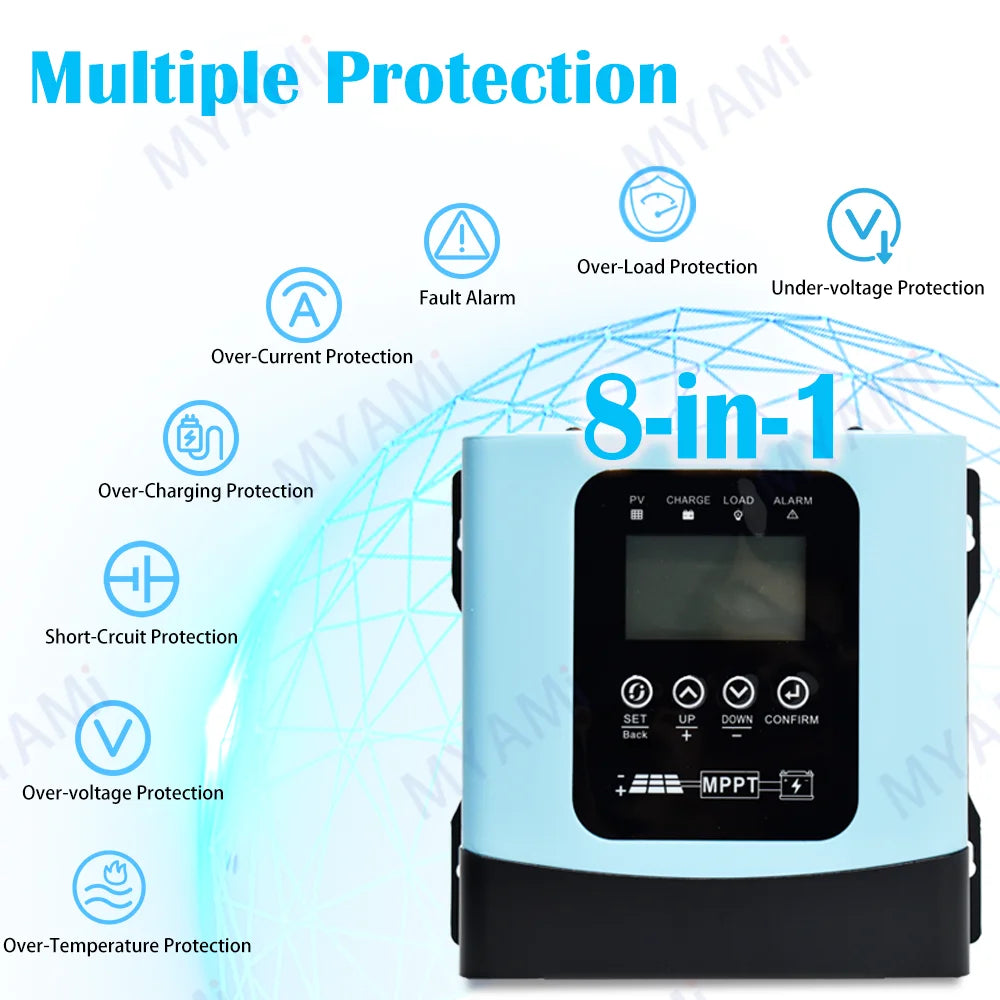

Protection: OCP/OLP/SCP

Rated Current: 30A

Weight: 2kg

is_customized: Yes

Basic Functions

●Innovative maximum power point tracking technology can significantly improve the energy utilization efficiency of solar energy systems, with a conversion efficiency of up to 97%;

●Quickly scan the entire area- V-curve, efficient tracking of maximum power point;

●Three types of lead-acid and lithium battery series charging programs are available: sealed, colloidal, and open type;

● It has automatic protection functions for overcharge, overdischarge, overload, and short circuit; RS485 communication interface, capable of multi machine communication, convenient for viewing the operating parameters of the controller.

Characteristics of MPPT controller

This controller is used in solar off grid power generation systems to automatically regulate battery charging and discharging. It has advanced tracking algorithms to obtain the maximum power of solar cell modules for charging the battery; Meanwhile, its low voltage disconnect (LVD) function can prevent damage caused by excessive discharge of the battery.

The battery charging process of MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can prevent damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to enable you to better utilize all the functions of the controller and improve your photovoltaic system, please carefully read the instructions and instructions in this manual.
