Precision strain bridge signal isolation transmitter

Tension, pressure, weighing and other force sensor applications, industrial grade, 0.01% accuracy

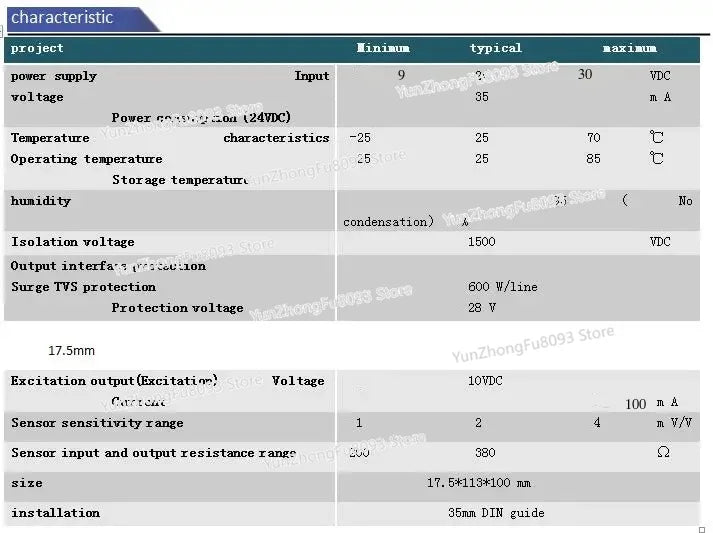

• Low noise, high precision, and the overall maximum nonlinear error is better than 0.01% F.S.;

• Standard 35 mm DIN rail installation, 9-30V wide voltage power supply;

• Precision, low temperature drift 10V excitation power output;

• Excellent filtering and anti-interference ability;

• Surge protection for all interfaces:

• Thin modular design, removable terminals;

• Electrical isolation between power supply and signal, 1.5KV isolation voltage,

• Adjustable standard output signal, 0/4-20mA, 0-10V and ±10V bipolar signals:

• Suitable for 1mV/V~4mV/V sensitivity sensors, supporting pull and pressure bipolar measurement situations;

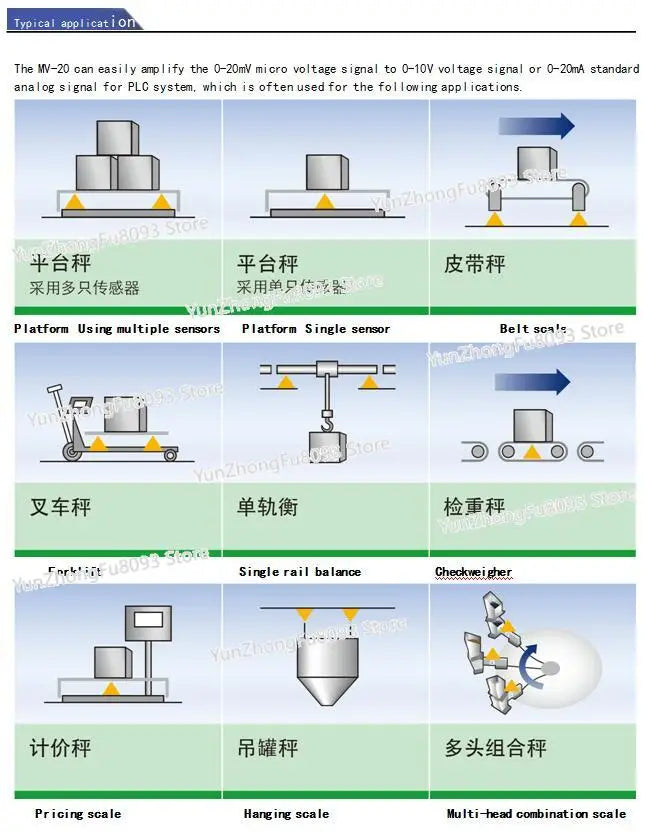

   MV-20B is a cost-effective industrial grade strain bridge signal amplification transmitter, which is widely used in industrial manufacturing, industrial automatic control equipment, testing and measurement, intelligent instrumentation and other occasions. It is suitable for signal amplification and transmission output of various strain resistance bridge load cells, such as S-type force sensors, spoke sensors, and load cells. The product uses an isolated power supply internally, making it suitable for industrial situations with harsh electrical environments. This product adopts a modular design, is small in size, light in weight, has removable terminals, is suitable for standard 35mm DIN rail installation, and is simple and easy to use. MV-20B is fully Pin to Pin compatible with the MV-20 version. V-20B has lower noise. It also supports bipolar measurement occasions and has a new hardware zero adjustment and amplitude modulation function. The application scenarios are wider and more flexible.
