Description

The AHT20, a new generation oftemperature and humidity sensors, sets a new standard insize and intelligence: it is embedded in a double-row flat pin less SMD package suitable forreflow soldering, with a bottom face of 3X3MM and a height of 1. The OMMO sensoroutputs calibrated digital signals in standard IC formatAHT20 is equipped with a new design of ASIC chips, an improved MEMS capacitivehumidity sensor semiconductor element and a standard on the piece of temperaturesensing element,its performance has been greatly improve even beyond the reliabilitylevel of the previous generation of sensors, a new generation of temperature and humiditysensor, the improved to make it more stable performance in harsh environments.

PRODUCT PARAMETERS

Product model: AHT20

Power supply voltage: 2.0-5.5V DC

Measurement range (humidity) : 0~100%RH

Measuring range (temperature):-40~+85℃

Humidity accuracy:2%RH(25℃)

Temperature accuracy:0.3℃

Resolution: Temperature: 0.01℃ Humidity: 0.024%RHOutput signal: I²C signal

Materials: Metal, Plastic

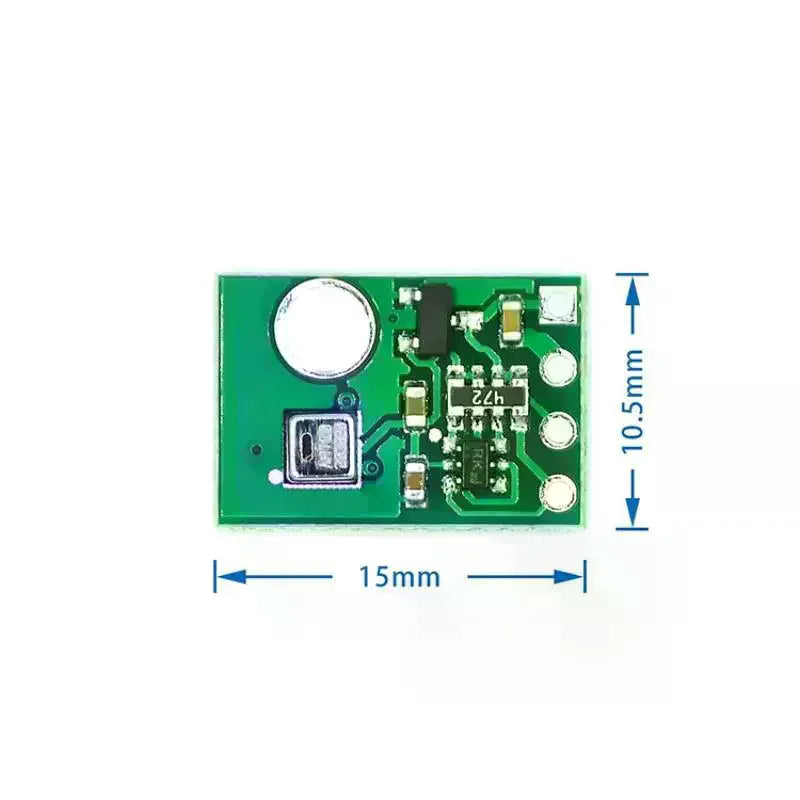

Size: 15 * 10.5 mm

Packing: 1 set

Application scenario:

It is mainly used in HVAC, dehumidifier, test and detection equipment, consumer goodsautomobile, automatic control, data recorder, weather station, household appliances,humidity regulation, medical and related temperature and humidity detection andcontrol

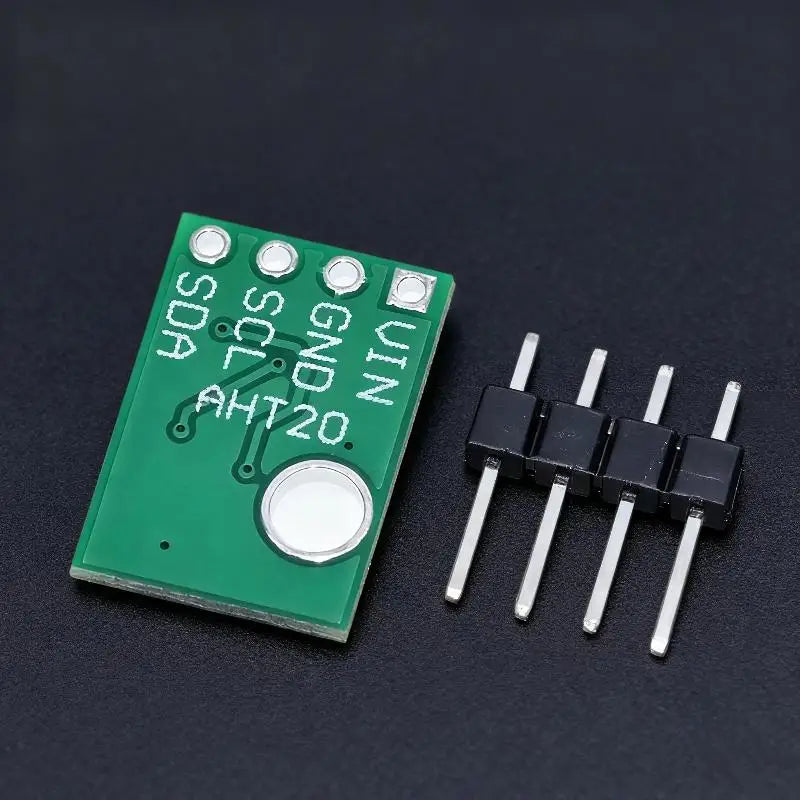

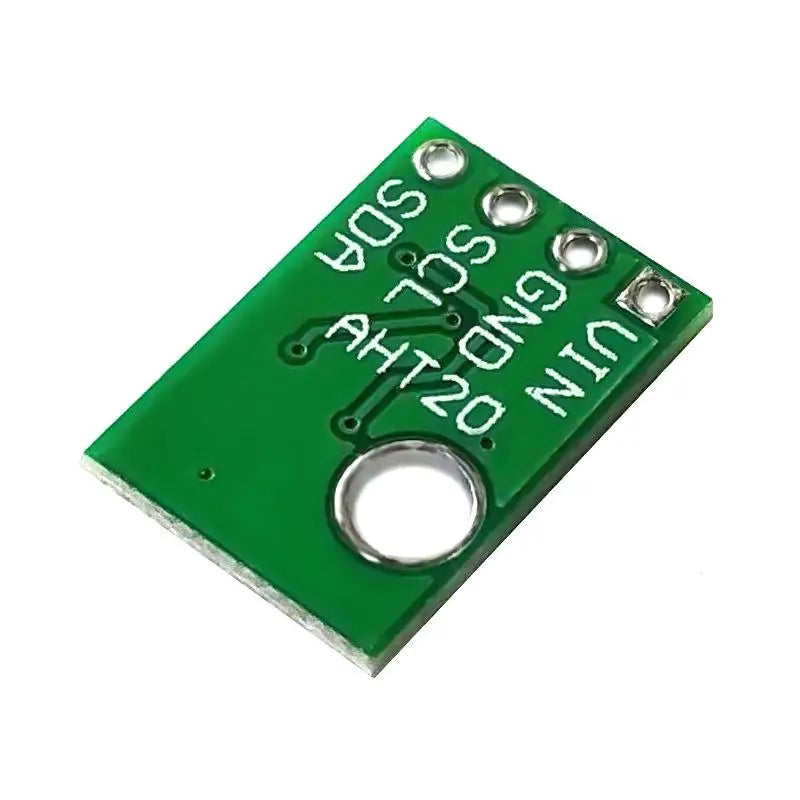

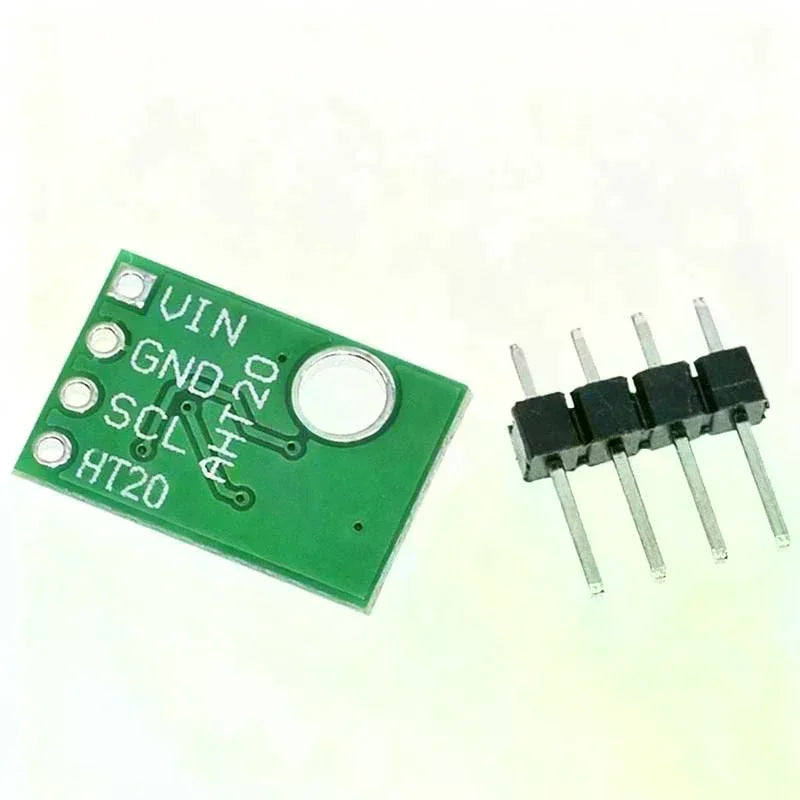

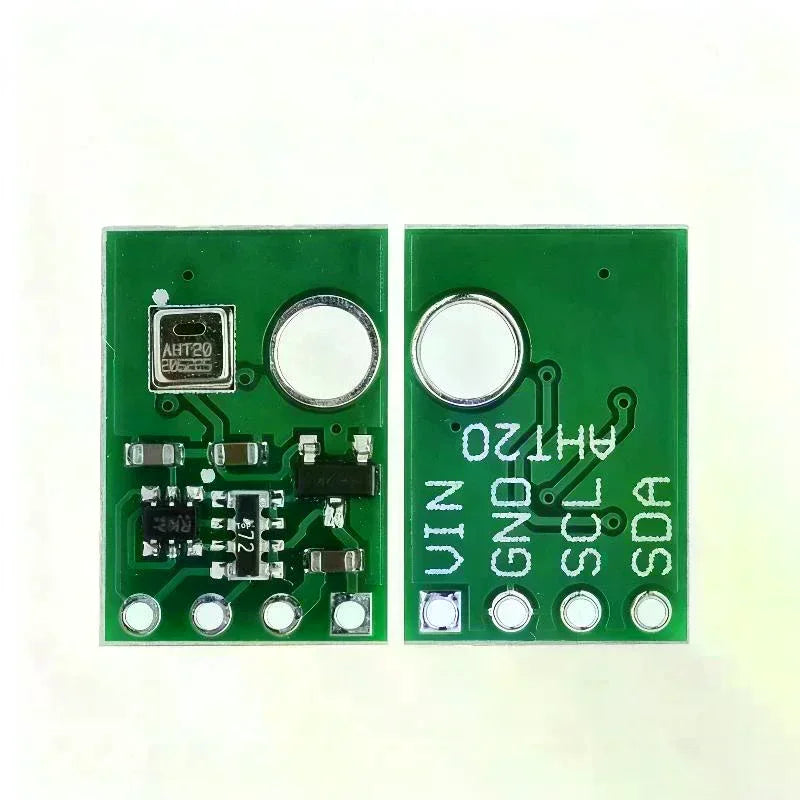

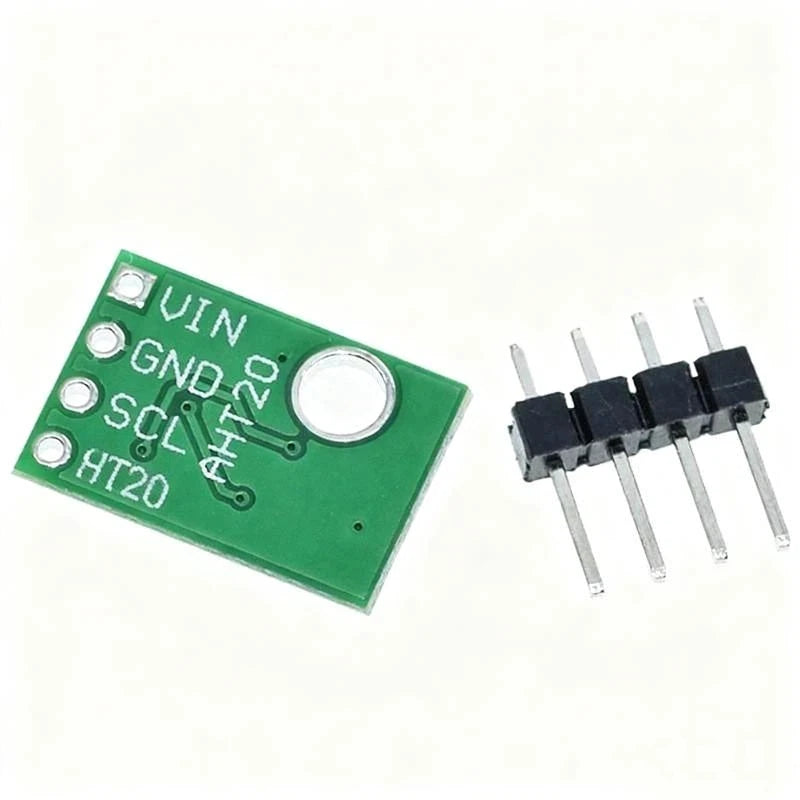

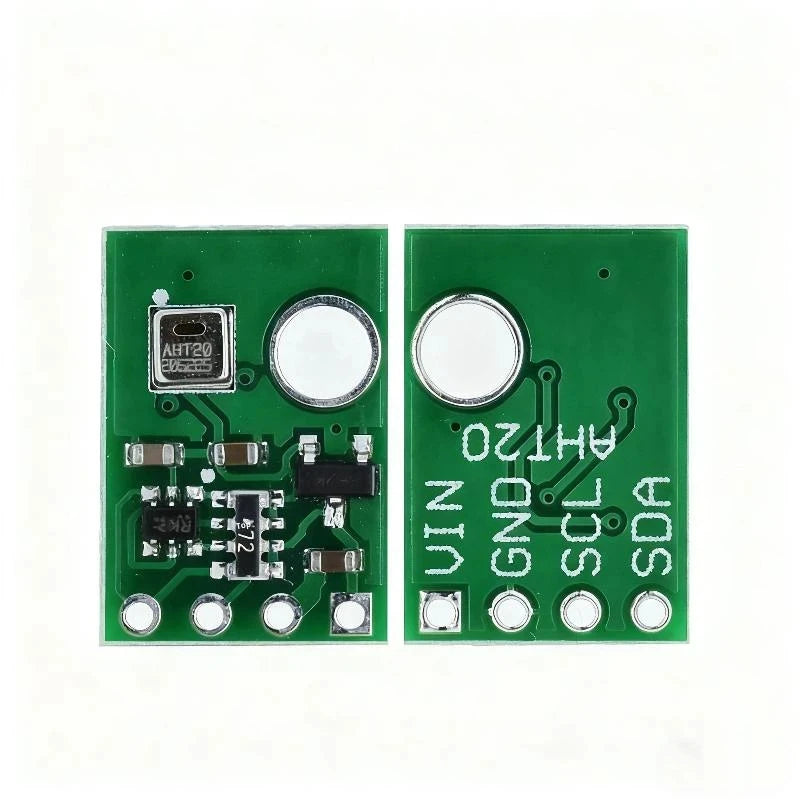

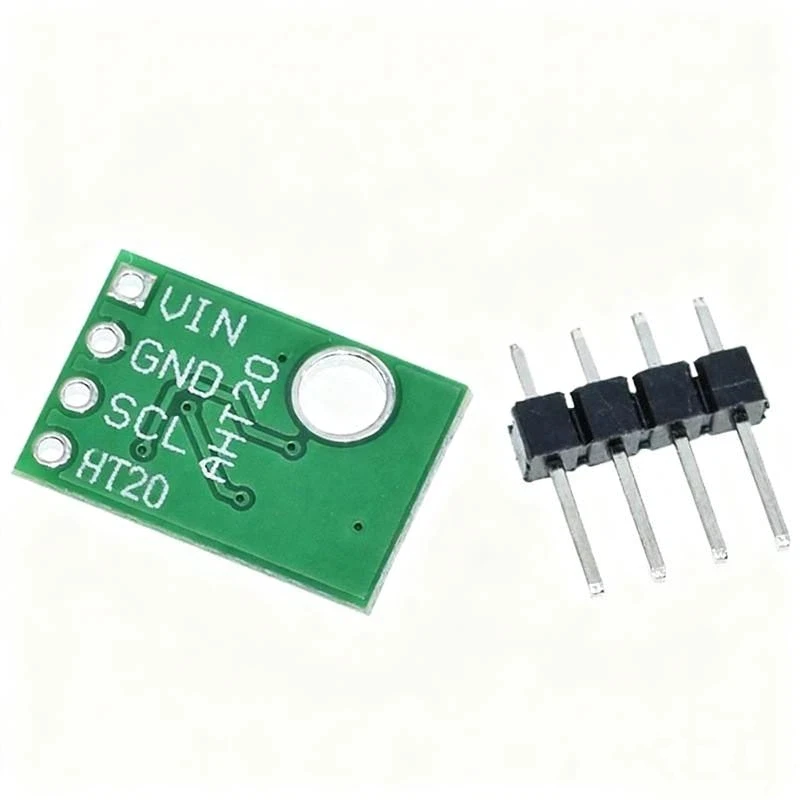

PIN DEFINITION

1 VIN: Supply voltage

2 GND: Power ground

3 SCL: Serial clock, bidirectional

4 SDA: Serial data, two-way

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
