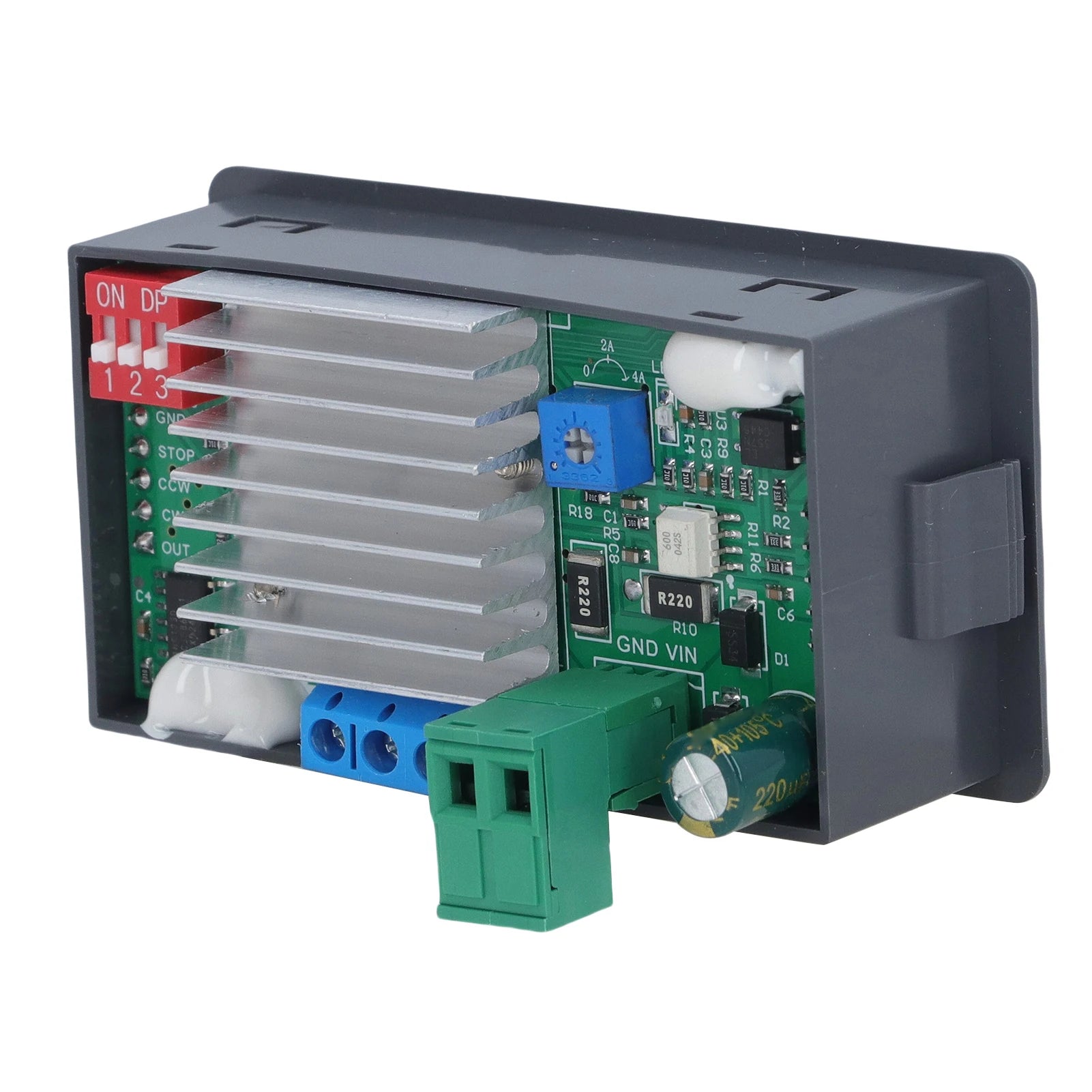

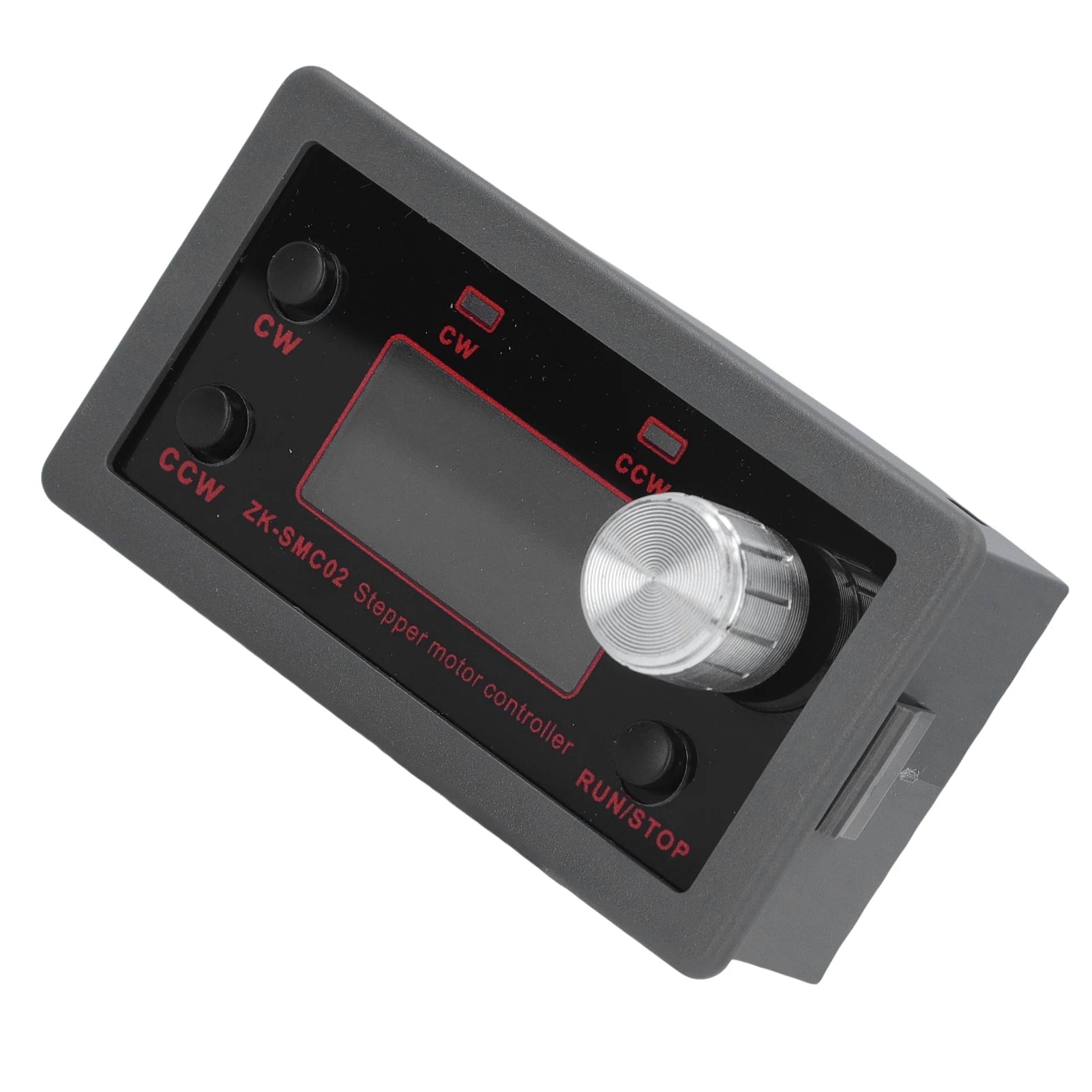

Single Axes Motor Controller Automatic Manual Mode Stepper Motor Controller Acceleration Deceleration for Industrial Use
$46.46
Request a quote / bulk pricing
Buying for a business or need several units? Send us the quantity and destination and we will reply with a quote.
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: None
Model Number: Motor Controller
Origin: Mainland China
Single Axes Stepper Motor Controller Driver Forward Reverse Angle Pulse Speed Control Programmable PLC Serial Port
Specification:
Item Type: Stepper Motor Controller
Product Material: ABS
Applicable Motor: Stepper Motor
Control Axes: Single Axes
Motor Signal: Common Anode
Drive Capability: 4A
Instruction Features: Simplified Optimized Multiple Common Instructions
Acceleration Deceleration Control: Yes
Input Reverse Guard: Yes
Remote Comm Control: TTL Serial Port
System Main Functions: Automatic, Manual, Setting, Serial Port Control
Speed Range: 0.1-999 RPM
Forward Pulse Count: 1-9999 Pulses
Reverse Pulse Count: 1-9999 Pulses
Number of Cycles: 1-9999 Times
Forward Delay Time: 0.0-999.9 seconds
Reverse Delay Time: 0.0-999.9 seconds
Subdivision Selection Range: 1-32 Subdivisions
Operating Environment: -5℃-60℃ (Non condensing)
How to Use:
Take out the product and use it directly.
Package List:
1 x Motor Controller
Note:
Not applicable to special industries such as fire fighting or life vital fields.
Additional information
| Weight | 0.231 lbs |
|---|---|
| Default Title | Default Title |
