Description

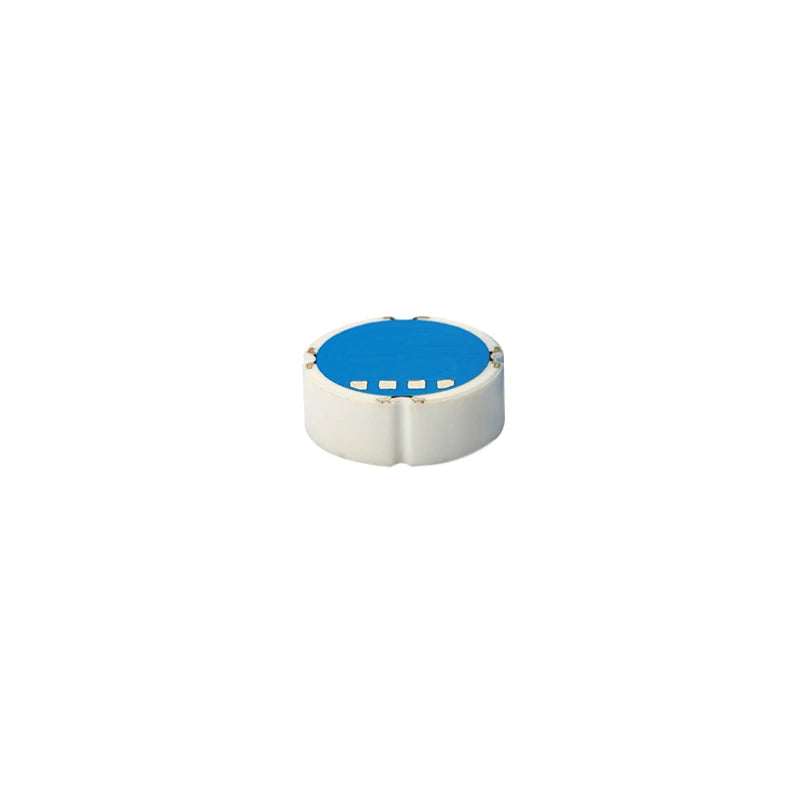

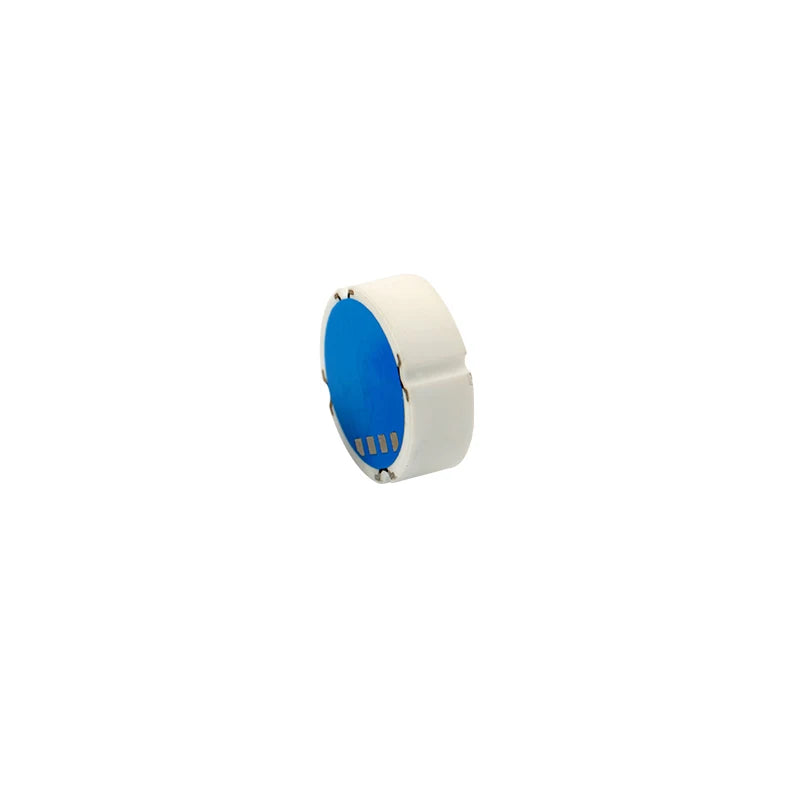

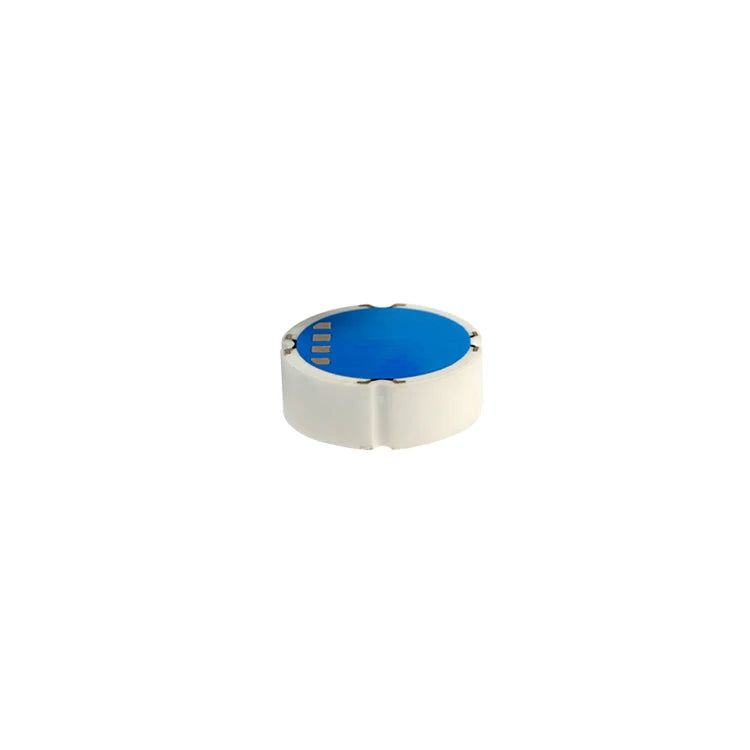

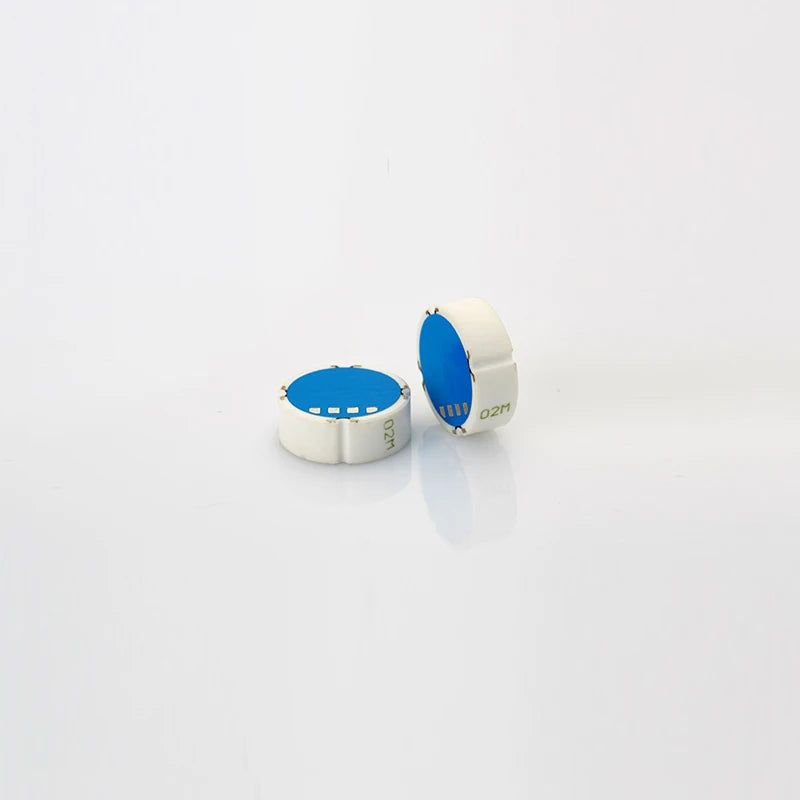

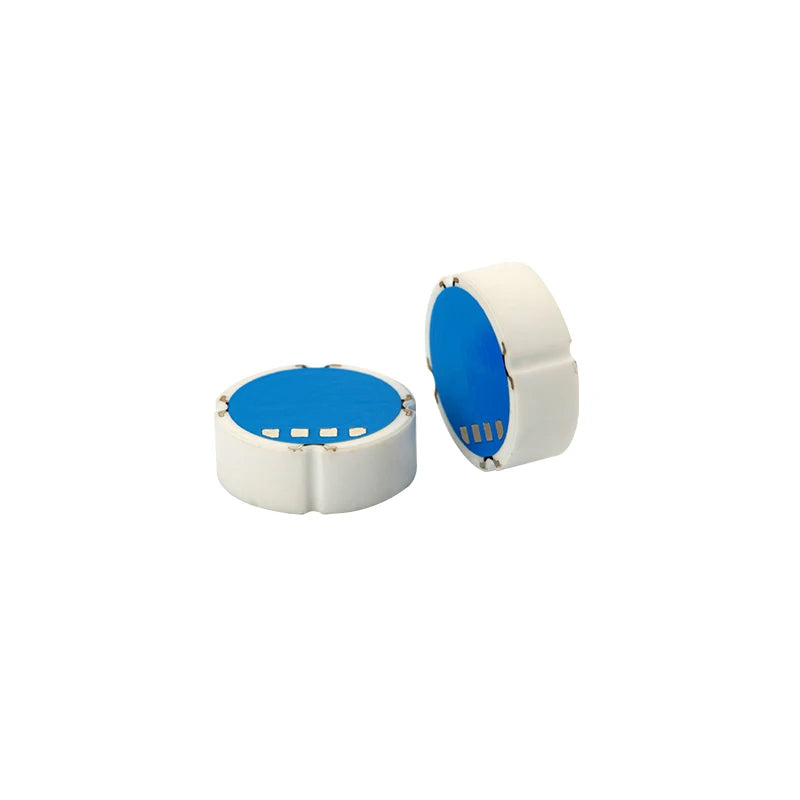

WPAH01 ceramic pressure sensor adopts ceramic base, made into ceramic piezoresistance pressure sensor with thick-film technology. It’s size Φ18mm*6.35mm. Ceramic is a kind of material with high elasticity, corrosion resistance, wear resistance, resistance to impact and vibration. Ceramic’s good thermal stability and thick film high temperature sintering process make the ceramic pressure sensor’s operating temperature range up to -40 ~ 125 ℃. The ceramic’s high elasticity and creep resistance make the ceramic pressure sensor have good long-term stability. Besides, the corrosion resistance character makes the sensor have unique advantages in the application such as the refrigeration, chemical and environmental protection and other fields.

Parameter

Item Parameter: Size Φ18mm*6.35mm
Detection Range: 2bar, 5bar, 10bar, 20bar, 50bar, 100bar
Working voltage: 2-20V
Sensitivity: 1.5—4mv/V， typical value 2.5±1.0mv/V
Input, output resistance: 10KΩ±30%
Temperature range: -40℃-125℃
Zero output: 0—±0.4 mv/V，， typical value 0±0.25mv/V
Linearity, hysteresis, repeatability: typical value ±0.3 %FS
Temperature draft: Typical value ±0.05%FS/℃
Safe overload: two times of rated detection range (when sensitivity is typical value)
Stability: Better than ±0.5%FS / year（if it is used properly）

Applications

WPAH01 Ceramic Pressure Sensor is widely used in process control, environmental control, hydraulic and pneumatic equipment, servo valves and transmission, chemical and chemical industry and medical instruments and many other fields.
