WB2-01M WiFi Bluetooth BLE Single Relay Module Suit for WB2 Secondary Development with Led Indicator Type-C/DC7-12V Power Supply
$35.88
Request a quote / bulk pricing
Buying for a business or need several units? Send us the quantity and destination and we will reply with a quote.
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: None
Origin: Mainland China
WB2-01M WiFi Bluetooth-compatible BLE Single Relay Module Suit for WB2 Secondary Development with Led Indicator Type-C/DC7-12V

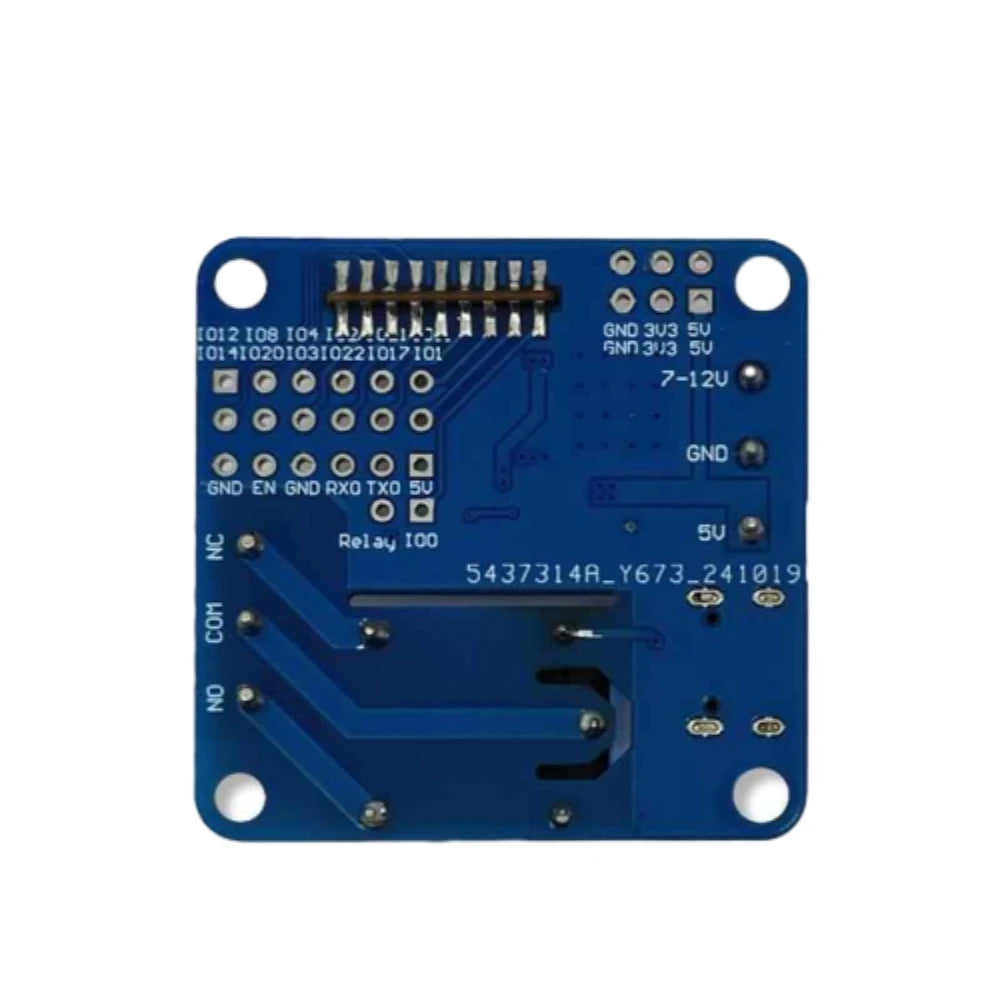

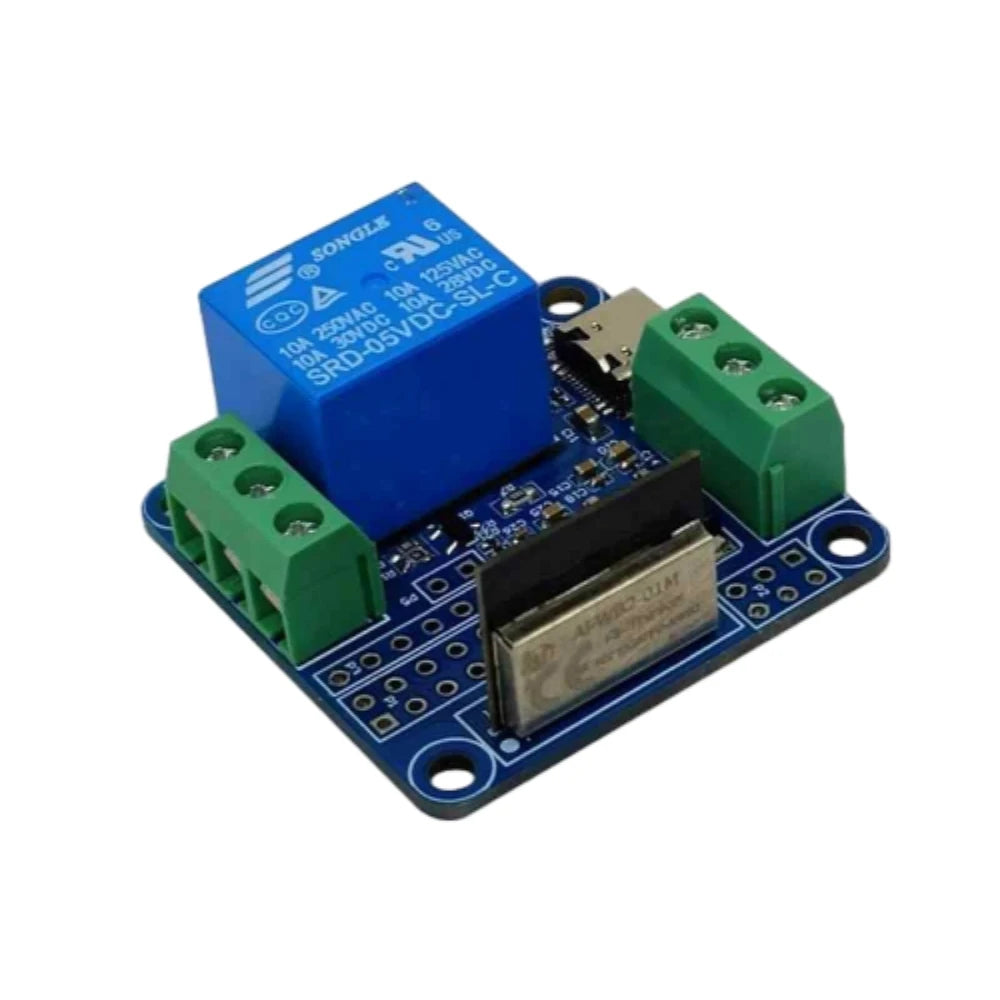

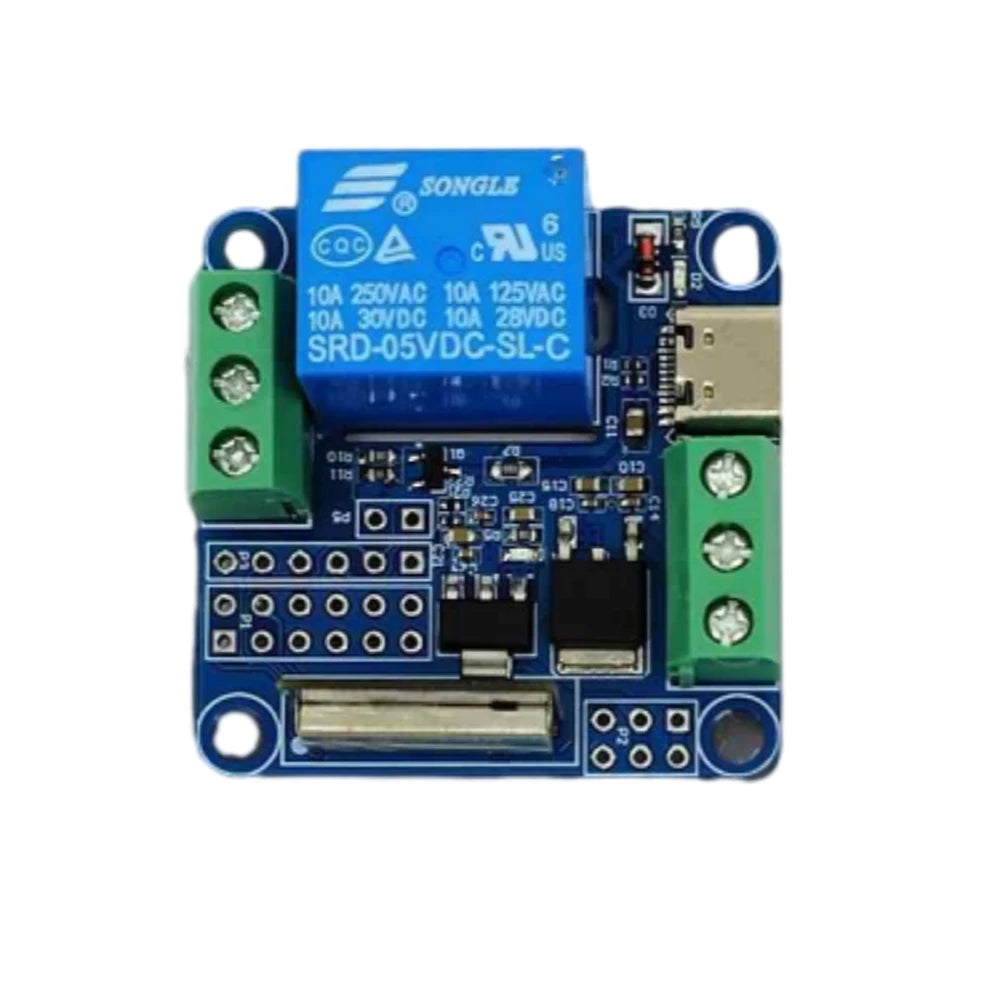

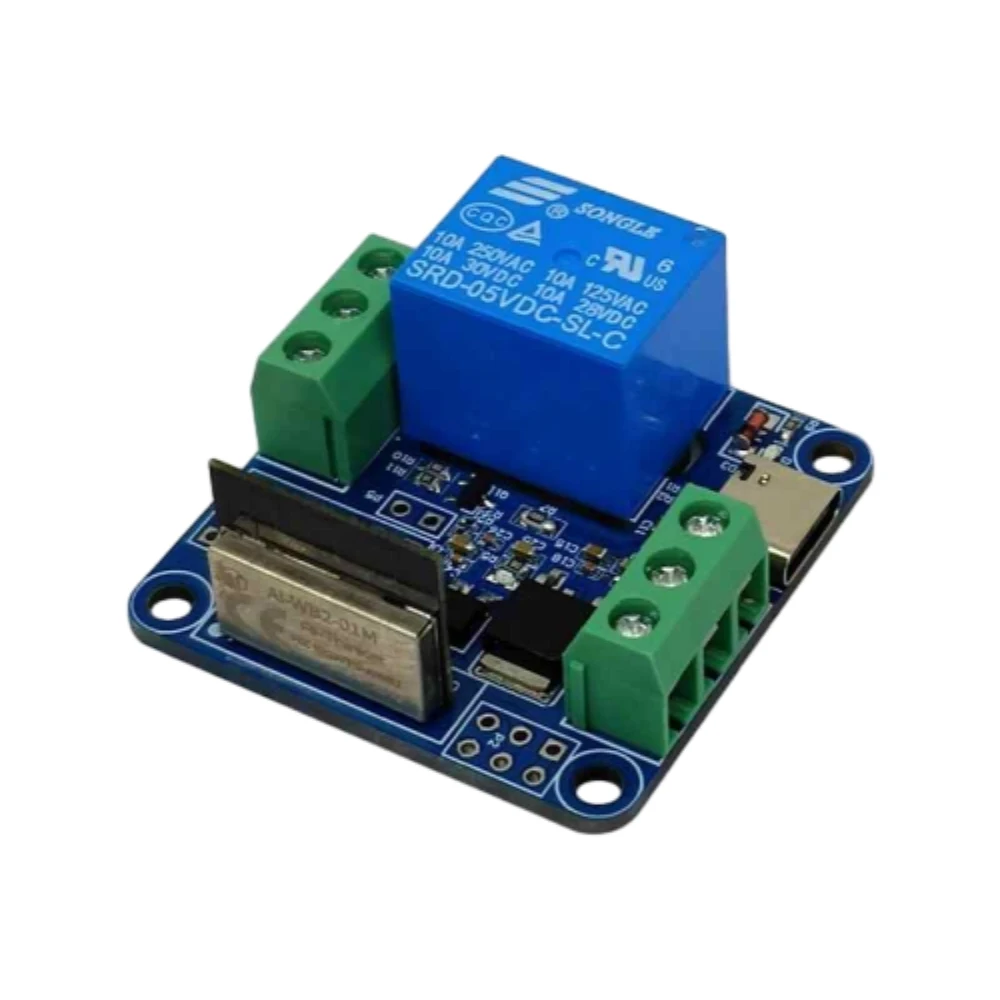

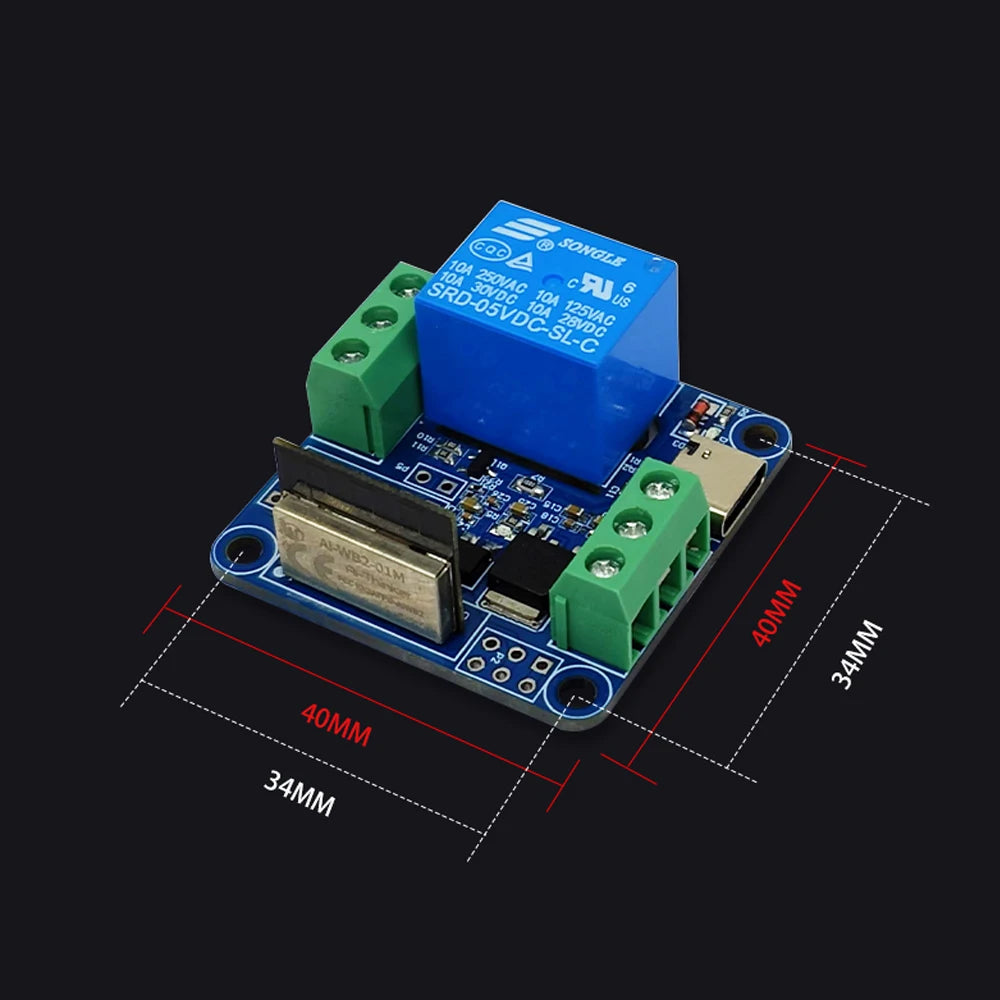

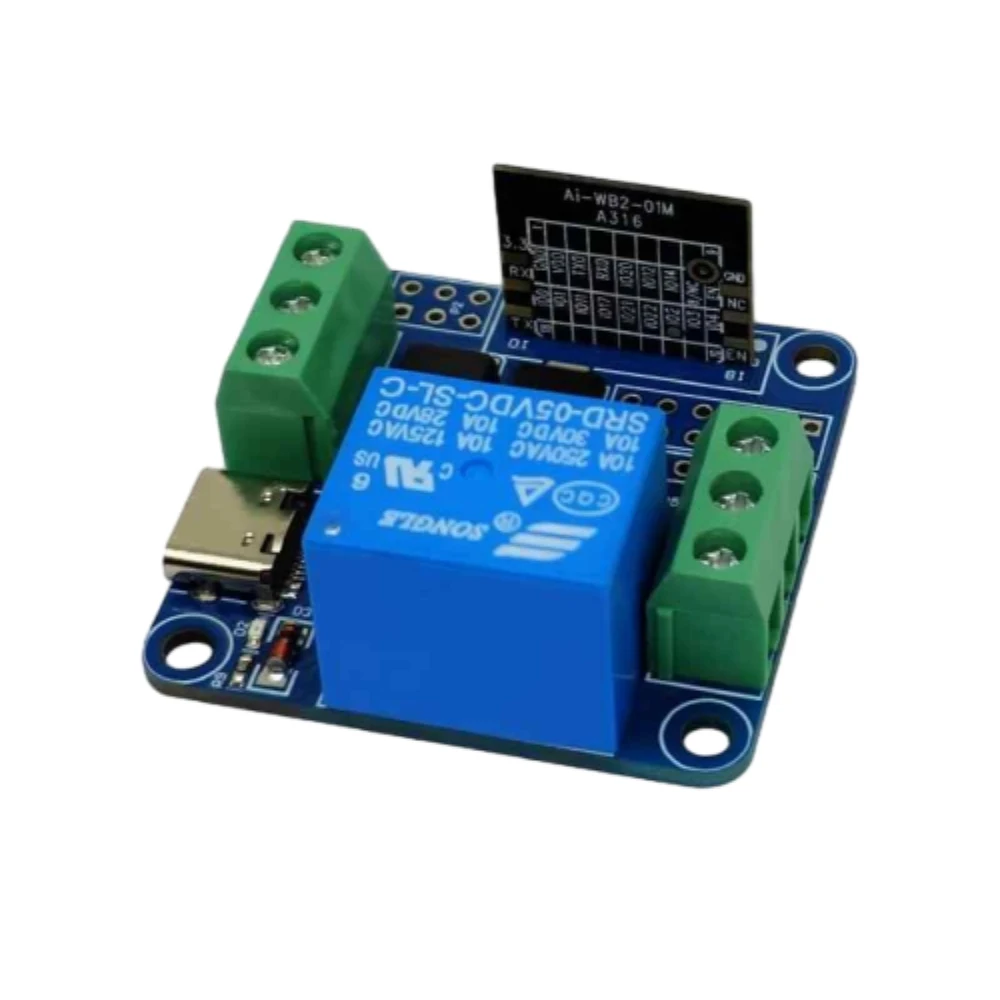

WB2-01M single-channel relay module is equipped with Ai-WB2-01 M module, UART download port and I/O port are fully LED out, on-board 5V relay and LED indicator, support Type-C/DC7-12V two power supply modes, suitable for WB2 secondary development learning, smart home wireless control and other occasions.
Specifications:
Onboard a new series of Ai-WB201M module, large capacity 2M Byte Flash;
The I/O port and UART program download port of the WB2-01M module are all drawn out to facilitate secondary development
The power supply can be Type-C or DC7-12V
WB2-01M supports the BLDevCube burning tool and provides factory firmware
Onboard single channel 5V relay, output switching signal, suitable for control of the control voltage of AC250V/DC30V within the load
Note:
1.Due to the light and screen difference, the item’s color may be slightly different from the pictures.
2.Please allow 1mm-1cm differences due to manual measurement.
Package includes:
1x Single Relay Board
Additional information
| Weight | 0.057 lbs |
|---|---|
| Default Title | Default Title |
